SSM2319
Rev. 0 | Page 6 of 20

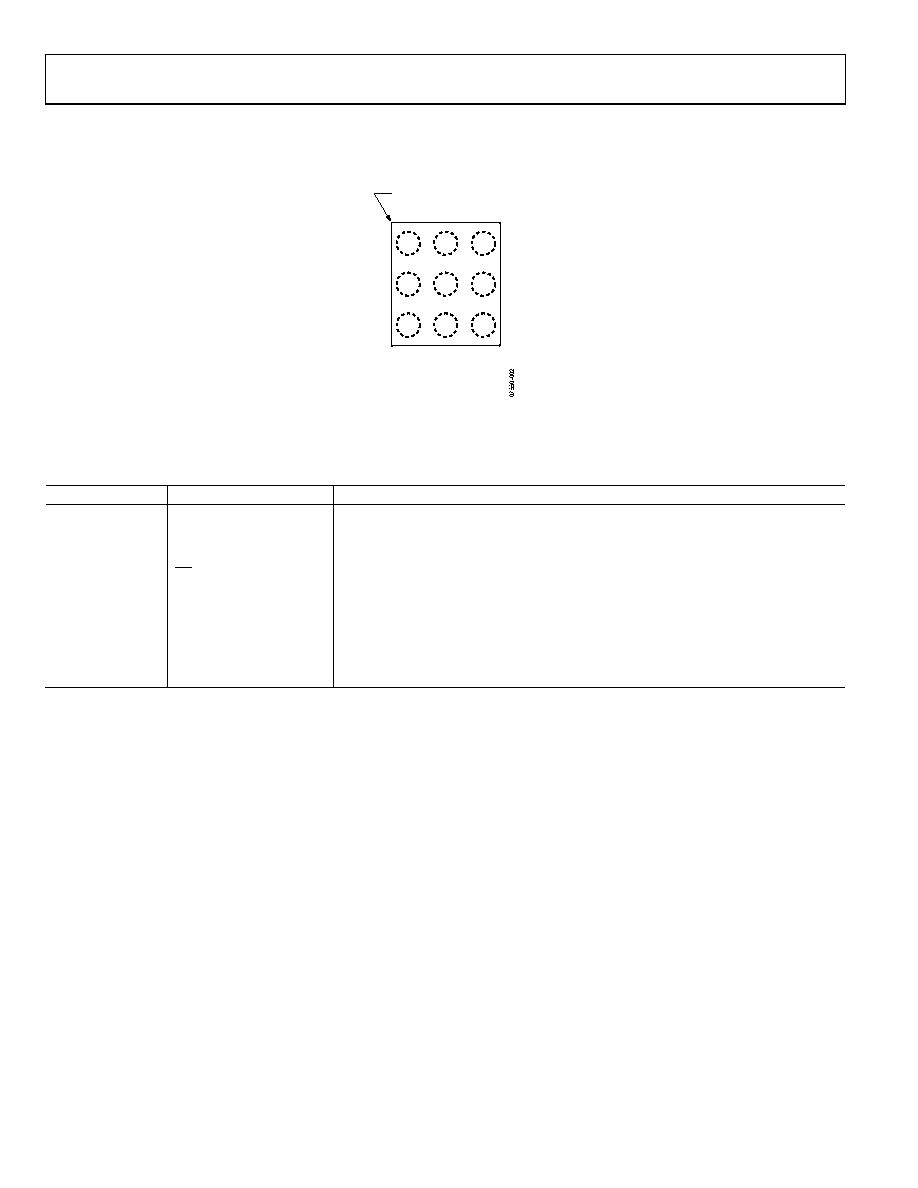

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
SSM2319
TOP VIEW
BALL SIDE DOWN
(Not to Scale)
BALL A1
CORNER
A
3
2
1
B
C
Figure 2. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1A
IN−
Inverting Input.
1B
IN+
Noninverting Input.
1C
GND
Ground.
2A
SD
Shutdown Input. Active low digital input.
2B
SYNCI
SYNC Input.
2C
VDD
Power Supply.
3A
SYNCO
SYNC Output.
3B
OUT−
Inverting Output.
3C
OUT+
Noninverting Output.
