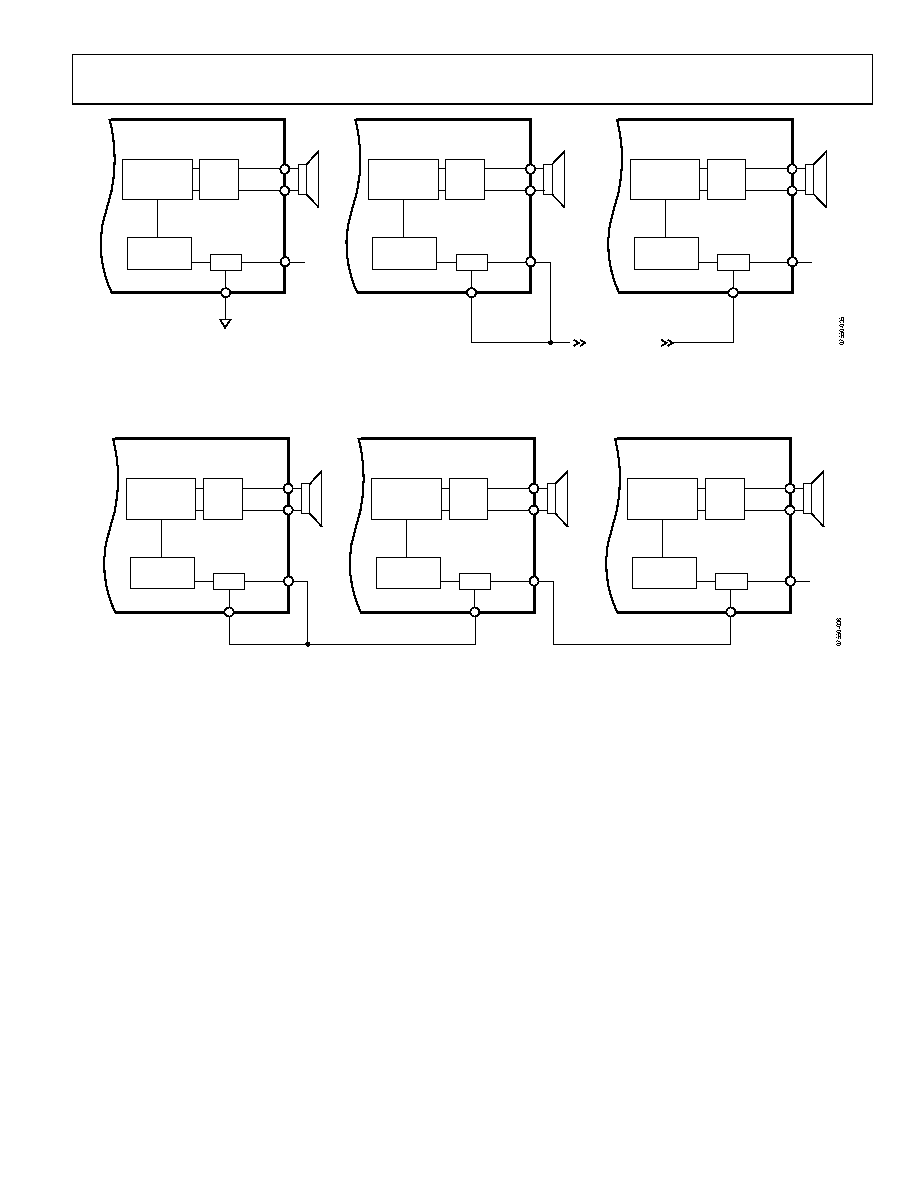

13 / 20 page  SSM2319 Rev. 0 | Page 13 of 20 OUT+ STANDALONE MASTER SLAVE OUT– MODULATOR (Σ-Δ) SYNCI SYNCO SYNC INPUT SYNC OUTPUT SSM2319 FET DRIVER SYNC INTERNAL OSCILLATOR OUT+ OUT– MODULATOR (Σ-Δ) SYNCI TO SLAVE NOTES 1. TRACE LENGTH FROM SYNCI TO SYNCO IS LESS THAN 1mm. SYNCO SYNC INPUT SYNC OUTPUT SSM2319 FET DRIVER SYNC INTERNAL OSCILLATOR OUT+ OUT– MODULATOR (Σ-Δ) SYNCI FROM MASTER SYNCO SYNC INPUT SYNC OUTPUT SSM2319 FET DRIVER SYNC INTERNAL OSCILLATOR Figure 34. Synchronization Operation Modes OUT+ SLAVE 1 MASTER SLAVE 2 OUT– MODULATOR (Σ-Δ) SYNCI SYNCO SYNC INPUT SYNC OUTPUT SSM2319 FET DRIVER SYNC INTERNAL OSCILLATOR OUT+ OUT– MODULATOR (Σ-Δ) SYNCI SYNCO SYNC INPUT SYNC OUTPUT SSM2319 FET DRIVER SYNC INTERNAL OSCILLATOR OUT+ OUT– MODULATOR (Σ-Δ) SYNCI SYNCO SYNC INPUT SYNC OUTPUT SSM2319 FET DRIVER SYNC INTERNAL OSCILLATOR Figure 35. Typical SYNC Master-Slave Daisy-Chain Configuration |
|
|
