VIPER20BSP 데이터시트(PDF) 15 Page - STMicroelectronics

부품명 VIPER20BSP
상세설명  SMPS PRIMARY I.C.
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

VIPER20BSP 데이터시트(HTML) 15 Page - STMicroelectronics

Back Button VIPER20BSP Datasheet HTML 9Page - STMicroelectronics VIPER20BSP Datasheet HTML 10Page - STMicroelectronics VIPER20BSP Datasheet HTML 11Page - STMicroelectronics VIPER20BSP Datasheet HTML 12Page - STMicroelectronics VIPER20BSP Datasheet HTML 13Page - STMicroelectronics VIPER20BSP Datasheet HTML 14Page - STMicroelectronics VIPER20BSP Datasheet HTML 15Page - STMicroelectronics VIPER20BSP Datasheet HTML 16Page - STMicroelectronics VIPER20BSP Datasheet HTML 17Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 15 / 17 page
background image
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A
4.30
4.80
0.169
0.189
C
1.17
1.37
0.046
0.054
D
2.40
2.80
0.094
0.110
E
0.35
0.55
0.014
0.022
F
0.60
0.80
0.024
0.031
G1
4.90
5.28
0.193
0.208
G2
7.42
7.82
0.292
0.308
H1
9.30
9.70
0.366
0.382
H2
10.40
0.409
H3
10.05
10.40
0.396
0.409
L
16.60
17.30
0.653
0.681
L1
14.60
15.22
0.575
0.599
L2
21.20
21.85
0.835
0.860
L3
22.20
22.82
0.874
0.898
L5
2.60
3.00
0.102
0.118
L6
15.10
15.80
0.594
0.622
L7
6.00
6.60
0.236
0.260
M
2.50
3.10
0.098
0.122
M1
7.56
8.16
0.298
0.321
R
0.50
0.020
V4
90
o
90
Diam.
3.70
3.90
0.146
0.154
A
C
L5
L2
L3
L6
L7
L
L1
D
R
M
M1
E
P023H3

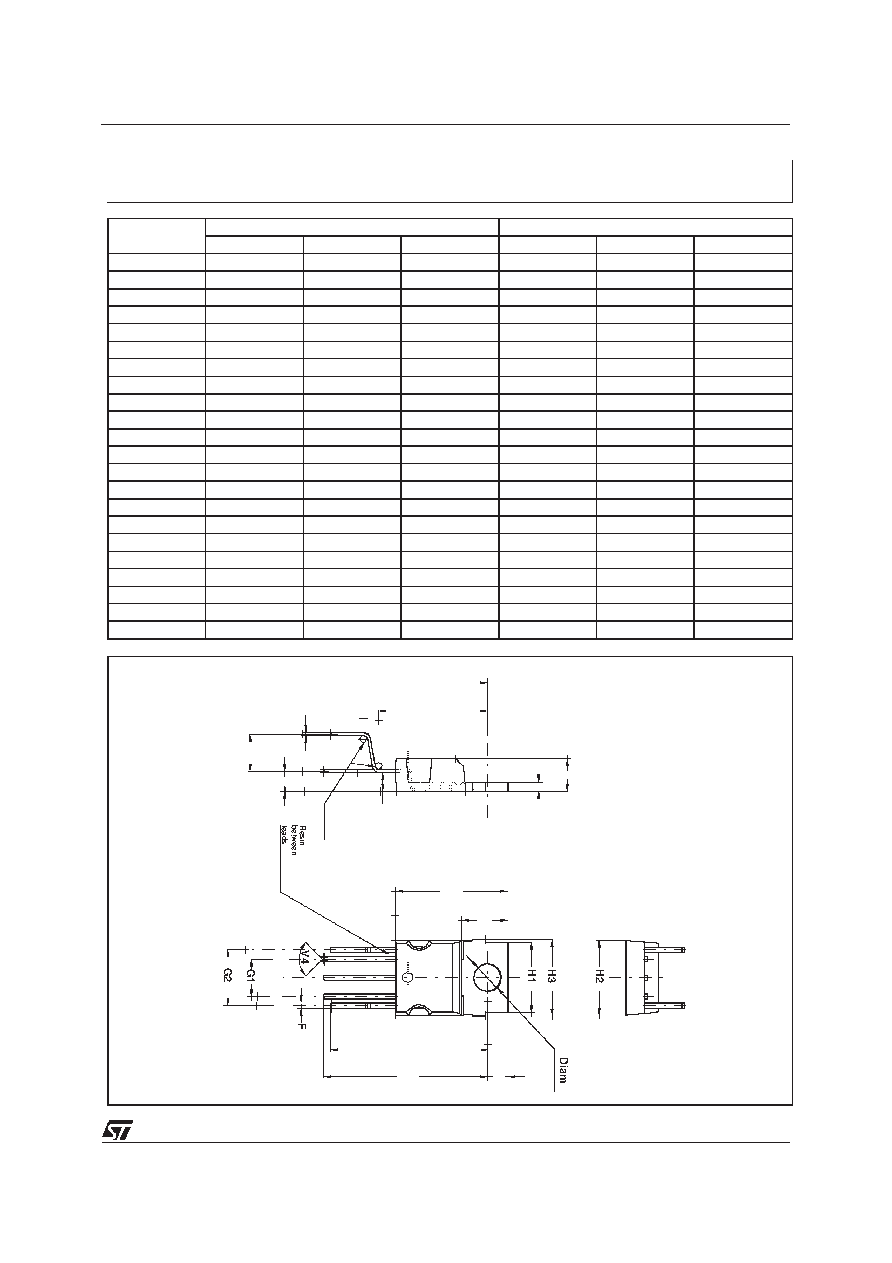

PENTAWATT HV (VERTICAL) MECHANICAL DATA
VIPer20B / VIPer20BSP
15/17
