VIPER20BSP 데이터시트(PDF) 6 Page - STMicroelectronics

부품명 VIPER20BSP
상세설명  SMPS PRIMARY I.C.
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

VIPER20BSP 데이터시트(HTML) 6 Page - STMicroelectronics

Back Button VIPER20BSP Datasheet HTML 2Page - STMicroelectronics VIPER20BSP Datasheet HTML 3Page - STMicroelectronics VIPER20BSP Datasheet HTML 4Page - STMicroelectronics VIPER20BSP Datasheet HTML 5Page - STMicroelectronics VIPER20BSP Datasheet HTML 6Page - STMicroelectronics VIPER20BSP Datasheet HTML 7Page - STMicroelectronics VIPER20BSP Datasheet HTML 8Page - STMicroelectronics VIPER20BSP Datasheet HTML 9Page - STMicroelectronics VIPER20BSP Datasheet HTML 10Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 6 / 17 page
background image

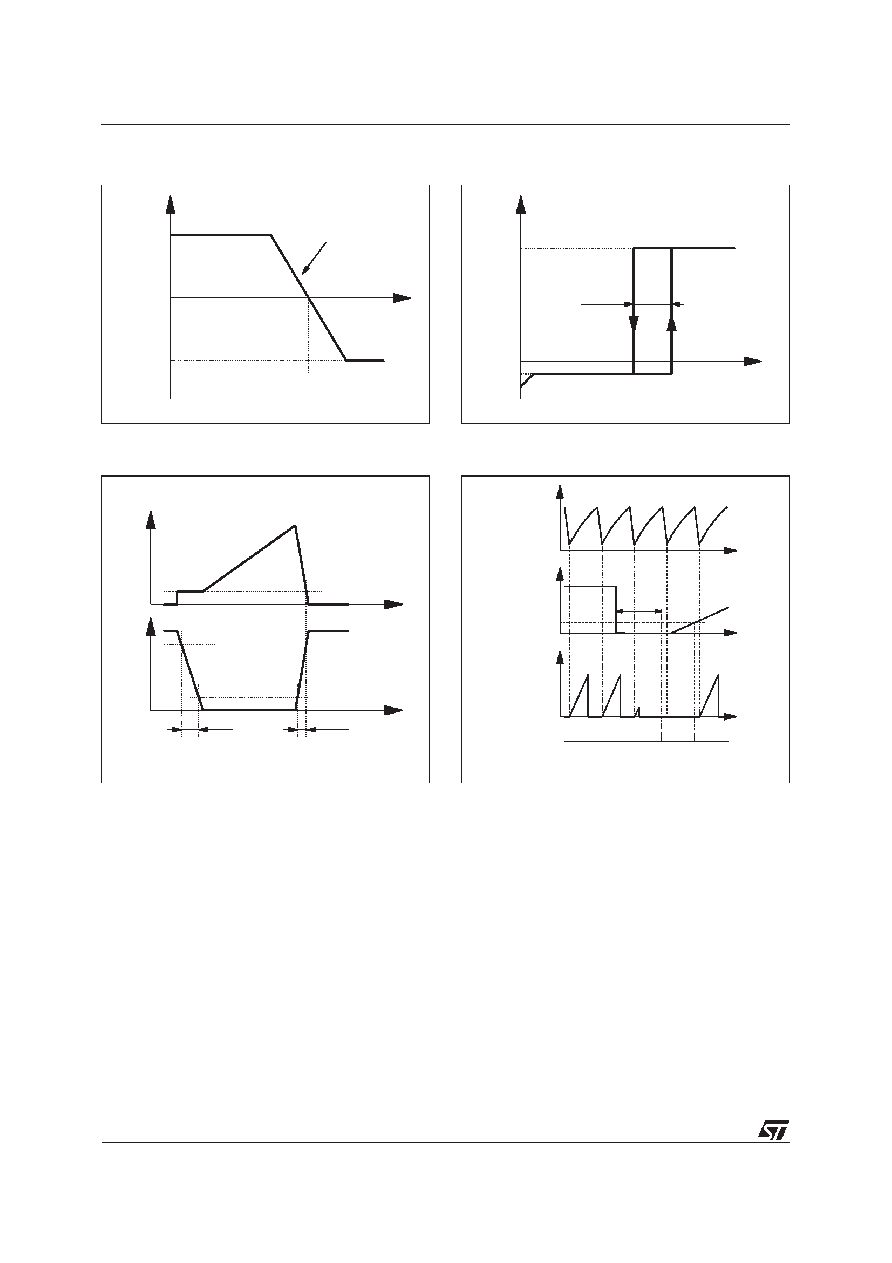

Figure 1:VDD Regulation Point
ICOMP
ICOMPHI
ICOMPLO
VDDreg
0
VDD
Slope =
Gm in mA/V
FC00150
Figure 3: Transition Time
ID
VDS
t
t
tf
tr
10% Ipeak
10% VD
90% VD
FC00160
Figure 2: Undervoltage Lockout
VDDon
IDDch
IDD0
VDD
VDDoff
VDS =70 V
Fsw = 0
IDD
VDDhyst
FC00170
Figure 4: Shut Down Action
VCOMP
VOSC
ID
t
tDISsu
t
t
ENABLE
DISABLE
ENABLE
VCOMPth
FC00060
VIPer20B / VIPer20BSP
6/17
