THS0842
DUAL-INPUT, 8-BIT, 40 MSPS LOW-POWER ANALOG-TO-DIGITAL CONVERTER
WITH SINGLE OR DUAL PARALLEL BUS OUTPUT
SLAS246 – DECEMBER 1999
21
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
ac coupled input
THS0842
+
–
CML
R
AIN–
R
R
R
C1
C2
VIN+
+
–
R
AIN+
R
R
R
C1
C2
VIN–
REFT
REFB
THS0842
CML
R
AIN+
C1
C2
VIN+
AIN–
C1
C2
VIN–
REFT
REFB
R

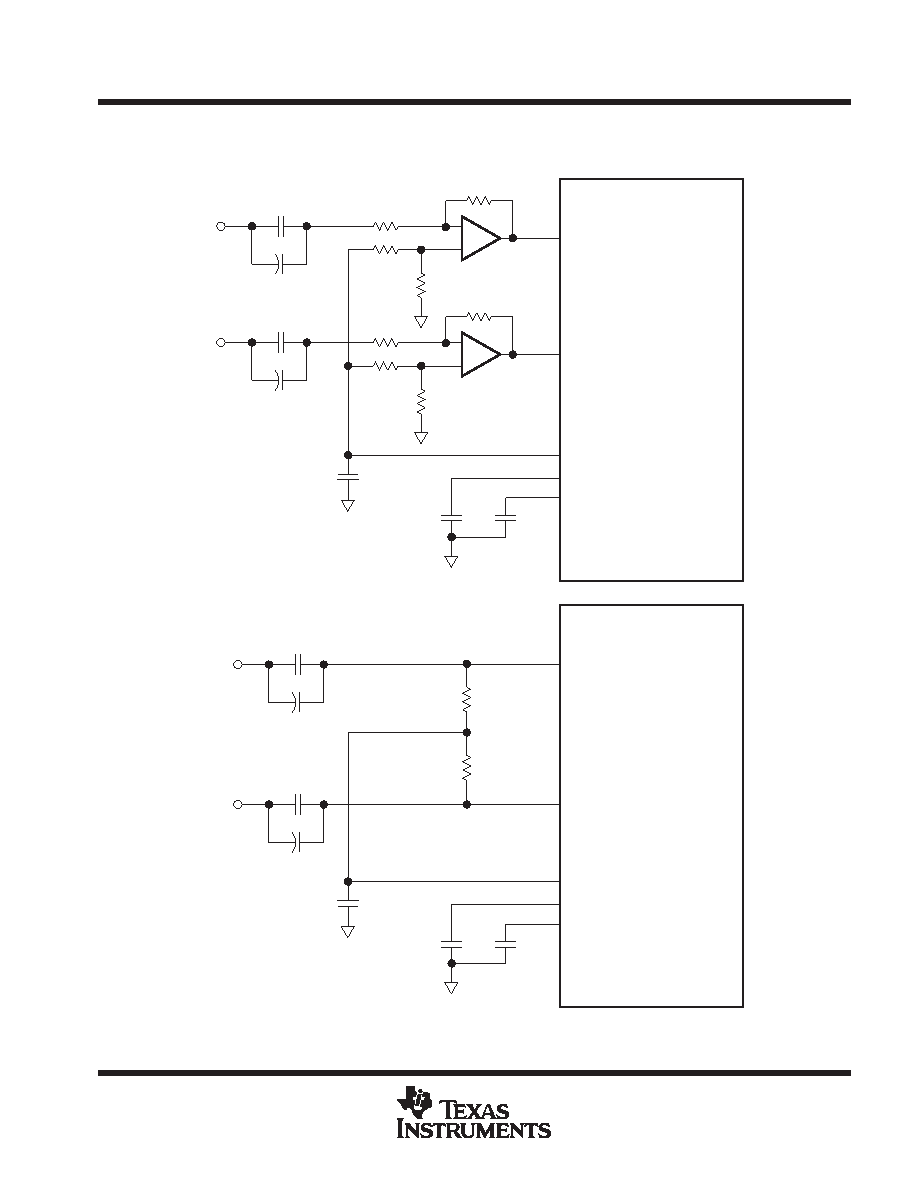

Figure 20. AC-Coupled Differential Input Circuits
