ADP1612/ADP1613

Rev. A | Page 24 of 28

PCB LAYOUT GUIDELINES

For high efficiency, good regulation, and stability, a well-

designed printed circuit board layout is required.

Use the following guidelines when designing printed circuit

boards (also see Figure 34 for a block diagram and Figure 3

for a pin configuration).

•

Keep the low ESR input capacitor, CIN (labeled as C7 in

Figure 76), close to VIN and GND. This minimizes noise

injected into the part from board parasitic inductance.

•

Keep the high current path from CIN (labeled as C7 in

Figure 76) through the L1 inductor to SW and GND as

short as possible.

•

Keep the high current path from VIN through L1, the

rectifier (D1) and the output capacitor, COUT (labeled as

C4 in Figure 76) as short as possible.

•

Keep high current traces as short and as wide as possible.

•

Place the feedback resistors as close to FB as possible to

prevent noise pickup. Connect the ground of the feedback

network directly to an AGND plane that makes a Kelvin

connection to the GND pin.

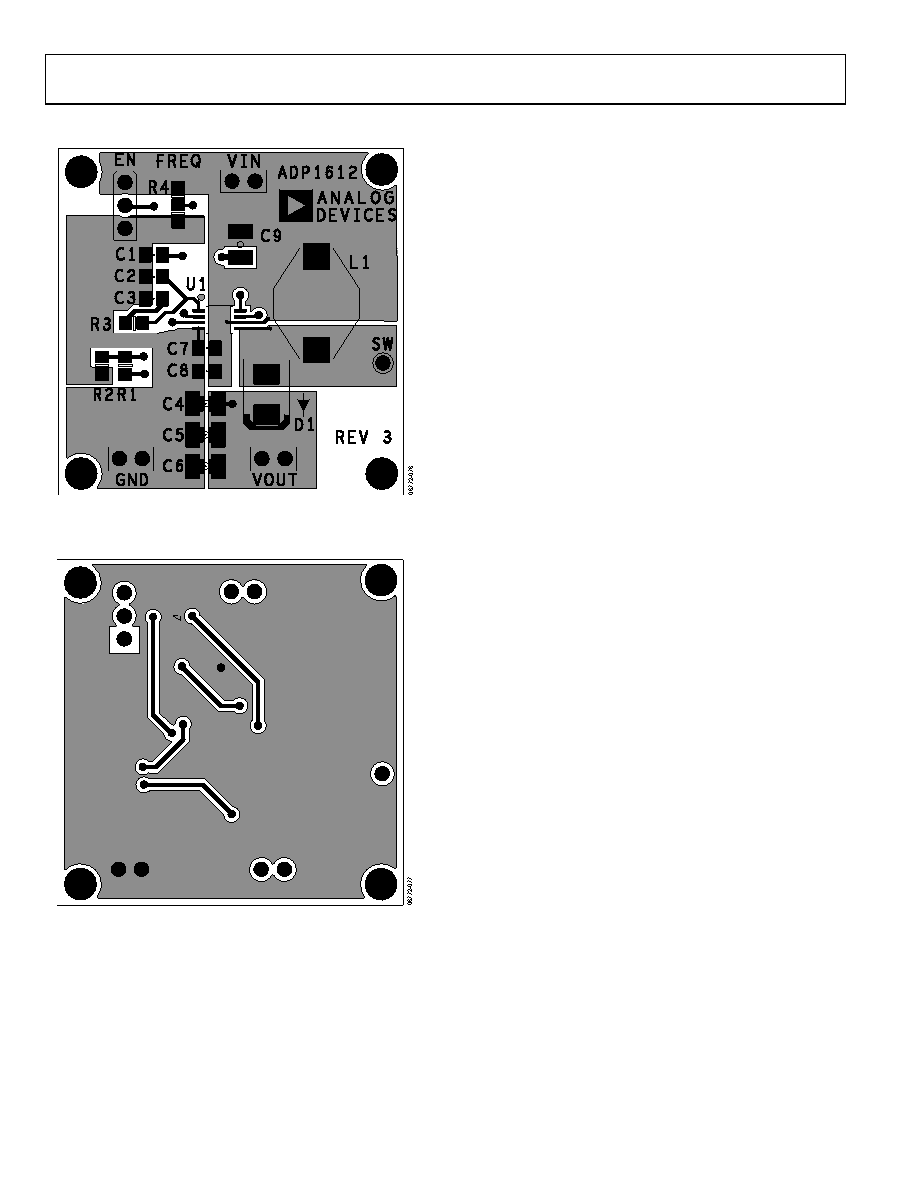

Figure 76. Example Layout for ADP1612/ADP1613 Boost Application

(Top Layer)

•

Place the compensation components as close as possible to

COMP. Connect the ground of the compensation network

directly to an AGND plane that makes a Kelvin connection

to the GND pin.

•

Connect the softstart capacitor, CSS (labeled as C1 in

Figure 76) as close to the device as possible. Connect the

ground of the softstart capacitor to an AGND plane that

makes a Kelvin connection to the GND pin.

•

Avoid routing high impedance traces from the compensa-

tion and feedback resistors near any node connected to SW

or near the inductor to prevent radiated noise injection.

Figure 77. Example Layout for ADP1612/ADP1613 Boost Application

(Bottom Layer)
