ADL5367

Rev. 0 | Page 6 of 24

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

PIN 1

INDICATOR

NOTES

1.

2

NC = NO CONNECT.

. EXPOSED PAD. MUST BE SOLDERED

TO GROUND.

1

VPMX

2

RFIN

3

RFCT

4

COMM

5

COMM

13 VGS1

14 VPSW

15 LOI2

12 VGS0

11 LOI1

TOP VIEW

(Not to Scale)

ADL5367

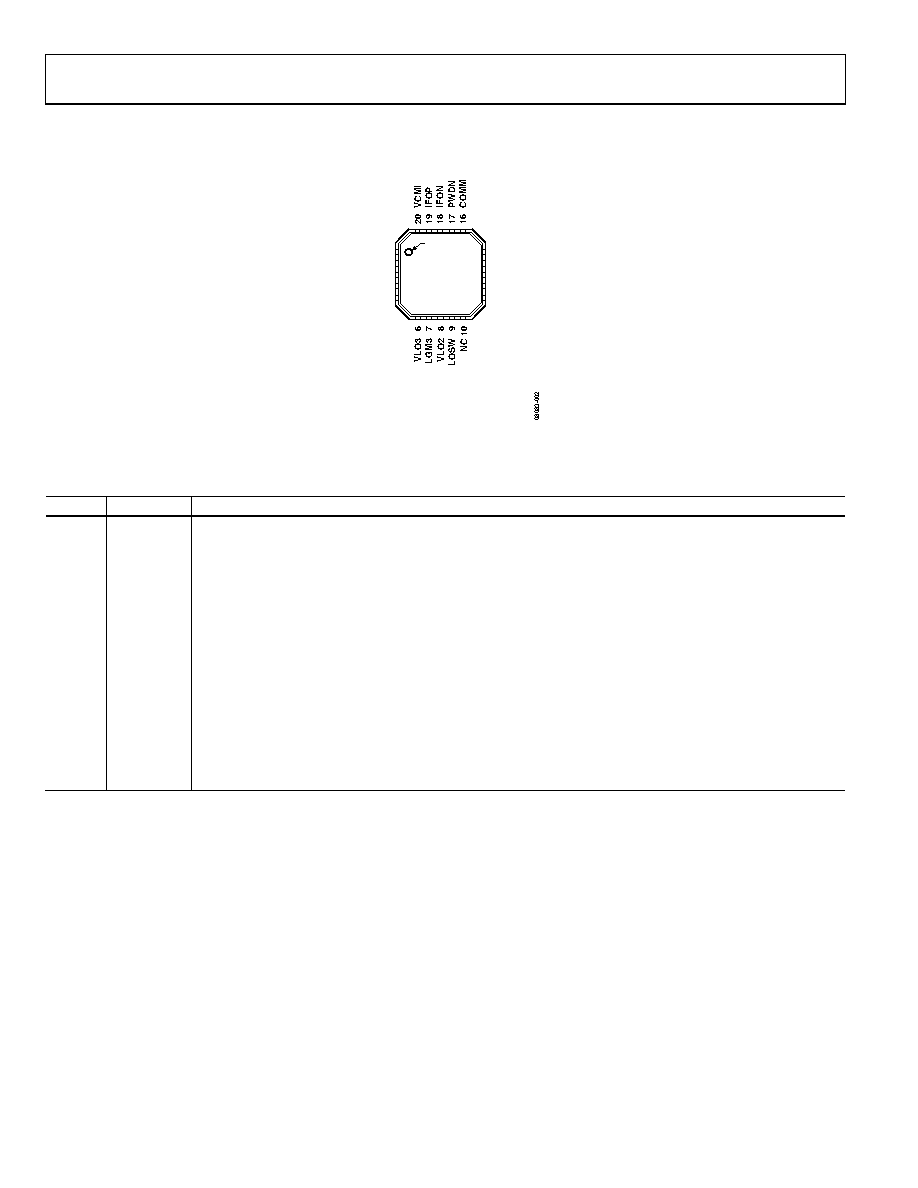

Figure 2. Pin Configuration

Table 6. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

VPMX

Positive Supply Voltage for IF Amplifier.

2

RFIN

RF Input. This pin must be ac-coupled.

3

RFCT

RF Balun Center Tap (AC Ground).

4, 5, 16

COMM

Device Common (DC Ground).

6, 8

VLO3, VLO2

Positive Supply Voltages for LO Amplifier.

7

LGM3

LO Amplifier Bias Control.

9

LOSW

LO Switch. LOI1 selected for 0 V, or LOI2 selected for 3 V.

10

NC

No Connect.

11, 15

LOI1, LOI2

LO Inputs. This pin must be ac-coupled.

12, 13

VGS0, VGS1

Mixer Gate Bias Controls. 3 V logic. Ground these pins for nominal setting.

14

VPSW

Positive Supply Voltage for LO Switch.

17

PWDN

Power Down. Connect this pin to ground for normal operation or connect this pin to 3.0 V for disable mode.

18, 19

IFON, IFOP

Differential IF Outputs.

20

VCMI

No Connect. This pin can be grounded.

EPAD (EP)

Exposed pad must be soldered to ground.
