ADL5367

Rev. 0 | Page 15 of 24

UPCONVERSION

TA = 25°C, fIF = 153 MHz, fLO = 1697 MHz, LO power = 0 dBm, RF power = 0 dBm, VGS0 = VGS1 = 0 V, and ZO = 50 Ω, unless otherwise noted.

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

700

750

800

850

900

950

1000 1050 1100 1150 1200

RF FREQUENCY (MHz)

TA = +85°C

TA = –40°C

TA = +25°C

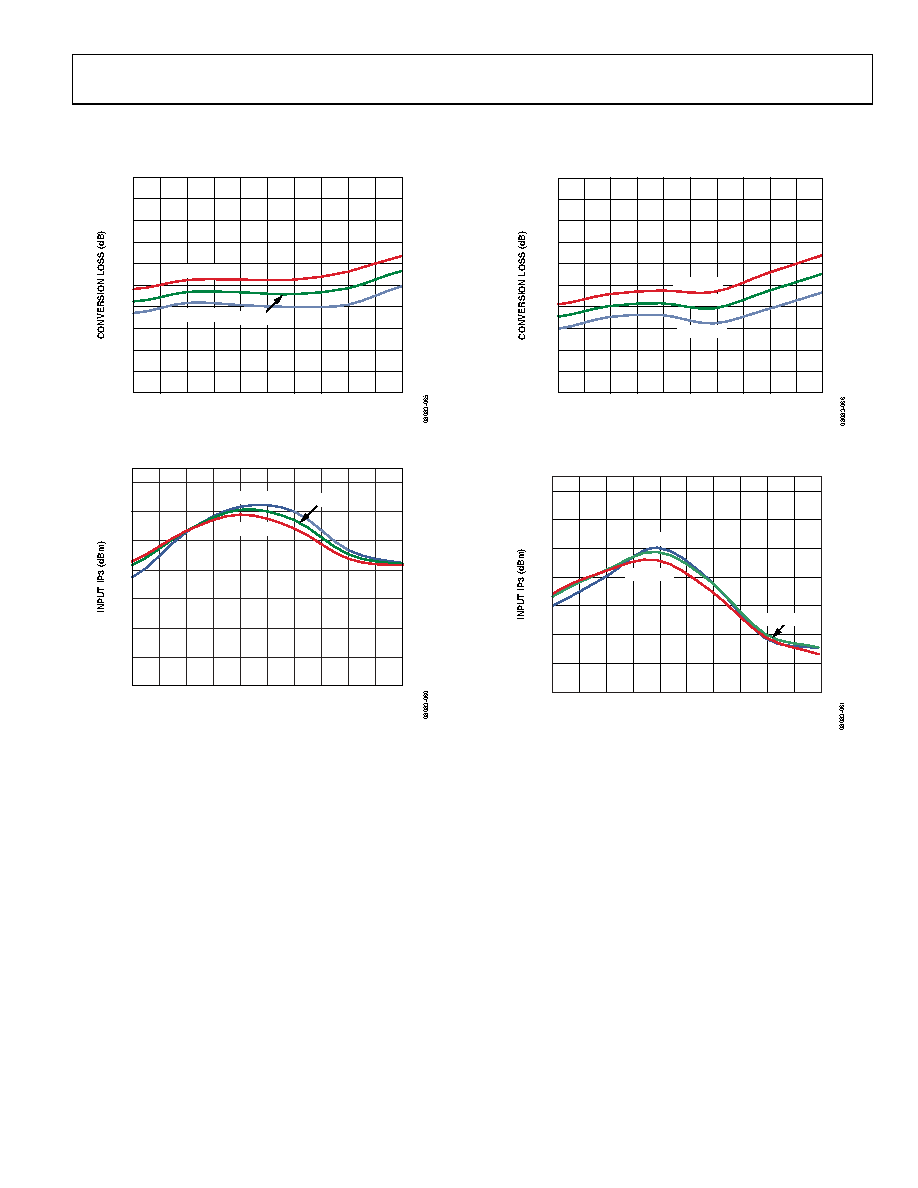

Figure 45. Power Conversion Loss vs. RF Frequency, VS = 5 V, Upconversion

700

750

800

850

900

950

1000 1050 1100 1150 1200

RF FREQUENCY (MHz)

TA = +85°C

TA = –40°C

TA = +25°C

Figure 46. Input IP3 vs. RF Frequency, VS = 5 V, Upconversion

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

700

750

800

850

900

950

1000 1050 1100 1150 1200

RF FREQUENCY (MHz)

TA = +85°C

TA = –40°C

TA = +25°C

Figure 47. Power Conversion Loss vs. RF Frequency at 3.3 V, Upconversion

700

750

800

850

900

950

1000 1050 1100 1150 1200

RF FREQUENCY (MHz)

TA = +85°C

TA = –40°C

TA = +25°C

Figure 48. Input IP3 vs. RF Frequency at 3.3 V, Upconversion
