BL-R3132H datasheet(1/2 Pages) BRIGHT

부품명	BL-R3132H

상세설명	Chip material: GaAsP/GaP

PDF	2 Pages

Scroll/Zoom	100%

제조업체	BRIGHT [BRIGHT LED ELECTRONICS CORP]

홈페이지	http://www.brightled.co.kr

Logo

1 / 2 page

B

BR

RIIG

GH

HT

T L

LE

ED

D E

EL

LE

EC

CT

TR

RO

ON

NIIC

CS

S C

CO

OR

RP

P..

B

BL

L--R

R3

31

13

32

2H

H

Ver.1.0 Page 1 of 2

SINCE 1981

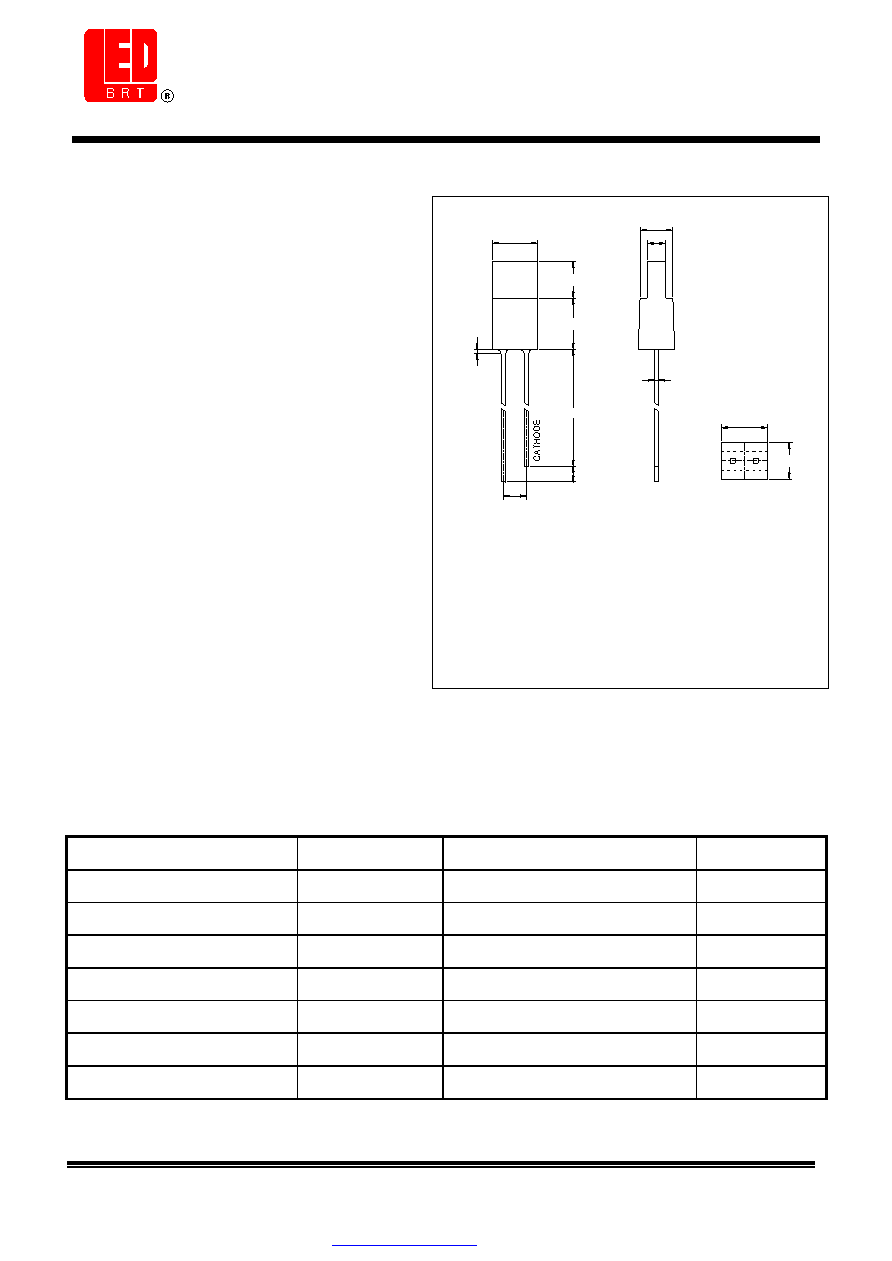

5.6(.220)

5.0(.197)

4.0(.157)

0.5(.020) .TYP

3.6(.142)

2.0(.079)

1.5(.059)

MAX.

1.0(.039) MIN.

40.0(1.57) MIN.

2.54(.10)

NOM.

5.1(.201)

4.0(.157)

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25mm (0.01”) unless otherwise specified.

3. Lead spacing is measured where the leads emerge from

the package.

4. Specifications are subject to change without notice.

● Features:

●Package dimensions:

1. Chip material: GaAsP/GaP

2. Emitted color : Yellow

3. Lens Appearance : Yellow Diffused

4. Low power consumption.

5. Most suitable for use like level indicator.

6. Excellent uniformity of light emittance.

7. Long life solid state reliability.

8. Compatible.

● Applications:

1. TV set

2. Monitor

3. Telephone

4. Computer

5. Circuit board

● Absolute maximum ratings(Ta=25℃)

Parameter

Symbol

Rating

Unit

Power Dissipation

Pd

80

mW

Forward Current

IF

30

mA

Peak Forward Current*

1

IFP

150

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-40℃~80℃

Storage Temperature

Tstg

-40℃~85℃

Soldering Temperature

Tsol

260℃(for 5 seconds)

*

1Condition for I

FP is pulse of 1/10 duty and 0.1msec width.
