BL-R3132H 데이터시트(PDF) 2 Page - BRIGHT LED ELECTRONICS CORP

부품명 BL-R3132H
상세설명  Chip material: GaAsP/GaP
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  BRIGHT [BRIGHT LED ELECTRONICS CORP]
홈페이지  http://www.brightled.co.kr
Logo BRIGHT - BRIGHT LED ELECTRONICS CORP

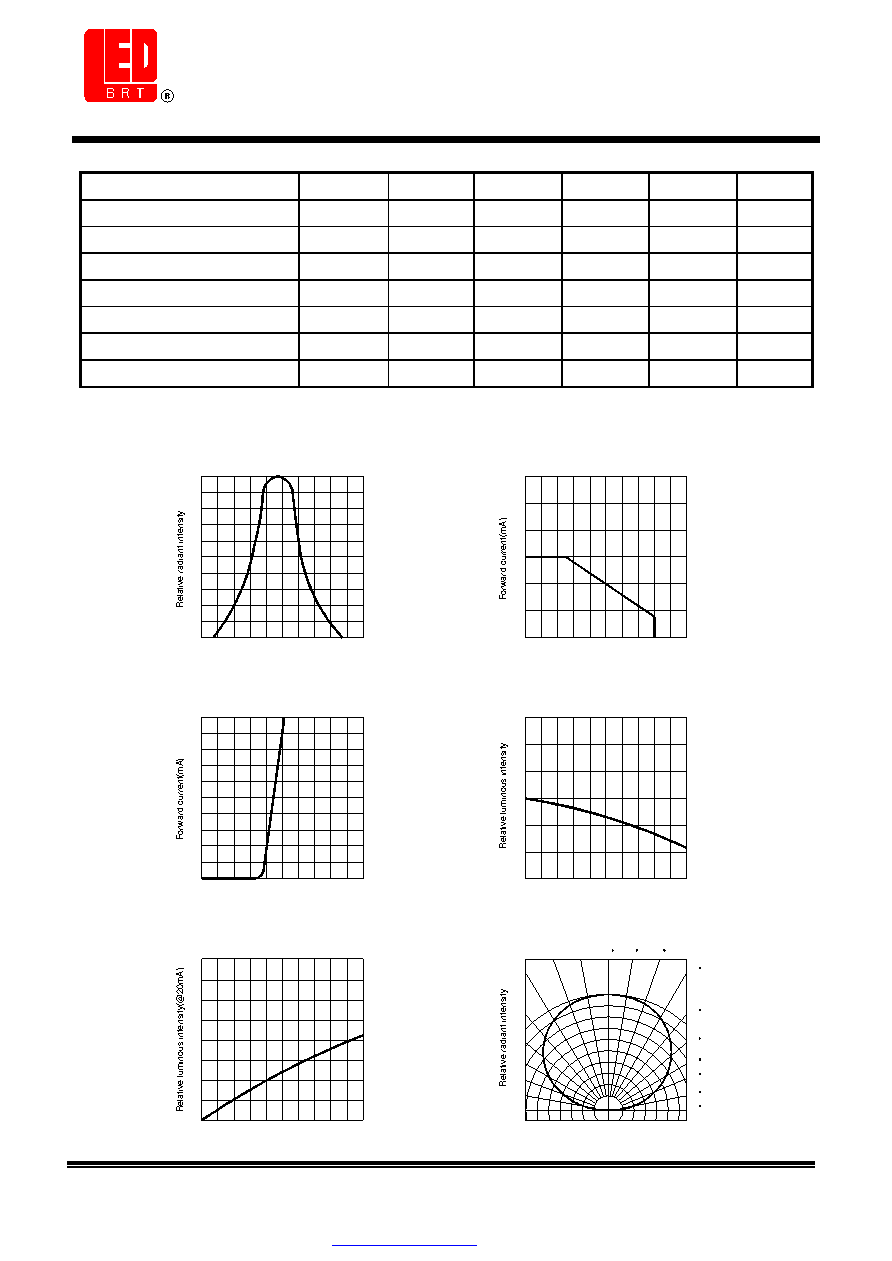

BL-R3132H 데이터시트(HTML) 2 Page - BRIGHT LED ELECTRONICS CORP

  BL-R3132H Datasheet HTML 1Page - BRIGHT LED ELECTRONICS CORP BL-R3132H Datasheet HTML 2Page - BRIGHT LED ELECTRONICS CORP
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
B
BR
RIIG
GH
HT
T L
LE
ED
D E
EL
LE
EC
CT
TR
RO
ON
NIIC
CS
S C
CO
OR
RP
P..
B
BL
L--R
R3
31
13
32
2H
H
Ver.1.0 Page 2 of 2
SINCE 1981
● Electrical and optical characteristics(Ta=25℃)
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Forward Voltage
VF
IF=20mA
-
2.1
2.6
V
Luminous Intensity
Iv
IF=20mA
-
4.5
-
mcd
Reverse Current
IR
VR=5V
-
-
100
µA
Peak Wave Length
λp
IF=20mA
-
585
-
nm
Dominant Wave Length
λd
IF=20mA
582
-
595
nm
Spectral Line Half-width
Δλ
IF=20mA
-
35
-
nm
Viewing Angle
2
θ
1/2
IF=20mA
-
125
-
deg
● Typical electro-optical characteristics curves
vs. Ambient temperature
3.0
0
1.0
2.0
20
10
30
40
50
4.0
0
20
10
30
40
50
2
1
35
4
535
0
0.5
1.0
585
635
0.5
-40
0
-20
0
20
2.0
1.0
1.5
2.5
3.0
40
60
0
20
10
10
30
20
40
60
40
50
60
100
80
Forward current (mA)
Fig.5 Relative luminous intensity
vs. Forward current
Forward voltage(V)
0.7
0.9
0.8
1.0
0.5
0.3
0.1
0.2
70
90
80
0.4
0.6
50
60
40
Ambient temperature Ta()
℃
Fig.6 Radiation diagram
0
10
30
20
Fig.3 Forward current vs. Forward voltage
Fig.1 Relative intensity vs. Wavelength
Wavelength
λ (nm)
Fig.4 Relative luminous intensity
Fig.2 Forward current derating curve
vs. Ambient temperature
Ambient temperature Ta()
℃
