TPR0441BX–SMS–09/09
ATVaultIC460

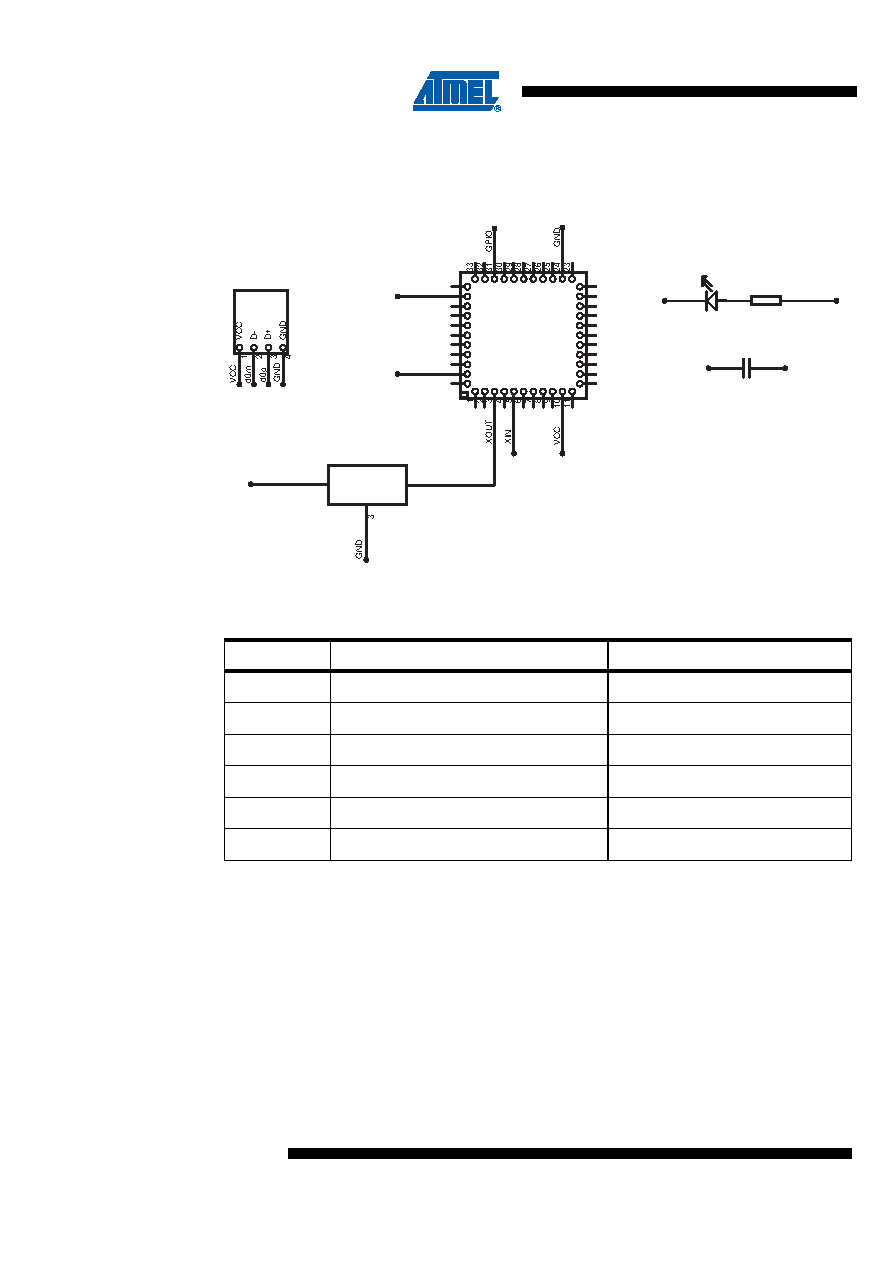

Figure 3-8.
USB Token schematic - Reference design
Table 3-8.
Bill Of Material - Reference design
Name
Designation
Constructor Ref
S1
Microcontrollor in QFN44 package
Atmel ATVaultIC460
RES
48 Mhz ceramic resonator
Murata CSTCW48M0X11xx
J1
Plug USB Type A
Molex 48037-2000
C1
100 nF capacitance
-
R1
1K resistor
-
D1
Diode LED
KP-3216MGC
VCC
GND
VCC
GPIO
XIN
d0m
d0p
39
44
36
43
38
42
22
34
21
20
41
19
18
37
17
16
40
15
14
35
13
12
S1
QFN44
QFNSocket
C1
100nF
R1
1K
D1
J1
GND
XOUT
2
XIN
1
RES
Atmel
ATVaultIC460
