PIC16F526-I/P 데이터시트(PDF) 4 Page - Microchip Technology

부품명 PIC16F526-I/P
상세설명  14-Pin, 8-Bit Flash Microcontroller
PDF  122 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  MICROCHIP [Microchip Technology]
홈페이지  http://www.microchip.com
Logo MICROCHIP - Microchip Technology

PIC16F526-I/P 데이터시트(HTML) 4 Page - Microchip Technology

  PIC16F526-I/P Datasheet HTML 1Page - Microchip Technology PIC16F526-I/P Datasheet HTML 2Page - Microchip Technology PIC16F526-I/P Datasheet HTML 3Page - Microchip Technology PIC16F526-I/P Datasheet HTML 4Page - Microchip Technology PIC16F526-I/P Datasheet HTML 5Page - Microchip Technology PIC16F526-I/P Datasheet HTML 6Page - Microchip Technology PIC16F526-I/P Datasheet HTML 7Page - Microchip Technology PIC16F526-I/P Datasheet HTML 8Page - Microchip Technology PIC16F526-I/P Datasheet HTML 9Page - Microchip Technology Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 122 page
background image
PIC16F526
DS41326D-page 4
 2010 Microchip Technology Inc.

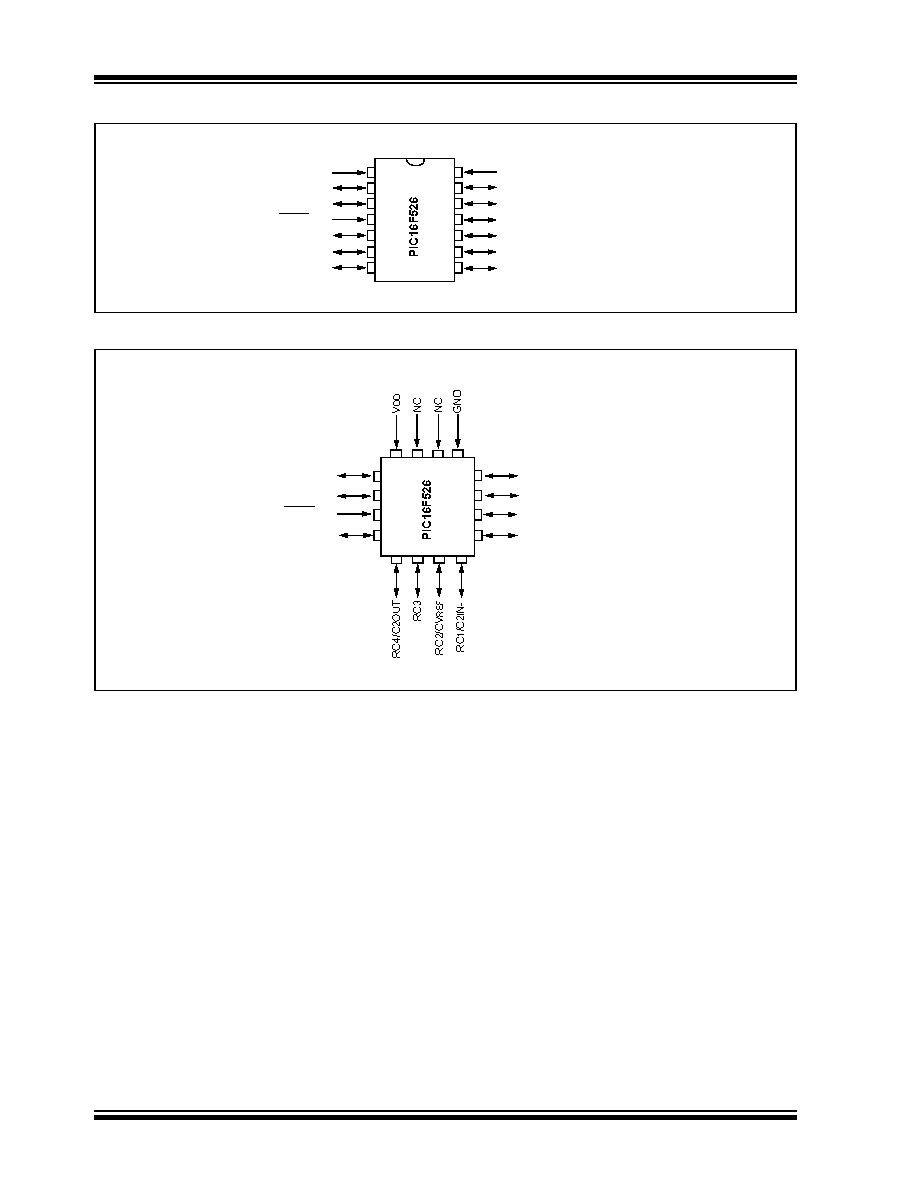

FIGURE 1-1:
14-PIN PDIP, SOIC, TSSOP DIAGRAM
FIGURE 1-2:
16-PIN QFN DIAGRAM
VDD
RB5/OSC1/CLKIN
RB4/OSC2/CLKOUT
RB3/MCLR/VPP
RC5/T0CKI
RC4/C2OUT
RC3
VSS
RB0/C1IN+/AN0/ICSPDAT
RB1/C1IN-/AN1/ICSPCLK
RB2/C1OUT/AN2
RC0/C2IN+
RC1/C2IN-
RC2/CVREF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
RC5/T0CKI
RB4/OSC2/CLKOUT
RB3/MCLR/VPP
RB5/OSC1/CLKIN
RB0/C1IN+/AN0/ICSPDAT
RB1/C1IN-/AN1/ICSPCLK
RB2/C1OUT/AN2
RC0/C2IN+
