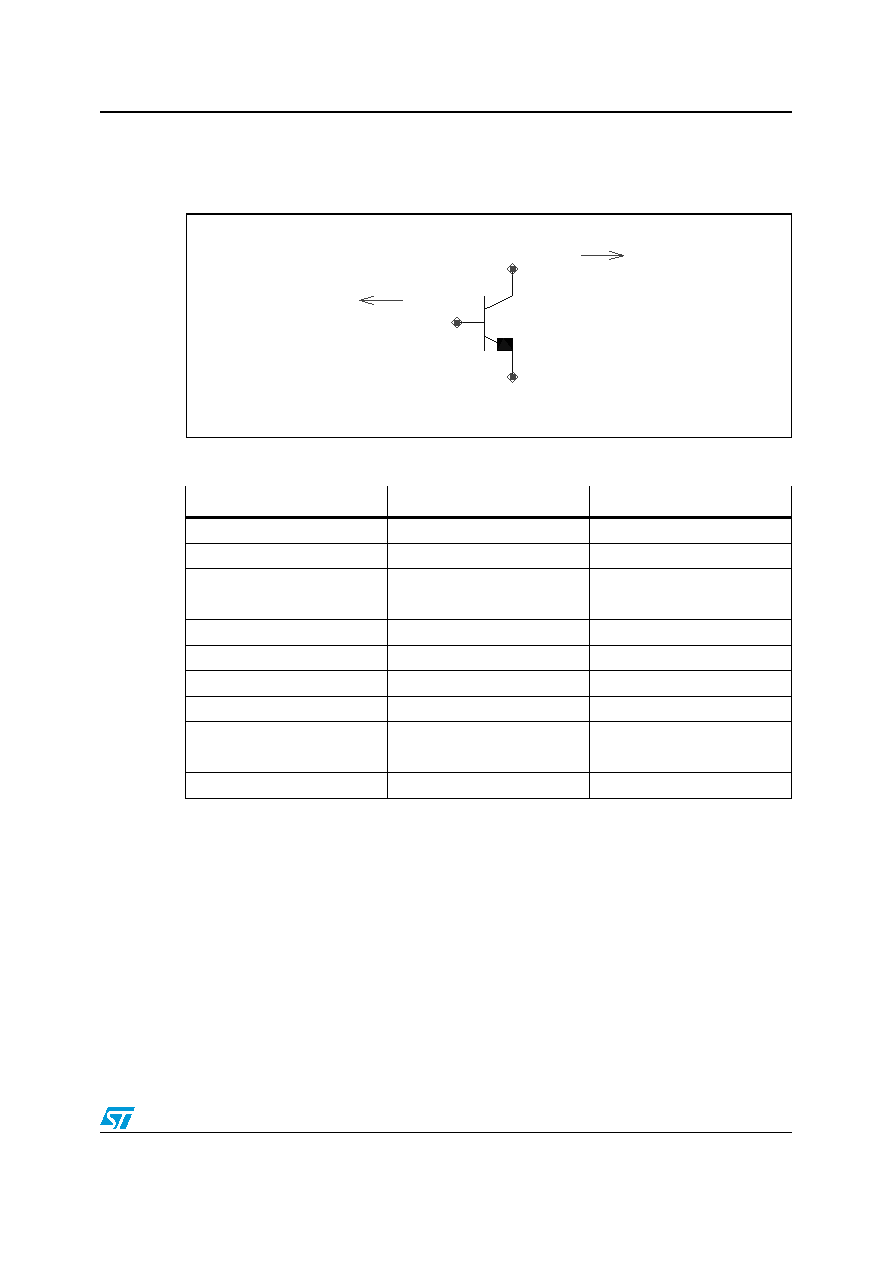

START499D
Impedance
Doc ID 14496 Rev 4
5/18
3
Impedance
Figure 2.
Current conventions
Table 6.
Impedance data
Frequency (MHz)
ZBS (Ω)ZCL(Ω)
800
16.58 - j4.04
17.95 - j5.49
820
15.81 - j3.81
16.28 - j5.11
840
15.04 - j3.53
14.77 - j4.67
860
14.31 - j3.21
13.44 - j4.15
880
13.61 - j2.83
12.25 - j3.54
900
12.93 - j2.44
11.19 - j2.90
920
12.27 - j2.01
10.24 - j2.22
940
11.66 - j1.53
9.40 - j1.52
960
11.06 - j1.04
8.65 - j0.81
980
10.52 - j0.54
7.99 - j0.11
1000
9.98 + j0.02
7.38 + j0.62
ZS
ZL
C
B
E
