Real time clock and calendar

17. Handling information

All input and output pins are protected against ElectroStatic Discharge (ESD) under

normal handling. When handling Metal-Oxide Semiconductor (MOS) devices ensure that

all normal precautions are taken as described in JESD625-A, IEC 61340-5 or equivalent

standards.

Table 32.

Solder bump description for all PCF8564ACX types

All x/y coordinates represent the position of the center of each bump with respect to the center

(x/y = 0) of the chip; see Figure 28.

Symbol

Bump

X (

μm)

Y (

μm)

Description

OSCI

−368

738

oscillator input

OSCO

−368

188

oscillator output

INT

−368

−262

open-drain interrupt output (active LOW)

VSS

−368

−712

ground (substrate)

SDA

362

−712

serial data I/O

SCL

362

−262

serial clock input

CLKOUT

362

188

CMOS push-pull clock output

VDD

456

supply

CLKOE

362

738

CLKOUT output enable

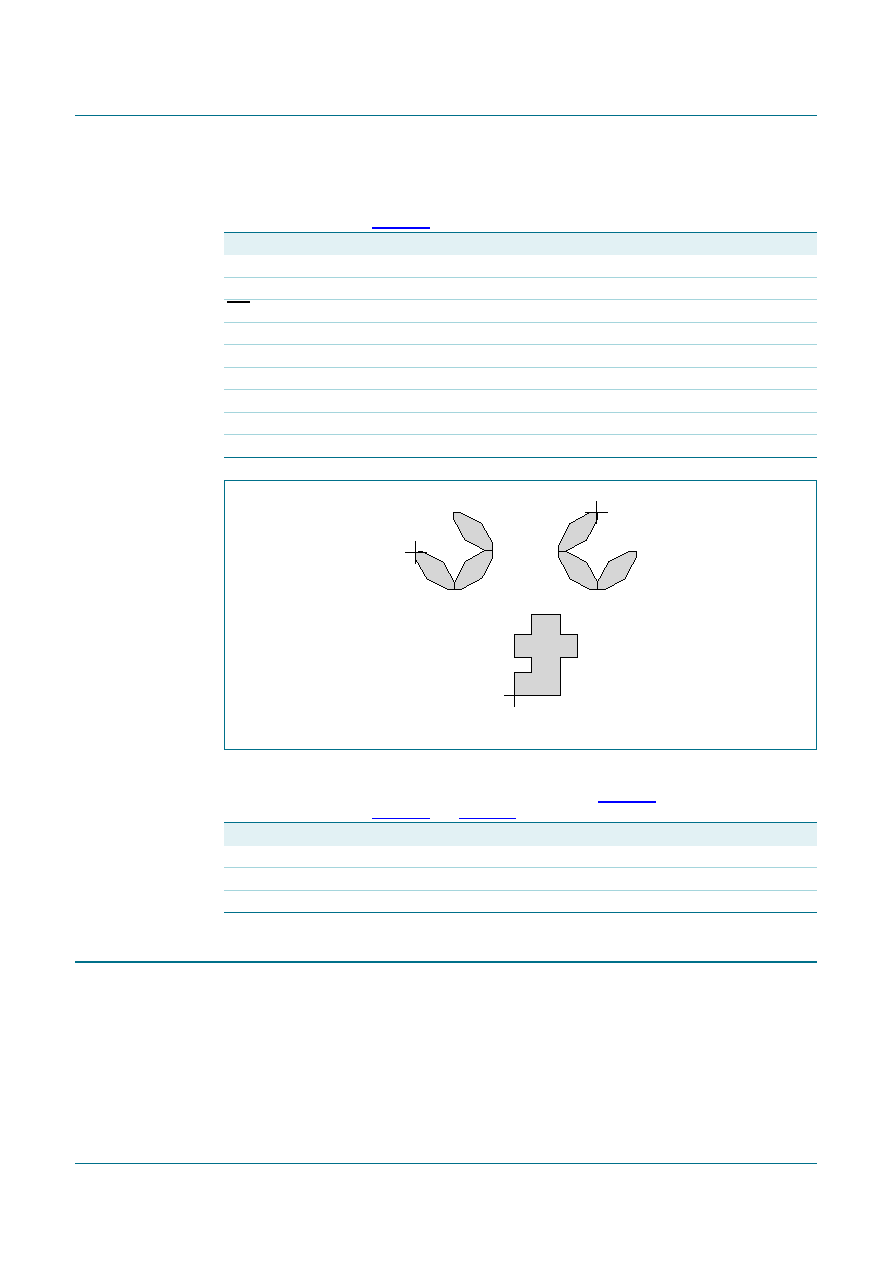

Fig 29. Alignment marks of all PCF8564A types

Table 33.

Alignment marks of all PCF8564A types

All x/y coordinates represent the position of the REF point (see Figure 29) with respect to the center

(x/y = 0) of the chip; see Figure 27 and Figure 28.

Alignment markers

Size (

μm)

X (

μm)

Y (

μm)

100

× 100

465.2

−826.3

100

× 100

−523.0

890.0

× 117

−569.9

−885.5

REF

013aaa036

REF
