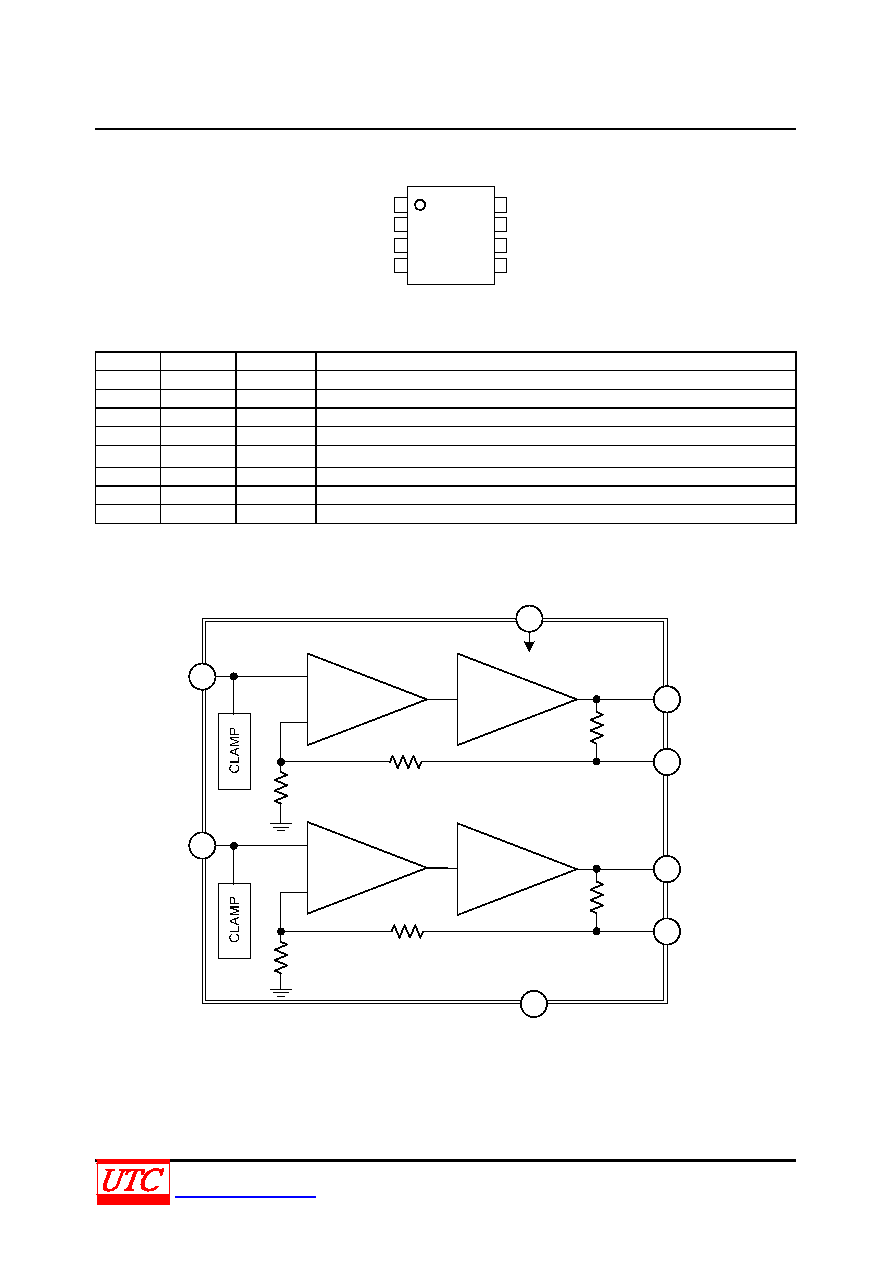

2 / 8 page ![]() V2267 LINEAR INTEGRATED CIRCUIT UNISONICTECHNOLOGIESCO.,LTD 2 of 8 www.unisonic.com.tw QW-R124-006.C PIN CONFIGURATIONS 4 3 2 1 5 6 7 8 VIN2 VCC VSAG2 VOUT2 VOUT1 GND VIN1 VSAG1 PIN DESCRIPTION PIN NO. PIN NAME I/O PIN DESCRIPTION 1 VIN1 I Input terminal of 1VP-P composite signal or Y signal. Clamp level is 1.9V 2 GND Ground 3 VSAG1 O Channel 1 SAG correction output 4 VOUT1 O Output terminal that can drive 75Ω line. Channel 1 output 5 VOUT2 O Output terminal that can drive 75Ω line. Channel 2 output 6 VSAG2 O Channel 2 SAG correction output 7 VCC Supply voltage 8 VIN2 I Input terminal of 1VP-P composite signal or Y signal. Clamp level is 1.9V BLOCK DIAGRAM 8 75Ω Driver 6dB Amp 1 7 5 6 4 3 75Ω Driver 6dB Amp 2.0kΩ 2.2kΩ 2.0kΩ 2.2kΩ 750Ω VOUT2 VOUT1 750Ω SAG correction VSAG2 SAG correction VSAG1 2 GND VIN1 VIN2 VCC VOUT2 VSAG2 VOUT1 VSAG1 |
|
|
