V2267

LINEAR INTEGRATED CIRCUIT

UNISONICTECHNOLOGIESCO.,LTD

4 of 8

www.unisonic.com.tw

QW-R124-006.C

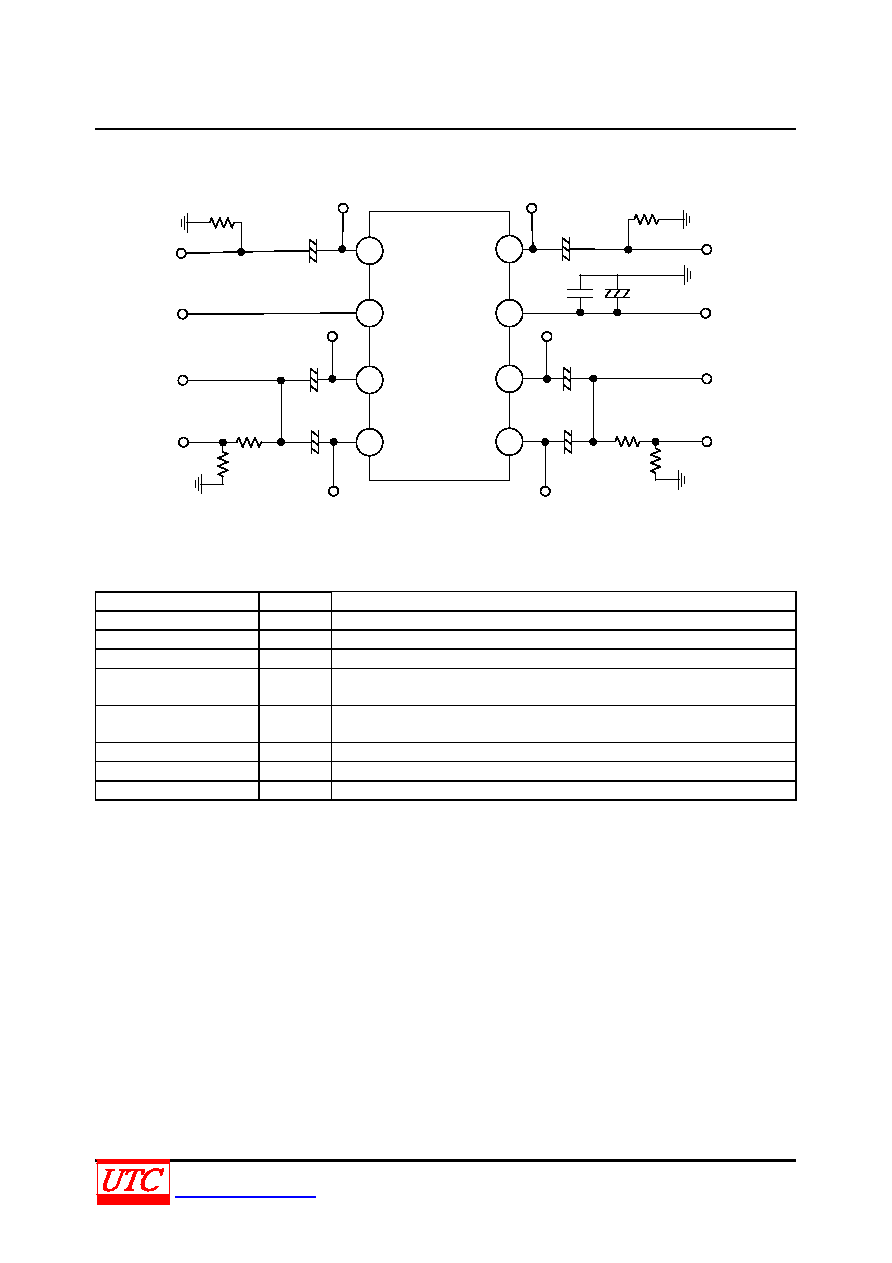

TEST CIRCUIT

VIN1VIN2

GND

V+

VSAG1VSAG2

VOUT1VOUT2

4.7µF

1000pF

100µF

VCC

VIN2

Tp2

75Ω

Tp6

VOUT2

(6dB)

VOUT4

100µF

75Ω

22µF

75Ω

Tp4

GND

Tp1

4.7µF

75Ω

VIN1

VOUT1

(6dB)

VOUT3

Tp3

75Ω

Tp5

22µF

100µF

75Ω

TEST METHODES

PARAMETER

SYMBOL

TEST METHODES

Input Clamp Voltage

VCL

No signal Measuring at TP1(TP2)

Operating Current

ICC

No signal 7PIN Sink Current

Voltage Gain

VOUT1/VIN1, VOUT2/VIN2, at VIN1(VIN2) =1MHz, 1VP-P, Sinewave

Frequency Characteristic

GV1M;Voltage Gain at VIN1(VIN2)=1MHz, 1VP-P

GV10M; Voltage Gain at VIN1(VIN2)=10MHz, 1VP-P, GF= GV10M -GV1M

Crosstalk

VOUT2/VIN1 at VIN1 = 4.43MHz, 1VP-P, Sinewave,VIN2=Gnd

VOUT1/VIN2 at VIN2=4.43MHz, 1VP-P, Sinewave, VIN1=Gnd

Gain Offset

GCH

VIN=1MHz, 1VP-P, GV1 = VOUT1/VIN1,GV2 = VOUT2/VIN2, GCH = GV1-GV2

Differential Gain

GDIFF

VIN1=1VP-P, Staircase, Measuring VOUT3 at VIN1 = Staircase Signal

Differential Phase

VIN1=1VP-P, Staircase, Measuring VOUT3 at VIN1 = Staircase Signal
