18 / 28 page

AD8426

Rev. 0 | Page 18 of 28

1.5pA/DIV

1s/DIV

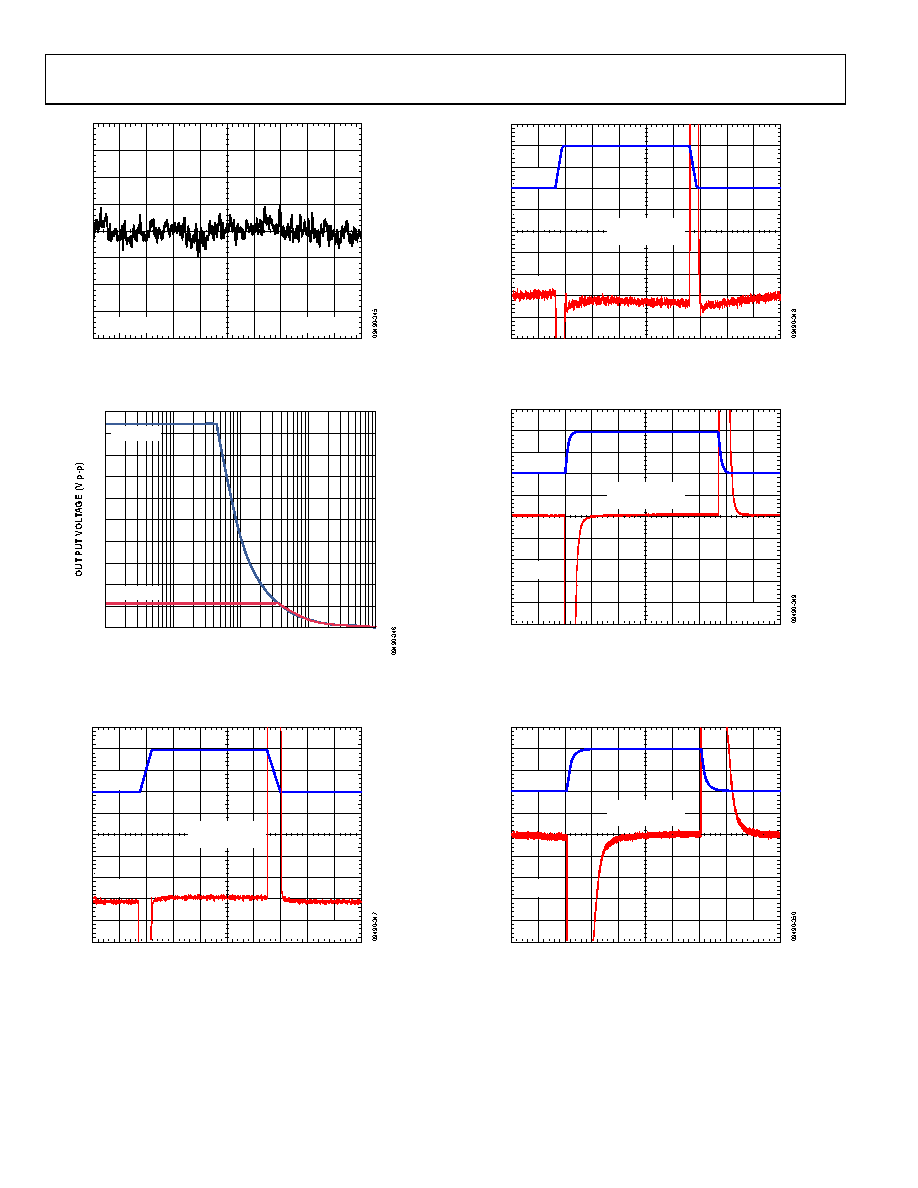

Figure 45. 0.1 Hz to 10 Hz Current Noise

100

10k

100k

FREQUENCY (Hz)

VS = ±15V

VS = +5V

Figure 46. Large Signal Frequency Response

5V/DIV

26µs TO 0.01%

27µs TO 0.001%

0.002%/DIV

50µs/DIV

Figure 47. Large Signal Pulse Response and Settling Time,

10 V Step, Dual Supply, VS = ±15 V, G = 1

5V/DIV

17µs TO 0.01%

23µs TO 0.001%

0.002%/DIV

50µs/DIV

Figure 48. Large Signal Pulse Response and Settling Time,

10 V Step, Dual Supply, VS = ±15 V, G = 10

5V/DIV

42µs TO 0.01%

60µs TO 0.001%

0.002%/DIV

100µs/DIV

Figure 49. Large Signal Pulse Response and Settling Time,

10 V Step, Dual Supply, VS = ±15 V, G = 100

5V/DIV

580µs TO 0.01%

780µs TO 0.001%

0.002%/DIV

500µs/DIV

Figure 50. Large Signal Pulse Response and Settling Time,

10 V Step, Dual Supply, VS = ±15 V, G = 1000
