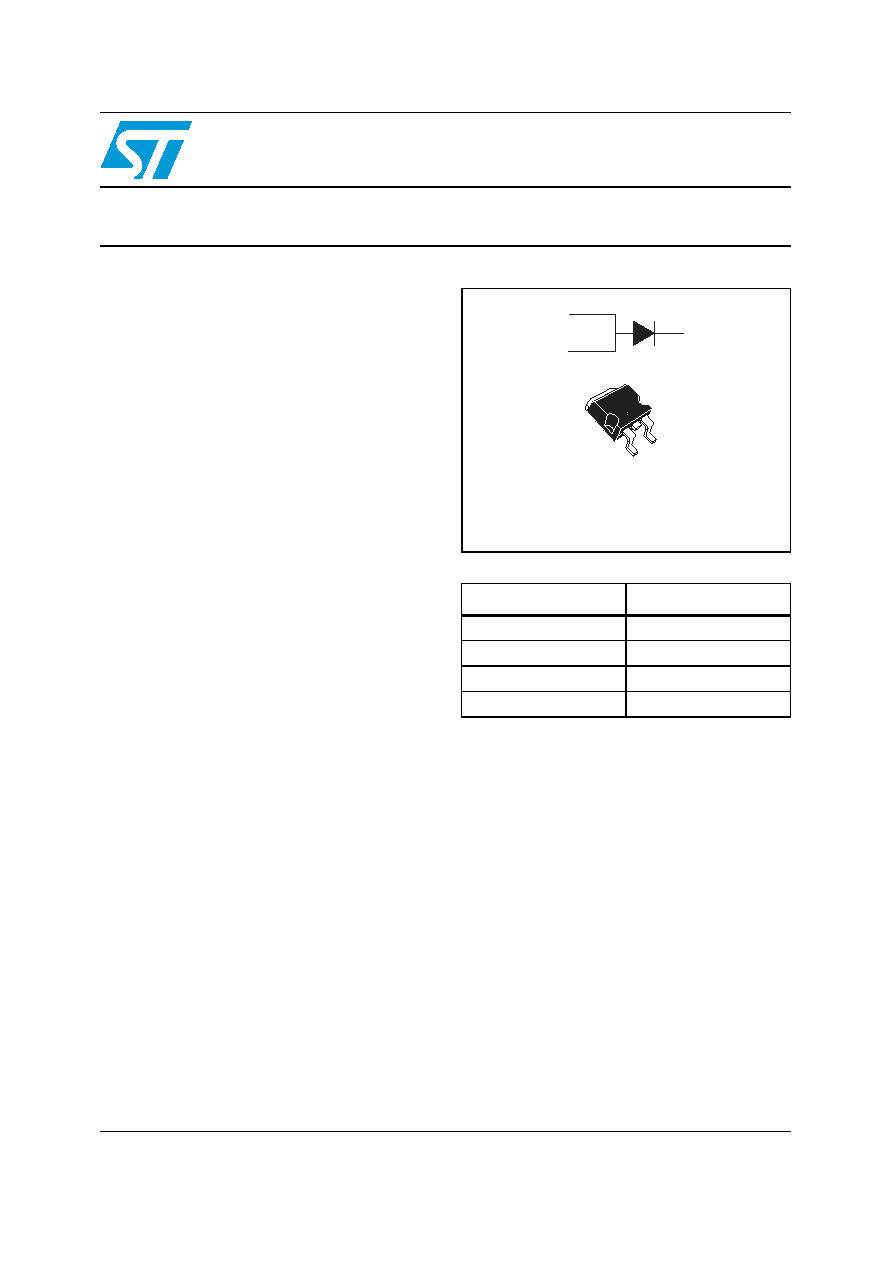

STPS5045S

Power Schottky rectifier

Datasheet

Features

■

Low forward voltage drop

■

Very small conduction losses

■

Negligible switching losses

■

Extremely fast switching

■

Low thermal resistance

■

200 °C maximum junction temperature

■

Avalanche rated

Description

This device is a dual center tap Schottky rectifier

suited for switch mode power supply and high

frequency DC to DC converters.

intended for use in low voltage, high frequency

inverters, freewheeling and polarity protection

applications. Also ideal for PV cell-bypass diode

for junction and smart junction boxes.

j

Table 1.

Device summary

Symbol

Value

50 A

45 V

200 °C

0.48 V

A

A

K

STPS5045SG-TR

A

K

A
