LPS331AP
Block diagram and pin description
Doc ID 022112 Rev 7
3/36
1
Block diagram and pin description
1.1

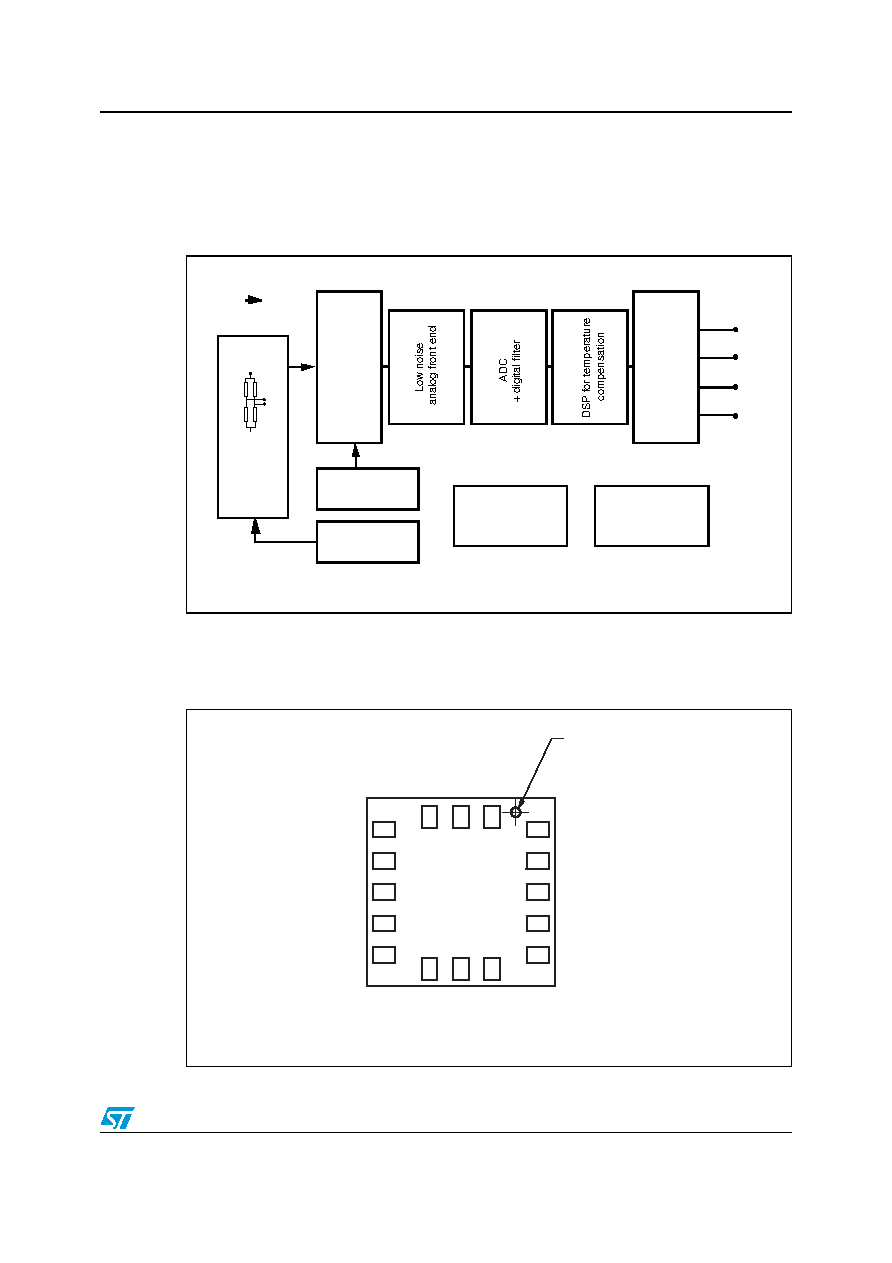

LPS331AP block diagram
Figure 1.
LPS331AP block diagram
1.2
Pin description
Figure 2.
Pin connection
AM08736V1
p
I
2
C
C S
SPI
SCL/SPC
SDA/SDO/SDI
SA0/SDO
Sensing
element
Temperature
sensor
Sensor bias
Voltage and
current bias
Clock and timing
MUX
Vup
Rs
Rs
Rs
Rs
Vdown
Vout
AM08737V1
13
1
5
9
Pin 1 indicator
Bottom view
