ADAU7002
Data Sheet
Rev. 0 | Page 12 of 16

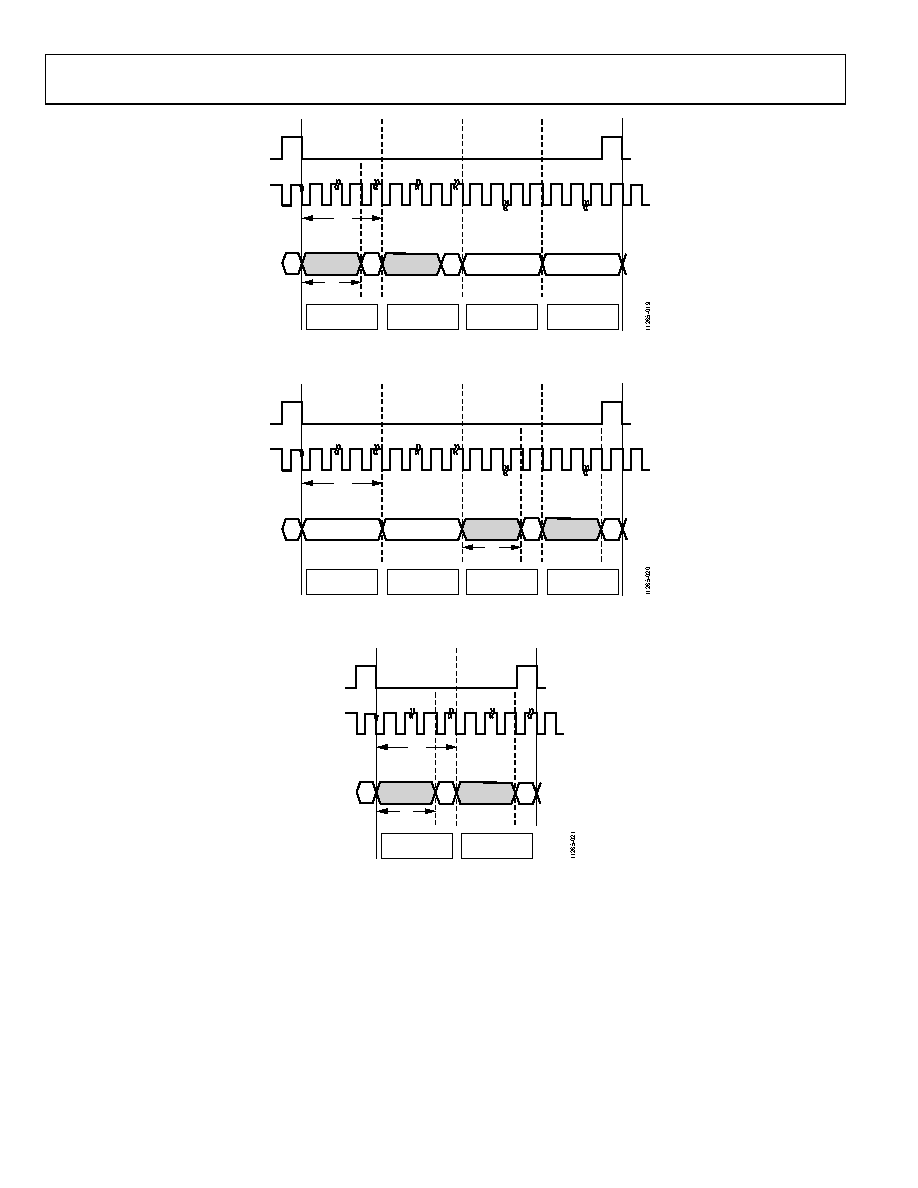

Figure 18. TDM4 Channel 1 and Channel 2, CONFIG Pin Tied to IOVDD
Figure 19. TDM4 Channel 3 and Channel 4, CONFIG Pin Open
Figure 20. TDM2 Channel 1 and Channel 2, CONFIG Pin Tied to IOVDD
SLOT 1
32
BCLKs
LRCLK
BCLK
SDATA
20
BCLKs
RIGHT
LEFT
SLOT 2
SLOT 3
SLOT 4
TRISTATE
TRISTATE
SLOT 1
32
BCLKs
LRCLK
BCLK
SDATA
20
BCLKs
RIGHT
LEFT
SLOT 2
SLOT 3
SLOT 4
TRISTATE
TRISTATE
SLOT 1
32
BCLKs
LRCLK
BCLK
SDATA
20
BCLKs
RIGHT
LEFT
SLOT 2
