E3G

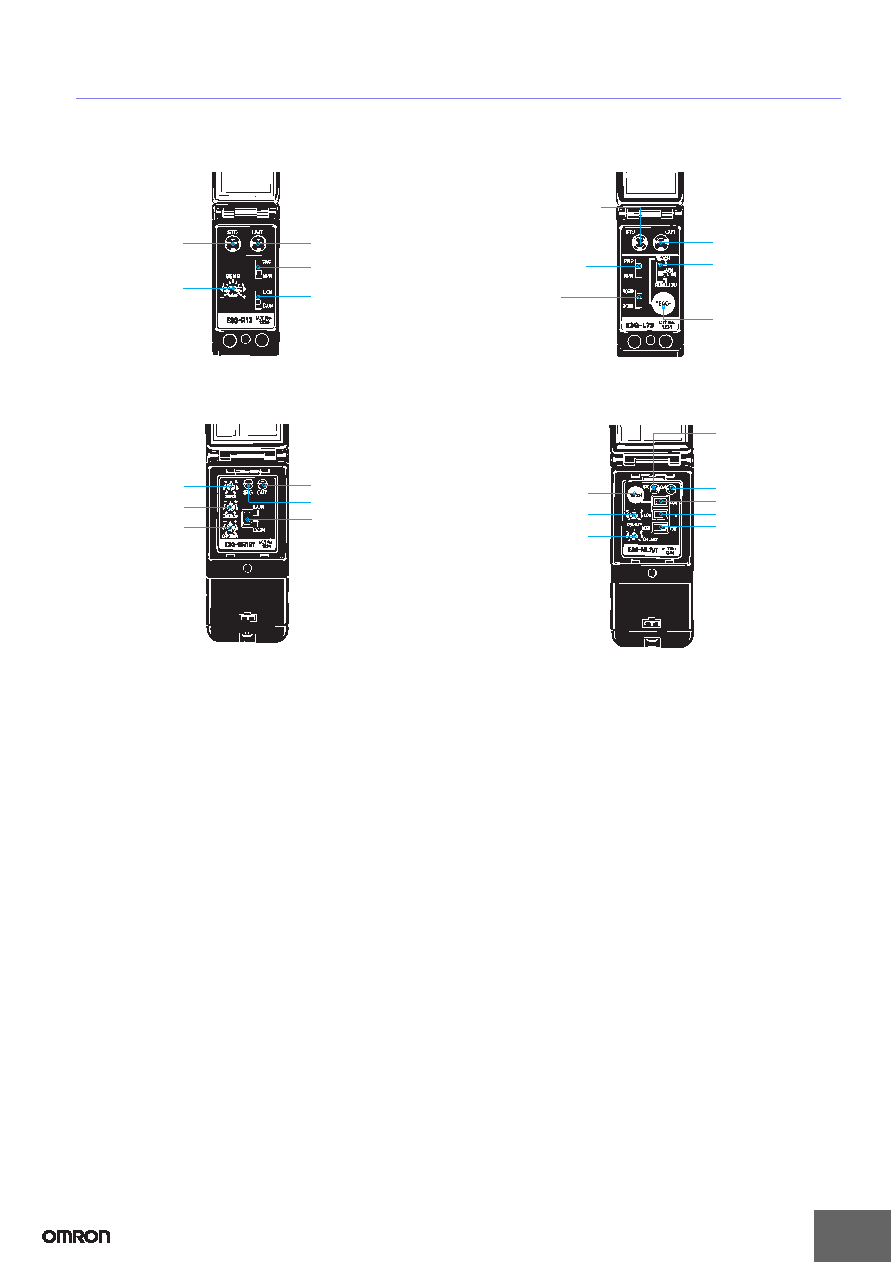

Nomenclature

Retro-reflective

E3G-R13 (Pre-wired Model)

E3G-R17 (Standard Connector Model)

E3G-MR19 (Terminal Block Model)

E3G-MR19T (Terminal Block Model with Timer)

Distance-setting

E3G-L73 (Pre-wired Model)

E3G-L77 (Standard Connector Model)

E3G-ML79 (Terminal Block Model)

E3G-ML79T (Terminal Block Model with Timer)

Stability indicator

(Green)

Sensitivity adjuster

Operation indicator

(Orange)

Output selector

Operation selector

Sensitivity adjuster

ON-delay adjuster

OFF-delay adjuster

Operation indicator

(Orange)

Stability indicator (Green)

Operation selector

* The ON- or OFF-delay

adjuster is not available

with the E3G-MR19.

Stability indicator (Green)

Teaching indicator

(Red and green)

Operation indicator

(Orange)

Mode selector:

TEACH, RUN (D-ON),

RUN (L-ON)

TEACH button

NORMAL/ZONE

selector

Output selector

Operation indicator

(Orange)

Stability indicator (Green)

Teaching indicator

(Red and green)

Mode selector

Operation selector

NORMAL/ZONE selector

TEACH button

ON-delay adjuster

OFF-delay adjuster

* The ON- or OFF-delay

adjuster is not available

with the E3G-MR79.
