ADL5372

Rev. 0 | Page 7 of 24

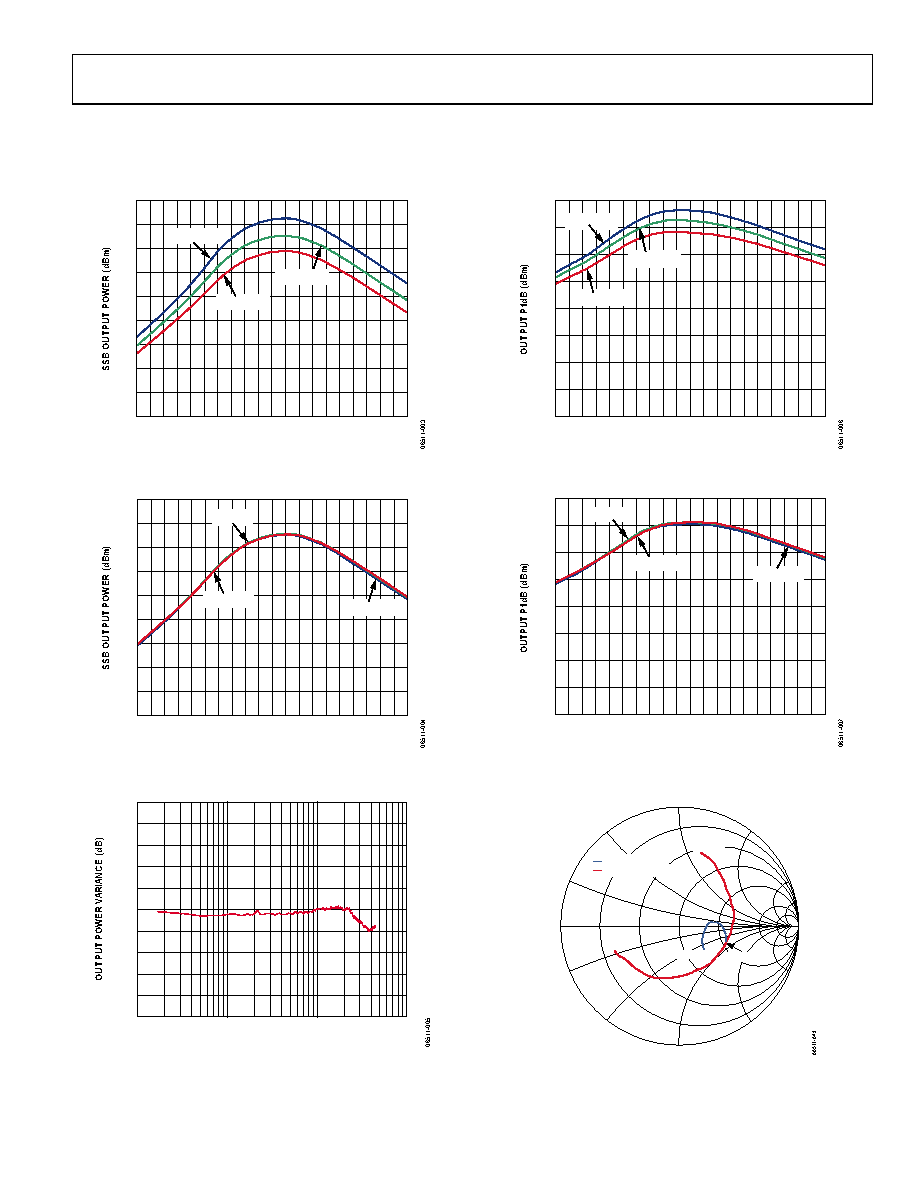

TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V; TA = 25°C; LO = 0 dBm single-ended; baseband I/Q amplitude = 1.4 V p-p differential sine waves in quadrature with a 500 mV

dc bias; baseband I/Q frequency (fBB) = 1 MHz, unless otherwise noted.

1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

LO FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 3. Single Sideband (SSB) Output Power (POUT) vs.

LO Frequency (fLO) and Temperature

1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

LO FREQUENCY (MHz)

VS = 5V

VS = 5.25V

VS = 4.75V

Figure 4. Single Sideband (SSB) Output Power (POUT) vs.

LO Frequency (fLO) and Supply

–5

100

1000

BASEBAND FREQUENCY (MHz)

Figure 5. I and Q Input Bandwidth Normalized to

Gain @ 1 MHz (fLO = 1900 MHz)

1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

LO FREQUENCY (MHz)

TA = +85°C

TA = +25°C

TA = –40°C

Figure 6. SSB Output P1dB Compression Point (OP1dB) vs. fLO and Temperature

1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500

LO FREQUENCY (MHz)

VS = 4.75V

VS = 5.25V

VS = 5V

Figure 7. SSB Output P1dB Compression Point (OP1dB) vs. fLO and Supply

180

330

270

300

120

240

150

210

2500MHz

1500MHz

2500MHz

S11 OF LOIP

S22 OF OUTPUT

Figure 8. Smith Chart of LOIP S11 and VOUT S22

(fLO from 1600 MHz to 2500 MHz)
