STBB2JAD-R 데이터시트(PDF) 14 Page - STMicroelectronics

부품명 STBB2JAD-R
상세설명  800 mA 2.5 MHz, high efficiency dual mode buck-boost DC-DC converter
PDF  25 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STBB2JAD-R 데이터시트(HTML) 14 Page - STMicroelectronics

Back Button STBB2JAD-R Datasheet HTML 10Page - STMicroelectronics STBB2JAD-R Datasheet HTML 11Page - STMicroelectronics STBB2JAD-R Datasheet HTML 12Page - STMicroelectronics STBB2JAD-R Datasheet HTML 13Page - STMicroelectronics STBB2JAD-R Datasheet HTML 14Page - STMicroelectronics STBB2JAD-R Datasheet HTML 15Page - STMicroelectronics STBB2JAD-R Datasheet HTML 16Page - STMicroelectronics STBB2JAD-R Datasheet HTML 17Page - STMicroelectronics STBB2JAD-R Datasheet HTML 18Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 14 / 25 page
background image

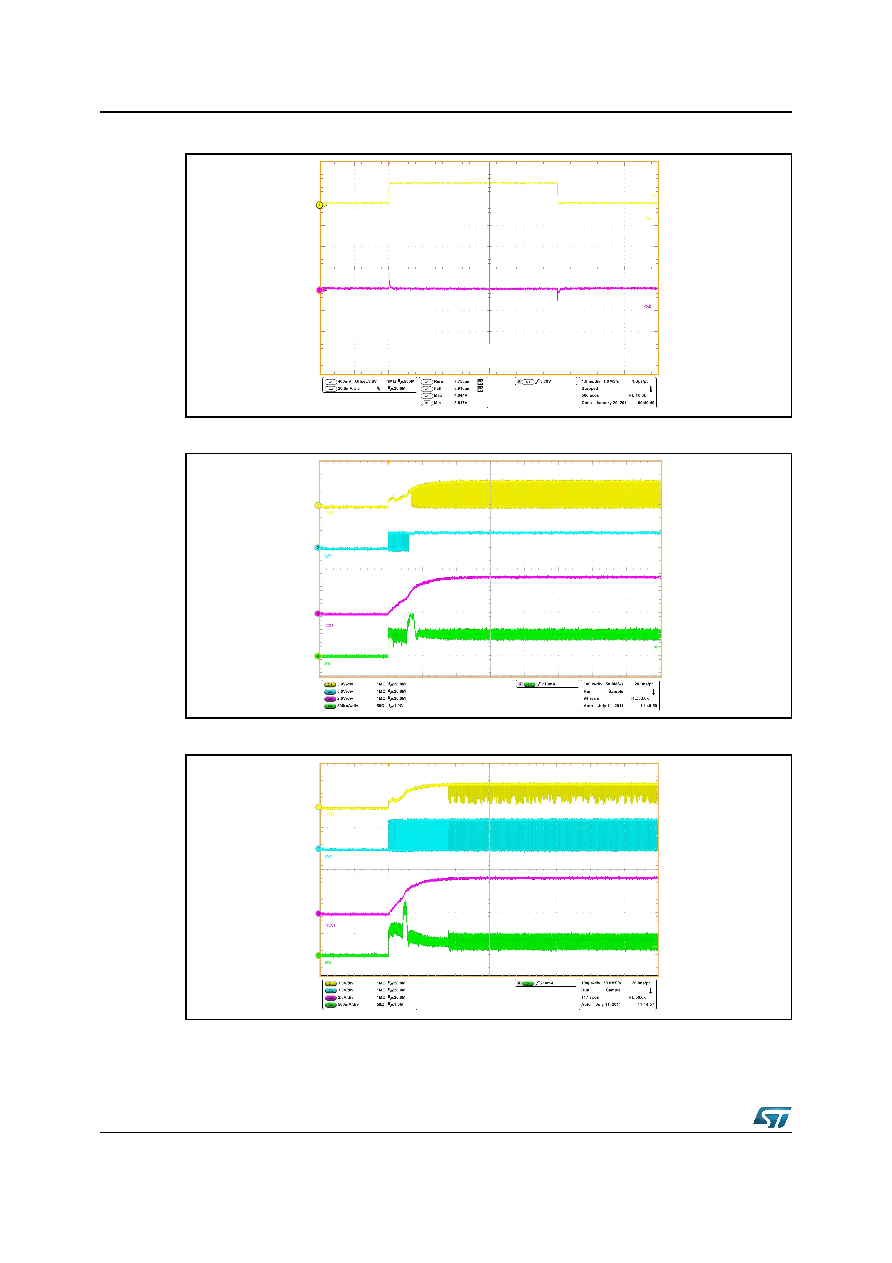

Typical performance characteristics
STBB2
14/25
DocID022745 Rev 9
Figure 16. VIN = from 3.6 V to 4 V, VOUT = 3.4 V, IOUT = 300 mA
Figure 17. Startup after enable (VOUT = 3.3 V, VIN = 2.4 V, IOUT = 300 mA)
Figure 18. Startup after enable (VOUT = 3.3 V, VIN = 4.2 V, IOUT = 300 mA)
Input Voltage 400 mV/div,
Offset = 3.6 V
Output voltage
20 mV/div
Timebase 1 msec
SW2
SW1
V
OUT
I
SW
SW2
SW1
V
OUT
I
SW
