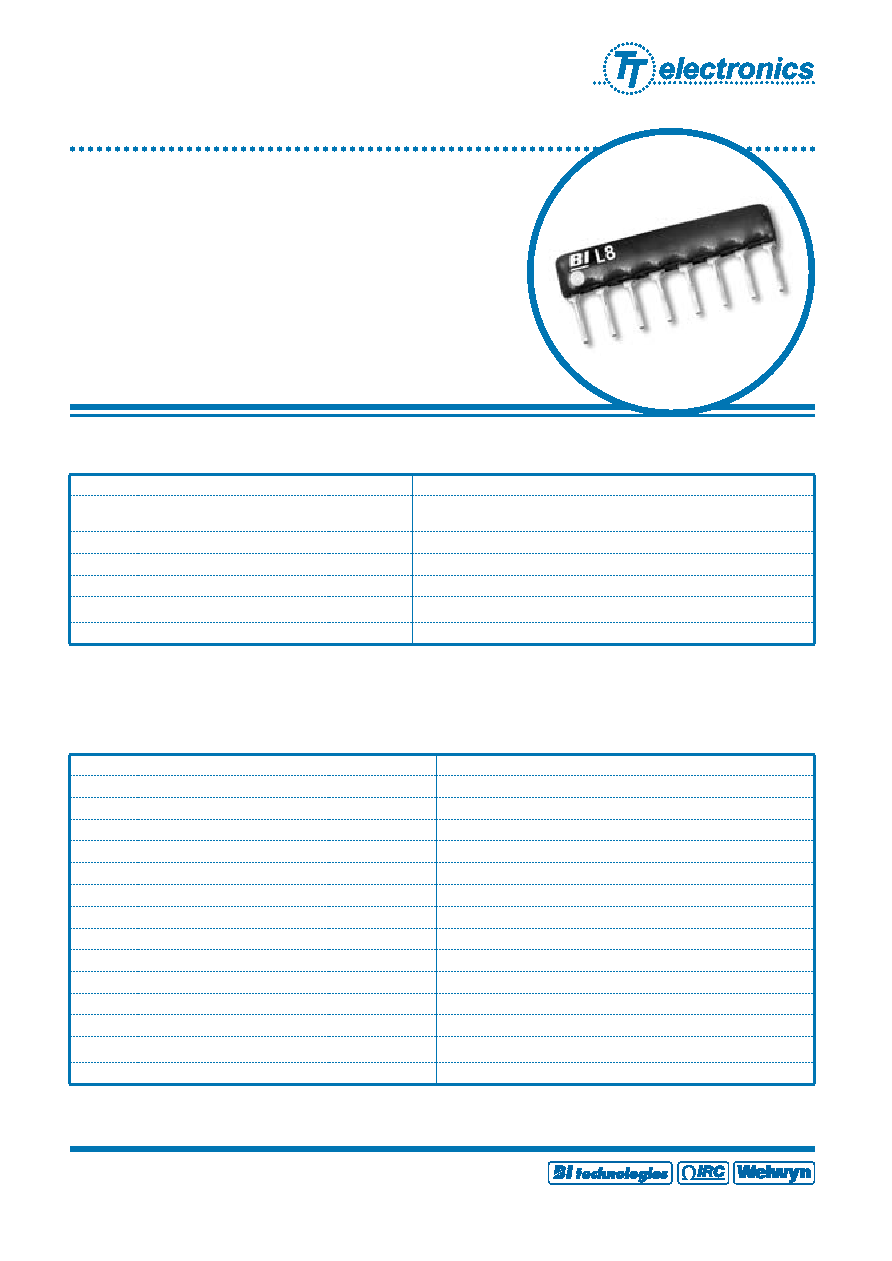

MODEL L SERIES

L Series

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

© TT electronics plc

03.12

Electrical

Environmental

Standard Resistance Range, Ohms

1%: 22R - 1M; 2%:10R - 5M6; 5%: 10R - 10M

Standard Resistance Tolerance, at 25°C

±2%

Optional: ±1% (F Tol.), ±5% (J Tol.)

Operating Temperature Range

-55°C to +125°C

Temperature Coefficient of Resistance

±100ppm/°C (<50 Ohms = ±250ppm/°C)

Temperature Coefficient of Resistance, Tracking

±50ppm/°C

Maximum Operating Voltage

100Vdc or

√PR

Insulation Resistance

≥10,000 Megohms

Thermal Shock plus Power Conditioning

ΔR 0.70%

Short Time Overload

ΔR 0.25%

Terminal Strength

ΔR 0.25%

Moisture Resistance

ΔR 0.50%

Mechanical Shock

ΔR 0.25%

Vibration

ΔR 0.25%

Low Temperature Storage

ΔR 0.25%

High Temperature Exposure

ΔR 0.50%

Load Life, 1,000 Hours

ΔR 1.00%

Resistance to Solder Heat (Per MIL-STD-202, Method 210, Cond.B)

ΔR 0.25%

Dielectric Withstand Voltage

200V for 1 minute

Marking Permanency

MIL-STD 202, Method 215

Lead Solderability

MIL-STD 202, Method 208

Flammability

UL-94V-O Rated

Storage Temperature Range

-55°C to +150°C

Specifications subject to change without notice.
