16mm A6

460

www.idec.com

Switches & Pilot Devices

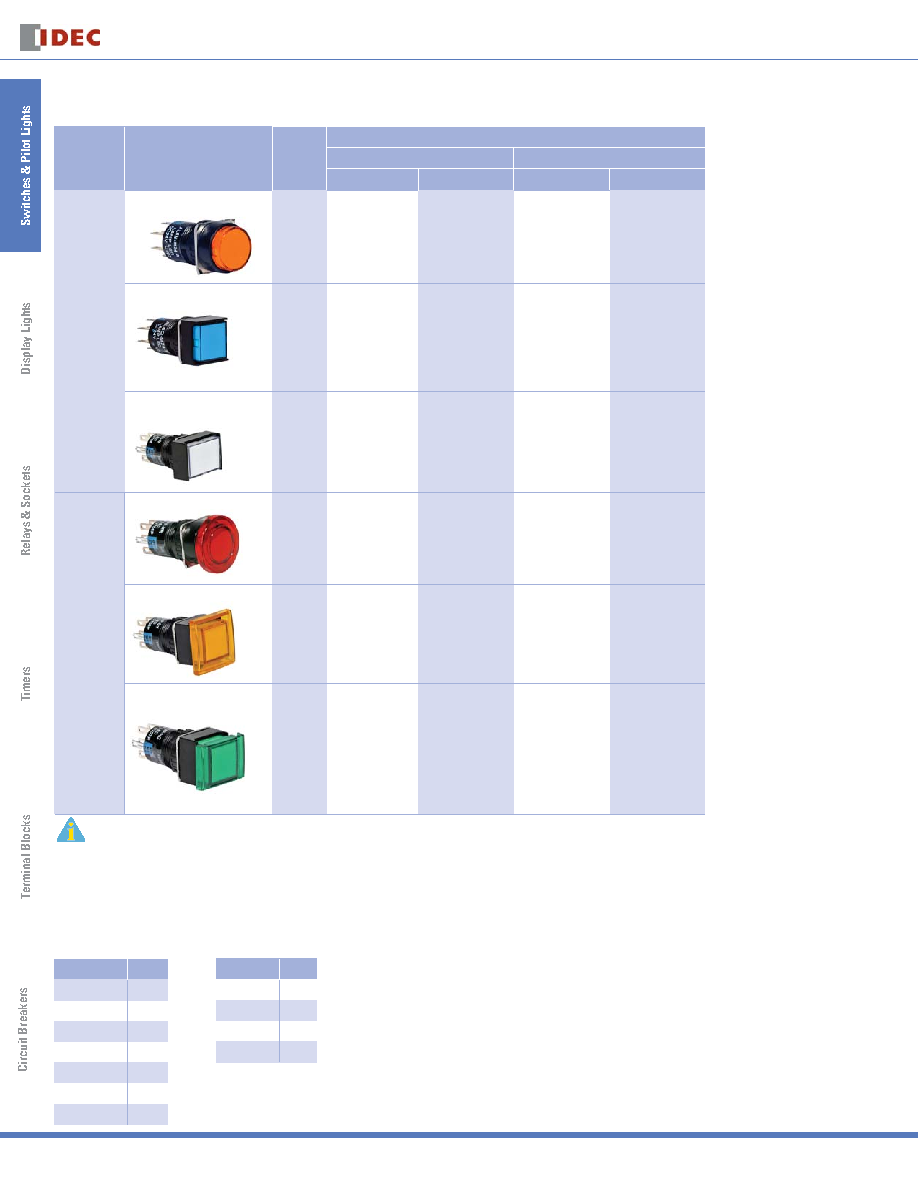

AL6 Illuminated Pushbuttons (Assembled)

LED Illuminated Pushbuttons

Description

Style

Contact

Part Numbers

Momentary

Maintained (Latching)

Dustproof (IP40)

Oiltight (IP65)

Dustproof (IP40)

Oiltight (IP65)

Standard

Lens

Round (18mm lens)

SPDT

DPDT

AL6M-M1l-k

AL6M-M2l-k

AL6M-M1lP-k

AL6M-M2lP-k

AL6M-A1l-k

AL6M-A2l-k

AL6M-A1lP-k

AL6M-A2lP-k

Square (18mm lens)

SPDT

DPDT

AL6Q-M1l-k

AL6Q-M2l-k

AL6Q-M1lP-k

AL6Q-M2lP-k

AL6Q-A1l-k

AL6Q-A2l-k

AL6Q-A1lP-k

AL6Q-A2lP-k

Rectangular (18mm x

24mm lens)

SPDT

DPDT

AL6H-M1l-k

AL6H-M2l-k

AL6H-M1lP-k

AL6H-M2lP-k

AL6H-A1l-k

AL6H-A2l-k

AL6H-A1lP-k

AL6H-A2lP-k

Oversize

Lens

Round (24mm lens)

SPDT

DPDT

–

AL6M-M1lP-Mk

AL6M-M2lP-Mk

–

AL6M-A1lP-Mk

AL6M-A2lP-Mk

Square (24mm lens)

SPDT

DPDT

–

AL6Q-M1lP-Qk

AL6Q-M2lP-Qk

–

AL6Q-A1lP-Qk

AL6Q-A2lP-Qk

Rectangular (18mm x

24mm lens)

SPDT

DPDT

–

AL6Q-M1lP-Hk

AL6Q-M2lP-Hk

–

AL6Q-A1lP-Hk

AL6Q-A2lP-Hk

4. LED lamp is included in unit and contains a current-limiting resistor and a protection diode. (External resistor not required.)

5. To order as sub-assembled, see page 461.

6. For accessories, see page 466.

7. For dimensions, see page 468.

8. Light independent of switch position.

kLens/LED Color Code

Color

Code

Amber

A

Green

G

Red

R

Blue

S

Warm White

W

Cool White

JW

Yellow

Y

lVoltage Code

Voltage

Code

5V DC

1

6V AC/DC

2

12V AC/DC

3

24V AC/DC

4

lVoltage Code

Voltage

Code

5V DC

1

6V AC/DC

2

12V AC/DC

3

24V AC/DC

4
