16mm A6

462

www.idec.com

Switches & Pilot Devices

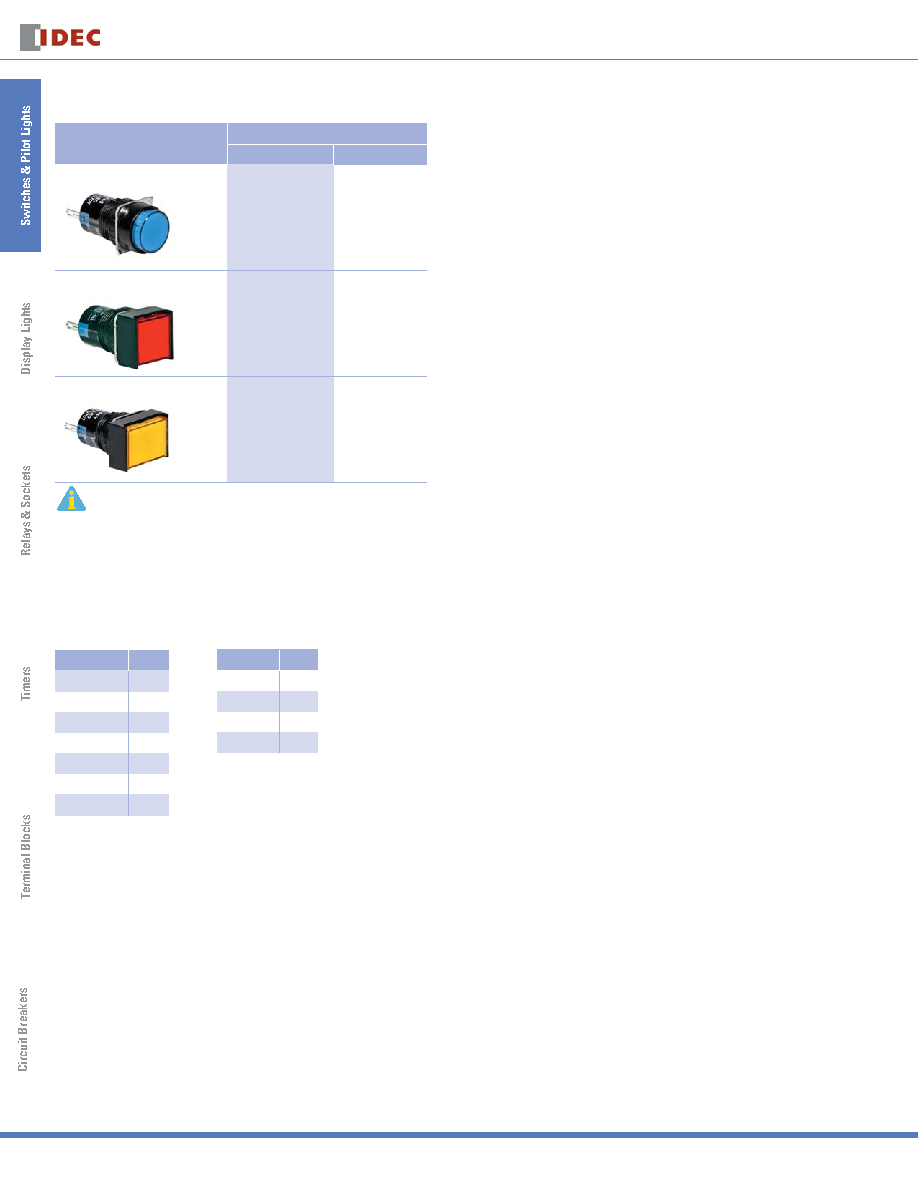

AL6 Pilot Lights (Assembled)

LED Pilot Lights

Description

Part Number

Dustproof (IP40)

Oiltight (IP65)

Round (18mm Lens)

AL6M-Pl-k

AL6M-PlP-k

Square (18mm Lens)

AL6Q-Pl-k

AL6Q-PlP-k

Rectangular (18mm x 24mm Lens)

AL6H-Pl-k

AL6H-PlP-k

1. In place of k, specify Lens Color Code from table below.

2. In place of l, specify Voltage Code from table below.

3. LEDs also available in 5V DC, 6V AC/DC or 12 V AC/DC, change “4” using voltage codes (ie AL6M-P3-k uses

12V AC/DC LED).

4. LED is included and contains built-in current limiting resistor and reverse polarity protection diode. (no

external resistor required)

5. To order sub-assembled, see page 463.

6. For accessories, see page 466.

7. For dimensions, see page 468.

8. For one piece pilot lights and/or dome lens pilot lights, see AP series miniature pilot lights.

kLens/LED Color Code

Color

Code

Amber

Green

Red

Blue

Warm White

Cool White

Yellow

lVoltage Code

Voltage

Code

5V DC

6V AC/DC

12V AC/DC

24V AC/DC

lVoltage Code

Voltage

Code

5V DC

6V AC/DC

12V AC/DC

24V AC/DC
