FT240X USB 8-BIT FIFO IC Datasheet

Version 1.3

Document No.: FT_000626 Clearance No.:

FTDI# 259

9.5 Solder Reflow Profile

The FT240X is supplied in Pb free 24 LD SSOP and QFN-24 packages. The recommended solder reflow

profile for both package options is shown in 9.5.

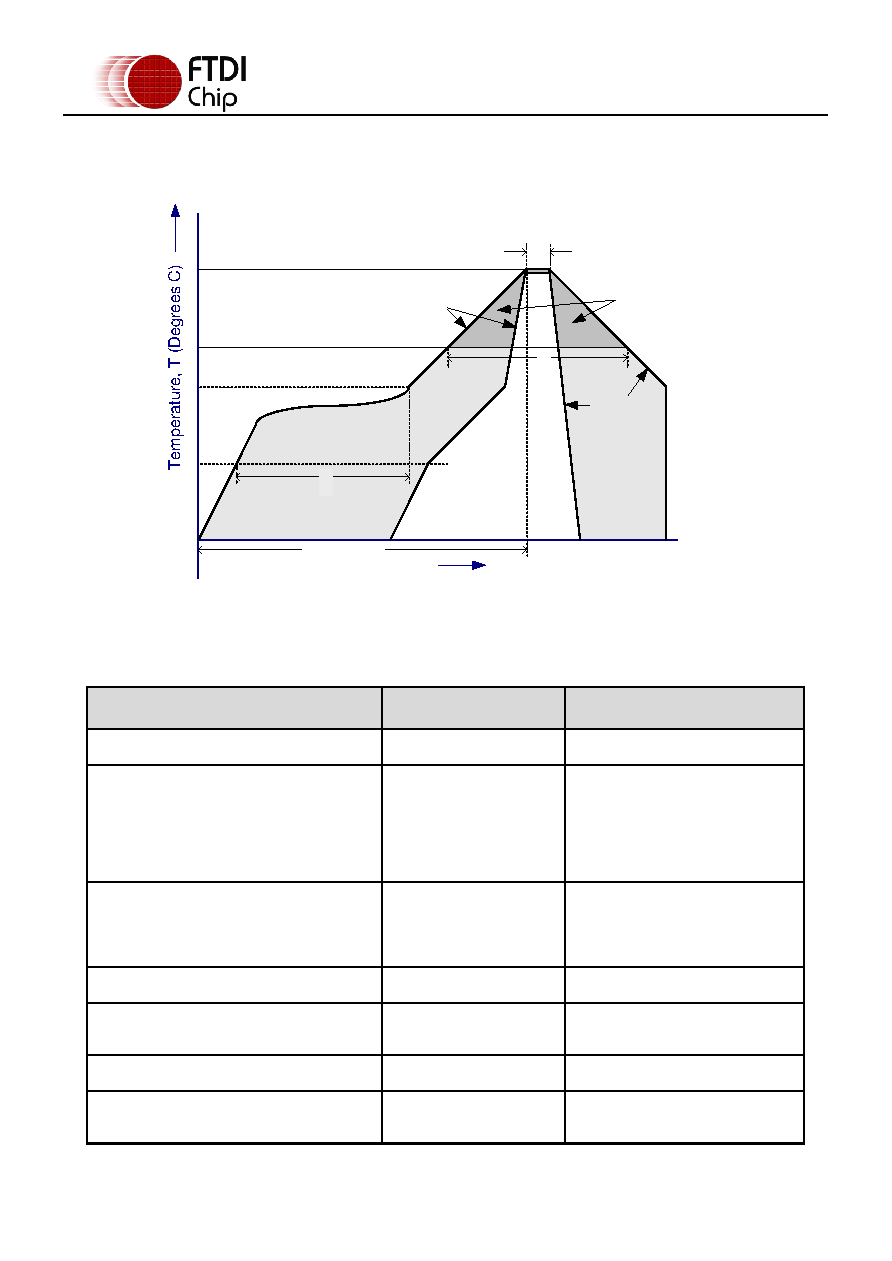

Figure 9.5 FT240X Solder Reflow Profile

The recommended values for the solder reflow profile are detailed in Table 9.1. Values are shown for both

a completely Pb free solder process (i.e. the FT240X is used with Pb free solder), and for a non-Pb free

solder process (i.e. the FT240X is used with non-Pb free solder).

Profile Feature

Pb Free Solder Process

Non-Pb Free Solder Process

3°C / second Max.

3°C / Second Max.

Preheat

150°C

200°C

60 to 120 seconds

100°C

150°C

60 to 120 seconds

Time Maintained Above Critical

217°C

60 to 150 seconds

183°C

60 to 150 seconds

260°C

240°C

Time within 5°C of actual Peak

20 to 40 seconds

20 to 40 seconds

Ramp Down Rate

6°C / second Max.

6°C / second Max.

Time for T= 25°C to Peak Temperature,

8 minutes Max.

6 minutes Max.

Table 9.1 Reflow Profile Parameter Values

Critical Zone: when

T is in the range

T to T

Time, t (seconds)

25

P

T = 25º C to T

t

Preheat

S

t

L

Ramp Up

L

p

Ramp

Down

T Max

S

T Min

S
