ICS570A

Multiplier and Zero Delay Buffer

MDS 570A C

5

Revision 102700

Printed 11/14/00

Integrated Circuit Systems, Inc .• 525 Race Street • San Jose • CA •95126• (408)295-9800tel •www.icst.com

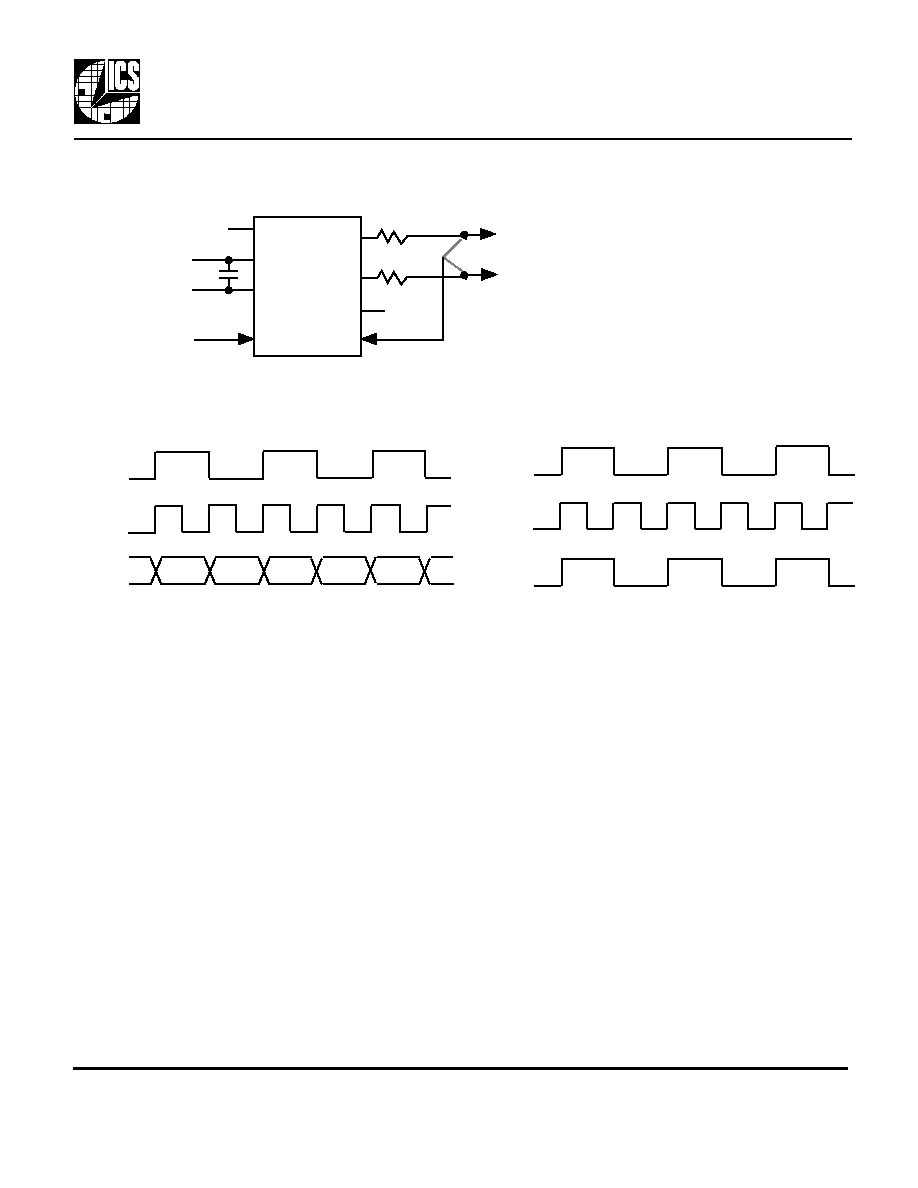

Recommended Circuit:

VDD

GND

INPUT

ICK

CLK

CLK/2

ICLK

CLK

CLK/2

x2 Mode (S1, S0 = 1, 1)

CLK Feedback

x2 Mode (S1, S0 = 1, 0)

CLK/2 Feedback

CLK

CLK/2

S1

S0

Using CLK as the feedback will always result in synchronized rising edges between ICLK and CLK. But the

CLK/2 could be a falling edge compared with ICLK. Therefore, wherever possible, we recommend the use of

CLK/2 feedback. This will synchronize the rising edges of all 3 clocks.

FBIN
