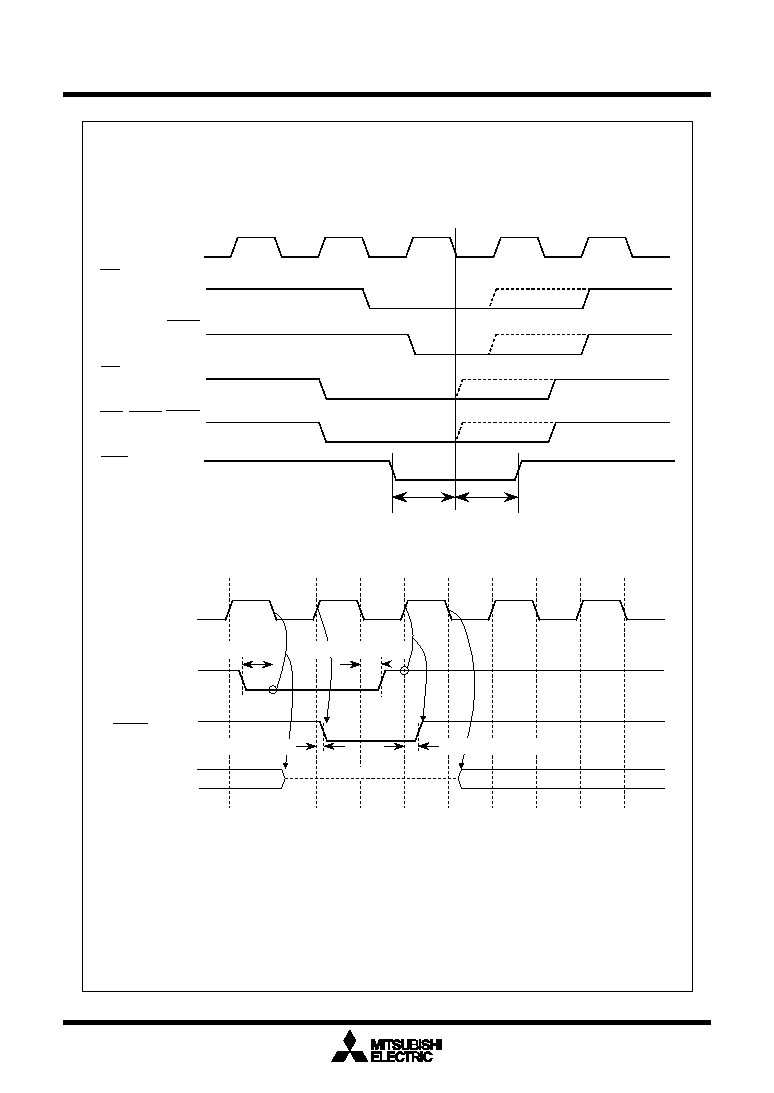

187 / 274 page  Mitsubishi microcomputers M16C / 62A Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Timing (Vcc = 5V) 187 VCC = 5V Measuring conditions : • VCC=5V • Input timing voltage : Determined with VIL=1.0V, VIH=4.0V • Output timing voltage : Determined with VOL=2.5V, VOH=2.5V Memory Expansion Mode and Microprocessor Mode BCLK HOLD input HLDA output P0, P1, P2, P3, P4, P50 to P52 (Valid with or without wait) Note: The above pins are set to high-impedance regardless of the input level of the BYTE pin and bit (PM06) of processor mode register 0 selects the function of ports P40 to P43. th(BCLK–HOLD) tsu(HOLD–BCLK) (Valid only with wait) td(BCLK–HLDA) td(BCLK–HLDA) Hi–Z RDY input tsu(RDY–BCLK) th(BCLK–RDY) BCLK RD (Multiplexed bus) (Multiplexed bus) WR, WRL, WRH WR, WRL, WRH (Separate bus) RD (Separate bus) Figure 1.23.3. VCC=5V timing diagram (2) |
|
