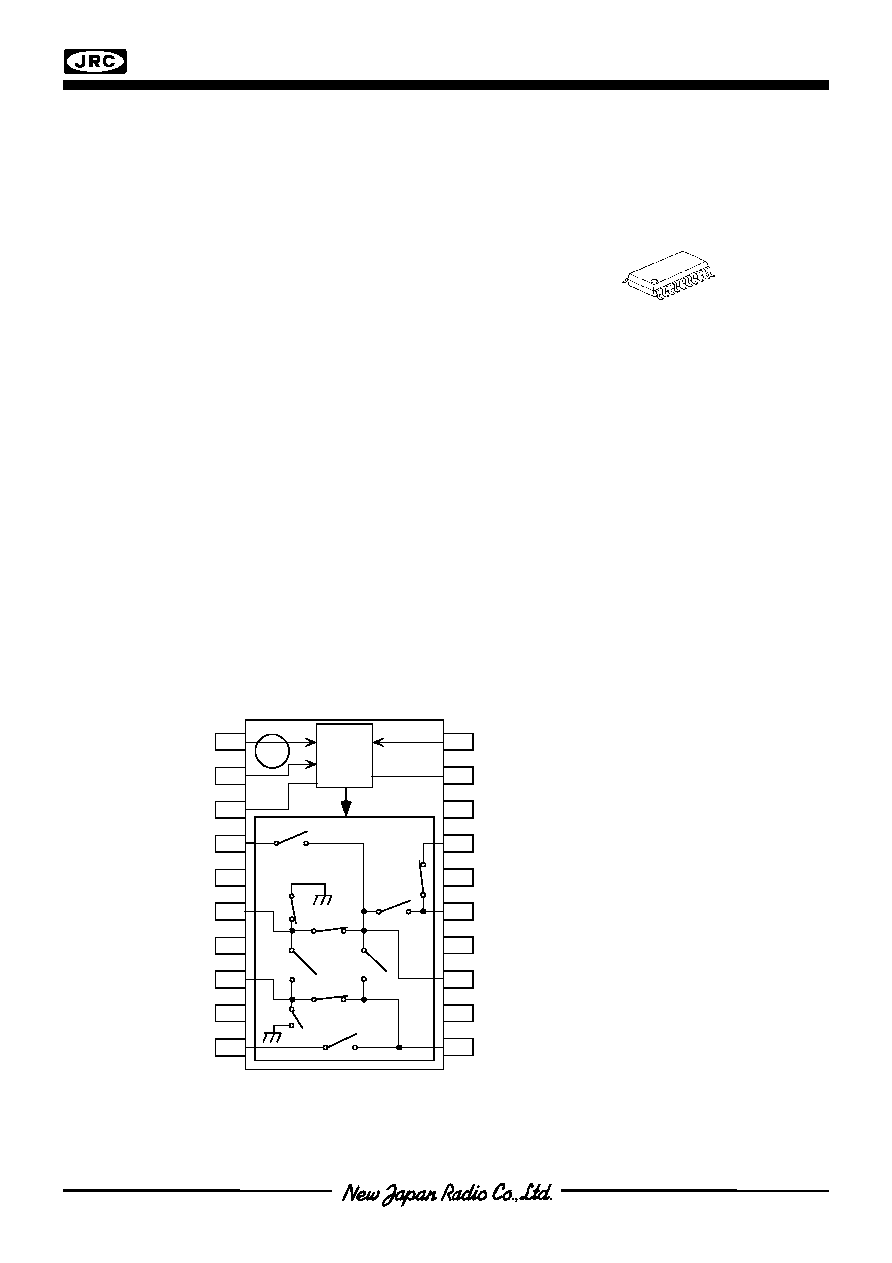

NJG1515AVB2

- 1 -

TDMA ANTENNA SWITCH GaAs MMIC

nGENERAL DESCRIPTION

nPACKAGE OUTLINE

NJG1515AVB2 is an antenna switch IC for a digital cellular

phone of 800MHz and 1.5GHz band.

The parallel control signals of three bits connect T/R circuits

to internal two antennas or external two antennas.

The termination ports with external matching circuits make

low interference between diversity antennas.

NJG1515AVB2 features very low insertion loss and low

current consumption in a very small SSOP20 package.

nFEATURES

lLow voltage operation

-2.5V (Tx only) and +3.5V

lLow current consumption

10uA typ. @Pin=30dBm (Transmit)

2uA typ. @Pin=10dBm (Receiving)

lLow insertion loss

0.5dB typ. @(TX-ANT1, TX-EXT1) f=940MHz, Pin=30dBm

0.6dB typ. @(TX-ANT1, TX-EXT1) f=1453MHz, Pin=30dBm

lLow Adjacent Channel

-63dBc typ. @VDD=+3.5V, VSS=-2.5V, f=940MHz, Pin=30dBm

Leakage Power

-64dBc typ. @VDD=+3.5V, VSS=-2.5V, f=1453MHz, Pin=30dBm

lPackage

SSOP20-B2 (Mount Size: 6.4x5.0x1.25mm)

nPIN CONFIGURATION

NJG1515AVB2

Pin Connection

1. CTL2

2. CTL3

3. VSS

4. EXT2

5. GND

6. EXT1

7. GND

8. TX

9. GND

10. TER2

11. ANT1

12. GND

13. RX

14. GND

15. ANT2

16. GND

17. TER1

18. GND

19. VDD

20. CTL1

VB2 Type

(Top View)

1

2

3

4

6

7

8

9

10

5

20

19

18

17

16

15

14

13

12

11

ANT-SW

DECORDER
