NJG1508F

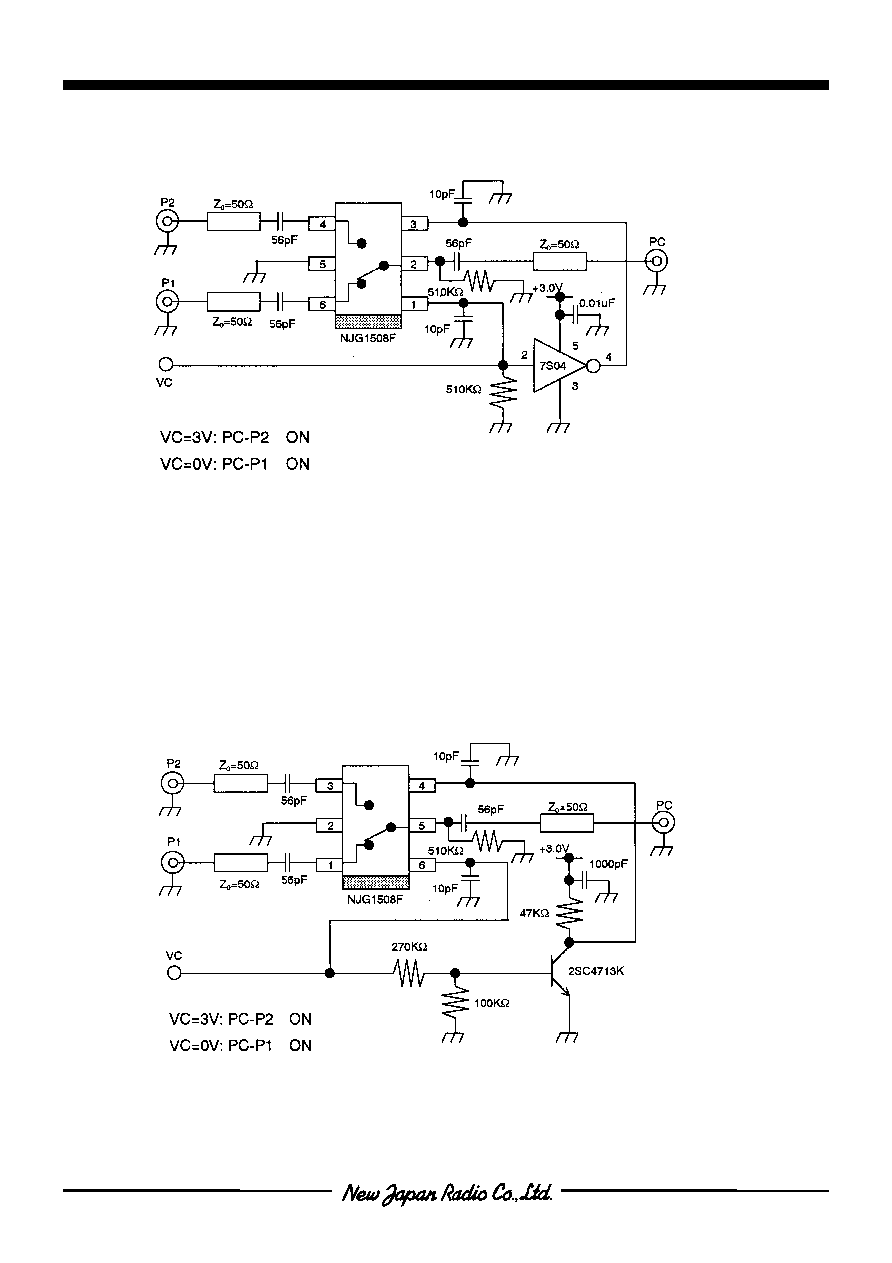

nAPPLICATION CIRCUIT 1: Single control signal operation by using C-MOS inverter.
[1]Please connect bypass capacitors to the supply terminals f the C-MOS inverter.
[2]In order to stabilize input impedance of inverter, please pull down using 510K
Ω
resister from the input terminal of the C-MOS inverter to the ground plane.
nAPPLICATION CIRCUIT 2: Single control signal operation by using a transistor.
