NJG1508F

- 1 -

SPDT SWITCH GaAs MMIC

nGENERAL DESCRIPTION

nPACKAGE OUTLINE

NJG1508F is a GaAs SPDT switch MMIC which features

low loss, high isolation and low control current, and ideally

suitable the cellular phone handsets which needs to switch

during two frequency bands.

NJG1508F is operated in the wide frequency range from

50MHz to 3GHz at a low voltage from 2.5V with very small

MTP6 package.

nFEATURES

lSingle and low control voltage

+2.5~+5.5V

lLow insertion loss

lHigh isolation

lTransmission power

lLow control current

lPackage

MTP6 (Mount Size: 2.8x2.9x1.2mm)

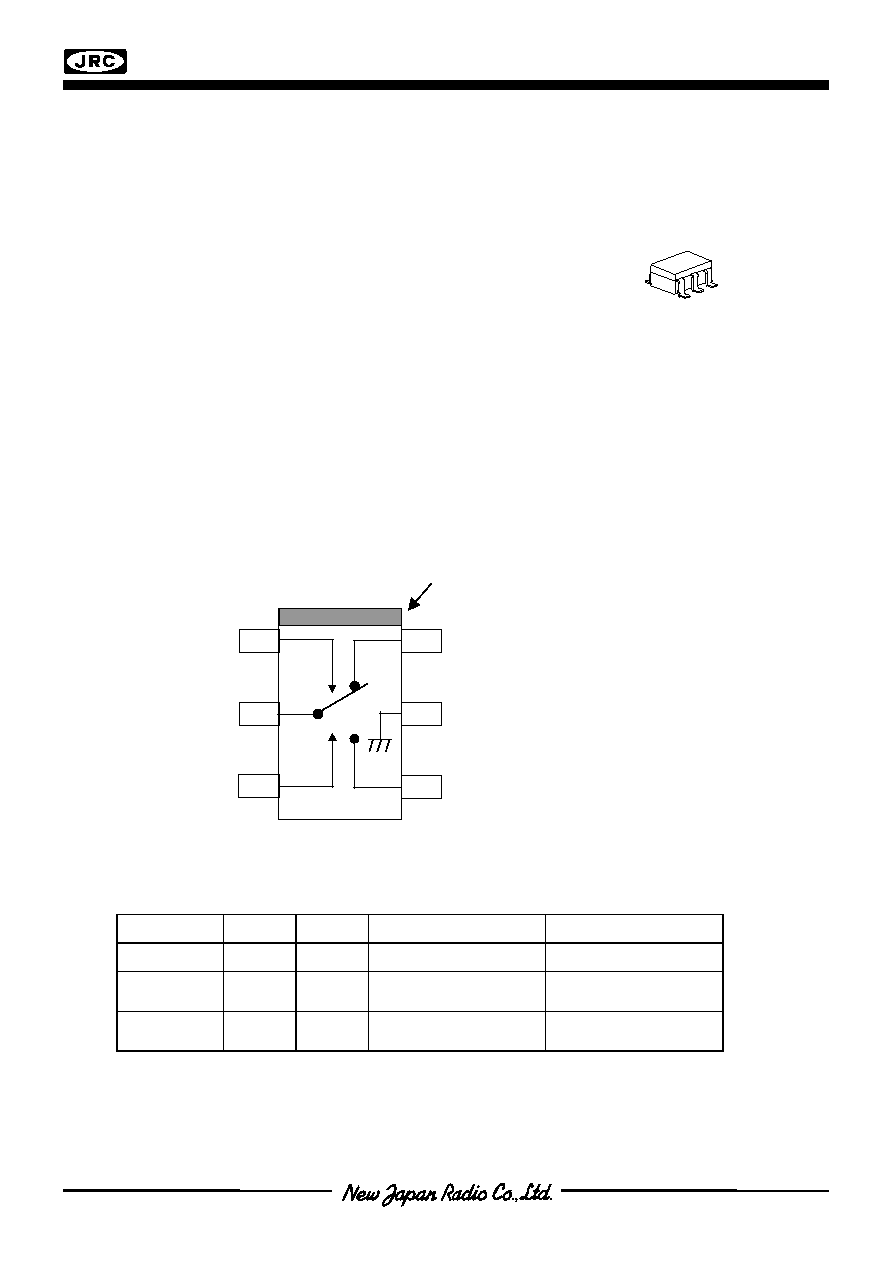

nPIN CONFIGURATION

nTRUTH TABLE

H

L

L

H

L

H

L

H

P1-PC

OFF

ON

Loss=15dB

P1 Return Loss=-3dB

Loss=16dB

P1 Return Loss=-2dB

P2-PC

ON

OFF

Loss=15dB

P2 Return Loss=-3dB

Loss=16dB

P2 Return Loss=-2dB

NJG1508F

F Type

(Top View)

Orientation Mark

1

2

3

4

5

6

Pin Connection

2.PC

4.P2

5.GND

6.P1

Note) The values of “Loss” and “Return Loss” are typical values.
