NJG1552F
- 15 -

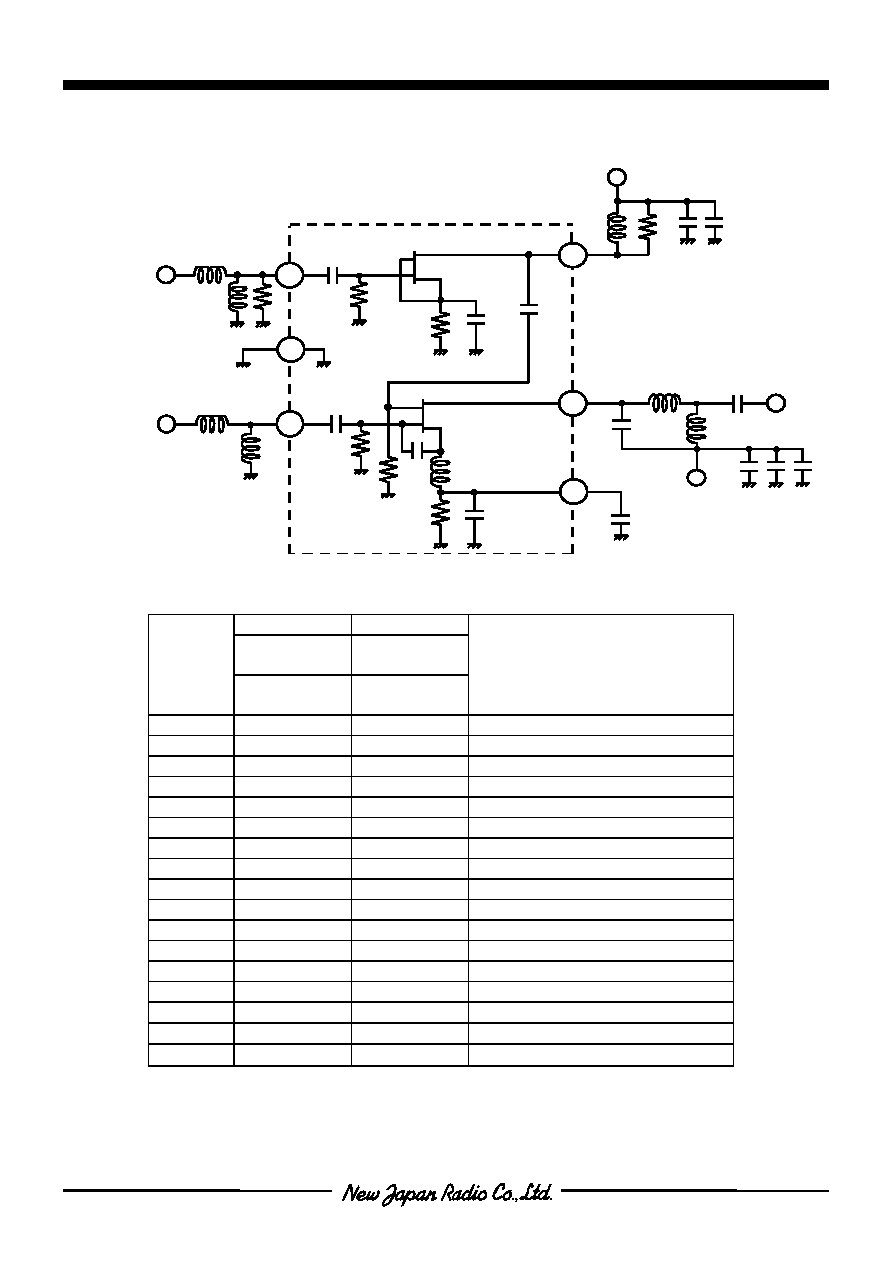

nAPPLICATION CIRCUIT 1
PARTS LIST
1.5GHz Band
1.9GHz Band
Upper
LOCAL
Lower
LOCAL
PART ID
fLO=1619MHz
fIF=130MHz
fLO=1660MHz
fIF=240MHz
COMMENT
L1
10nH
6.8nH
TAIYO-YUDEN(HK1608)
L2
8.2nH
4.7nH
TAIYO-YUDEN(HK1608)
L3
15nH
15nH
TAIYO-YUDEN(HK1608)
L4
12nH
10nH
TAIYO-YUDEN(HK1608)
L5
5.6nH
4.7nH
TAIYO-YUDEN(HK1608)
L6
100nH
33nH
TAIYO-YUDEN(HK1608)
L7
47nH
15nH
TAIYO-YUDEN(HK1608)
C1
1000pF
560pF
MURATA(GRM39)
C2
11pF
8pF
MURATA(GRM39)
C3
10pF
10pF
MURATA(GRM39)
C4
100pF
100pF
MURATA(GRM39)
C5
1000pF
1000pF
MURATA(GRM39)
C6
10pF
10pF
MURATA(GRM39)
C7
100pF
100pF
MURATA(GRM39)
C8
1000pF
1000pF
MURATA(GRM39)
R1
390
Ω
390
Ω
TAMA Electronics(CRG16G)
R2
1K
Ω
1K
Ω
TAMA Electronics(CRG16G)
3
1
2
5
6
4
LOIN
LO
RF
RFIN
GND
BPC
IFOUT
VLO
IF
VMIX
VLO
L3
L4
L1
L2
C1
L6
L7
L5
C5
C2
C6
C7 C8
R1
C3
C4
Zo=50
Ω
Zo=50
Ω
Zo=50
Ω
R2
