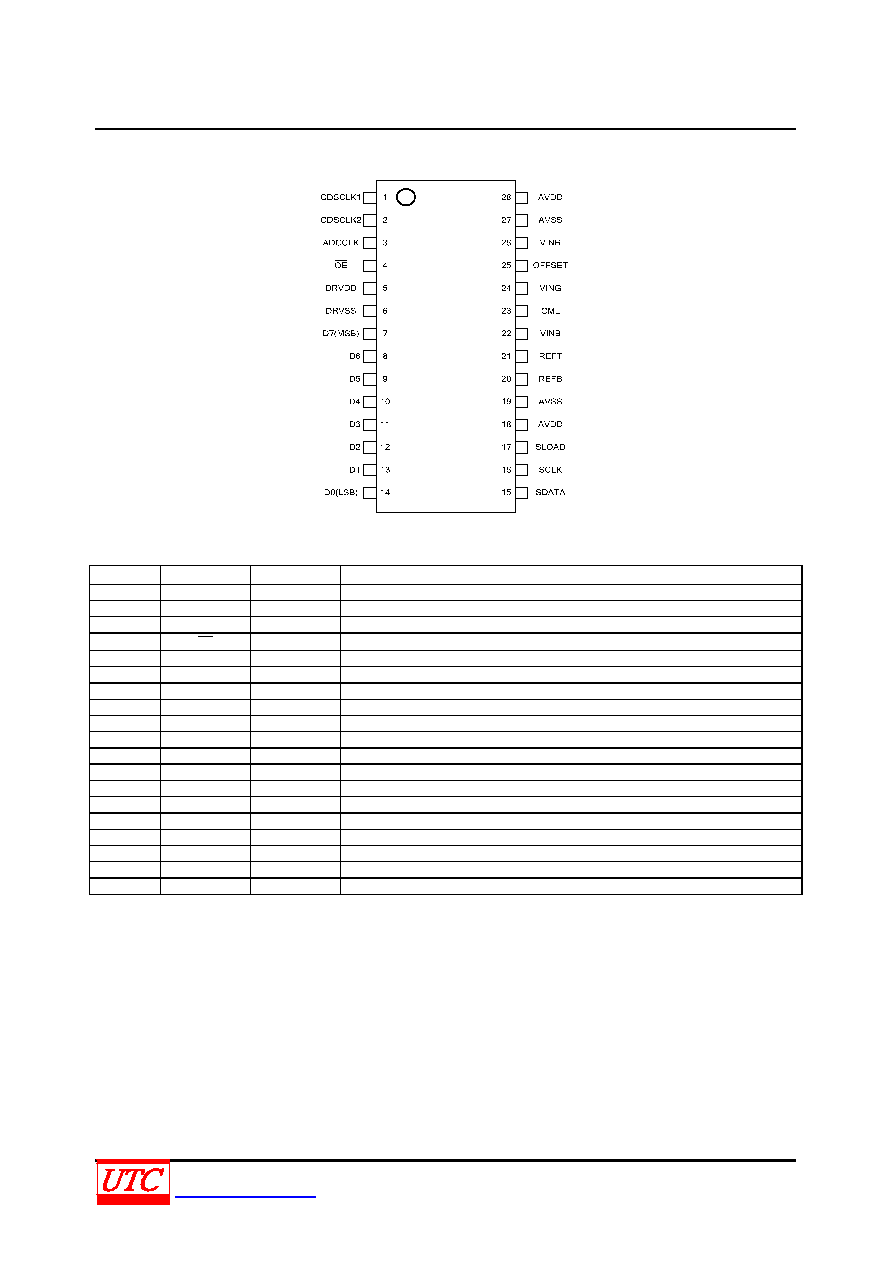

PIN CONFIGURATIONS

PIN DESCRIPTION

PIN NO.

PIN NAME

PIN TYPE

PIN DESCRIPTION

1

CDSCLK1

DI

CDS reference clock pulse input

2

CDSCLK2

DI

CDS data clock pulse input

3

ADCCLK

DI

A/D sample clock input for 3-channels mode

4

OE

DI

Output enable, active low

5

P

Digital driver power

6

P

Digital driver ground

7~14

D7~D0

DO

Digital data output

15

SDATA

DI/DO

Serial data input/output

16

SCLK

DI

Clock input for serial interface

17

SLOAD

DI

Serial interface load pulse

18,28

P

Analog supply

19,27

P

Analog ground

20

REFB

AO

Reference decoupling

21

REFT

AO

Reference decoupling

22

VINB

AI

Analog input, blue

23

CML

AO

Internal reference output

24

VING

AI

Analog input, green

25

OFFSET

AO

Clamp bias level decoupling

26

VINR

AI

Analog input, red

Note: I=input, O=output, I/O=input/output, P=power supply, G=ground
