ML2035
4
ELECTRICAL CHARACTERISTICS (Continued)
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
LOGIC (Continued)
VOL
Output Low Voltage
IOL = -2mA
0.4
V
VOH
Output High Voltage
IOH = 2mA
4.0
V
tSCK
Serial Clock On/Off Period
100
ns
tDS
SID Data Setup Time
50
ns
tDH
SID Data Hold Time
50
ns
tLPW
LATI Pulse Width
50
ns
tLH
LATI Hold Time
50
ns
tLS
LATI Setup Time
50
ns
SUPPLY
ICC
VCC Current
No Load, VCC = 5.5V
5.5
mA
No Load, Power Down Mode
2
mA
ISS
VSS Current
No Load, VCC = 5.5V, VSS = -5.5V
-3.5
mA
No Load, Power Down Mode
-100
µA
Note 1:
Limits are guaranteed by 100% testing, sampling, or correlation with worst case test conditions.

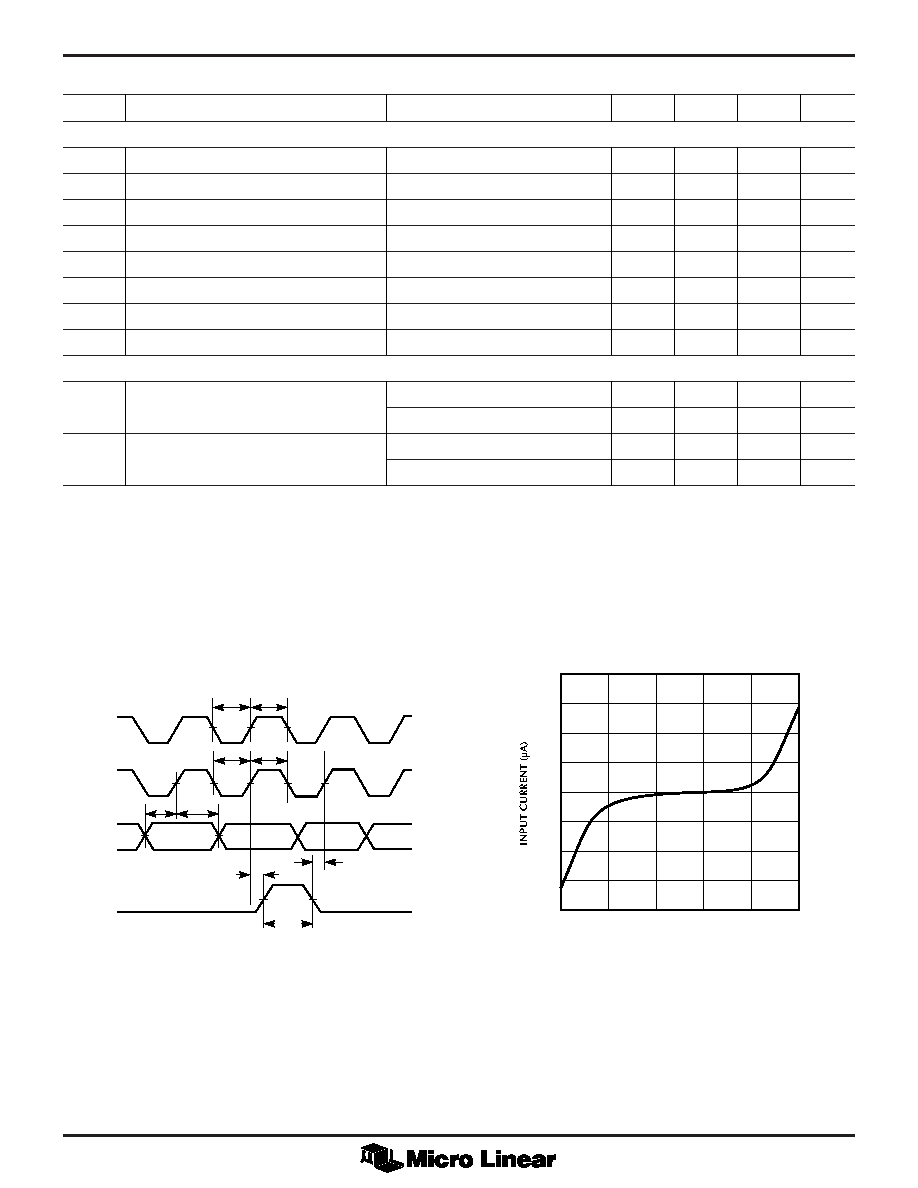

Figure 1. Serial Interface Timing.
Figure 2. CLK IN Input Current vs. Input Voltage.
100
75
50
25
0
-25
-50
-75
-100
INPUT VOLTAGE (V)
01
3
5
4
2
CLK IN
SCK
SID
LATI
tLPW
tLS
tLH
tDS
tDH
tSCK
tSCK
tCKI
tCKI
