UNISONIC TECHNOLOGIES CO., LTD

MBR2060C

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R601-083.D

20A SCHOTTKY BARRIER

RECTIFIER



DESCRIPTION

The UTC MBR2060C is a 20A schottky barrier rectifier, it

uses UTC’s advanced technology to provide the customers with

high surge capability, high efficiency, high current capability, low

power loss and low forward voltage drop, etc.

The UTC MBR2060C is suitable for free wheeling and

polarity protection, etc.

* High surge capability

* High efficiency

* High current capability

* Low power Loss and low forward voltage drop



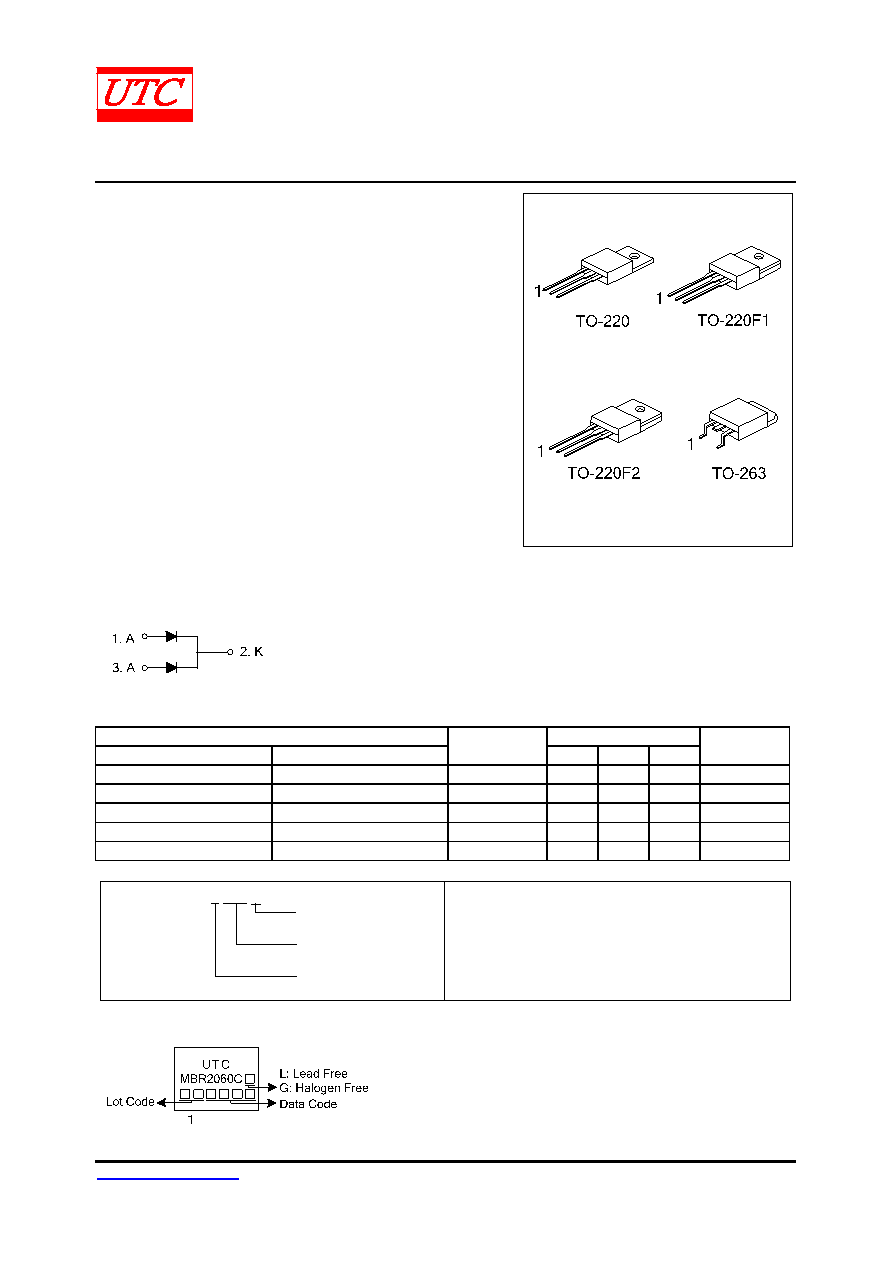

SYMBOL



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

MBR2060CL-TA3-T

MBR2060CG-TA3-T

TO-220

A

K

A

Tube

MBR2060CL-TF1-T

MBR2060CG-TF1-T

TO-220F1

A

K

A

Tube

MBR2060CL-TF2-T

MBR2060CG-TF2-T

TO-220F2

A

K

A

Tube

MBR1060CL-TQ2-T

MBR1060CG-TQ2-T

TO-263

A

K

A

Tube

MBR1060CL-TQ2-R

MBR1060CG-TQ2-R

TO-263

A

K

A

Tape Reel

Note: Pin Assignment: A: Anode

K: Cathode

(1) T: Tube, R: Tape Reel

(2) TA3: TO-220, TF1: TO-220F1, TF2: TO-220F2

TQ2: TO-263

(3) L: Lead Free, G: Halogen Free and Lead Free

MBR2060CL-TA3-T

(1)Packing Type

(2)Package Type

(3)Green Package



MARKING
