STCF07
Pin configuration
Doc ID 16757 Rev 3
5/26
2
Pin configuration

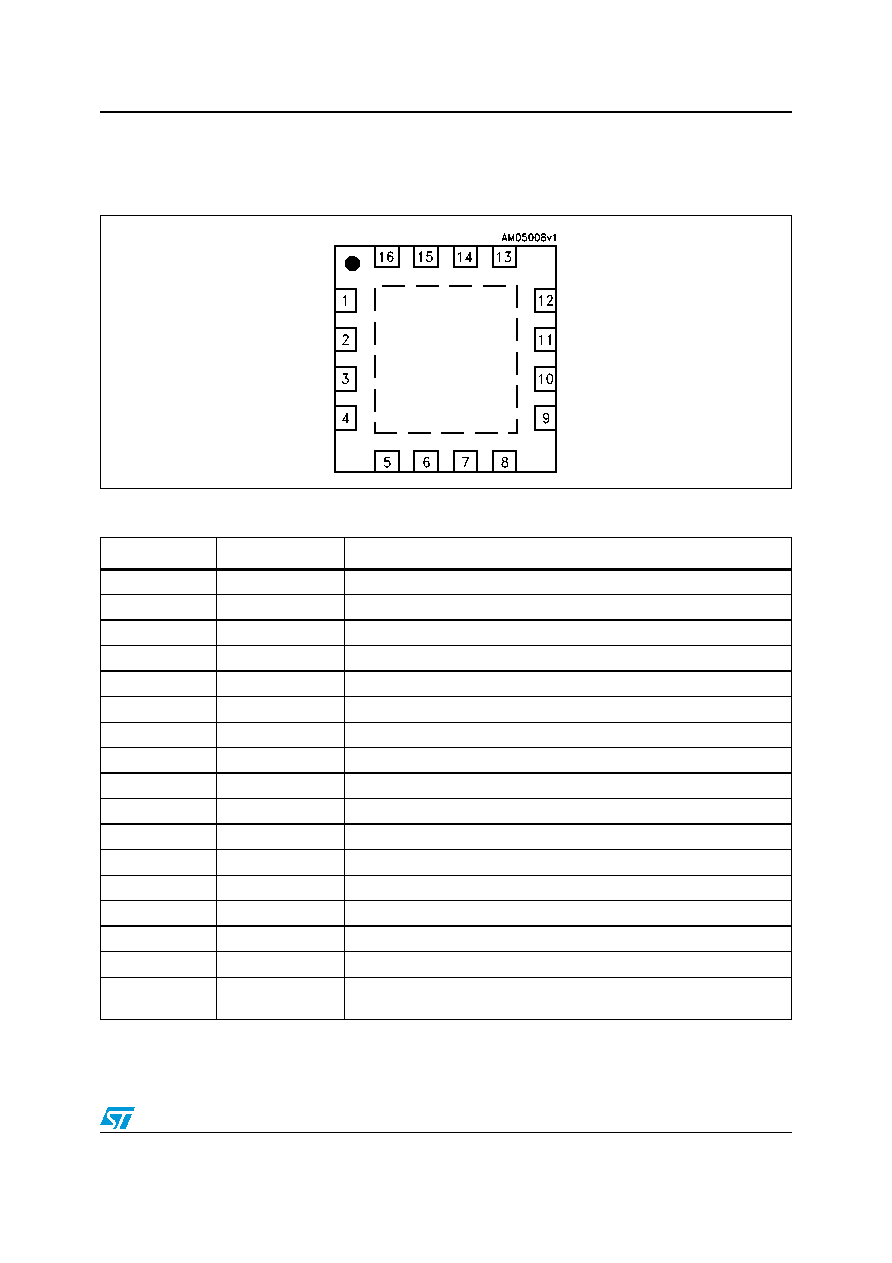

Figure 2.
STCF07 pin connections (top view)
Table 2.
STCF07 pin description
Pin n°
Symbol
Description
1
VLX2
Inductor VLX2 connection
8RX
RX resistor connection
2
NTC
NTC resistor connection
3
VOUT
Output voltage
4
FB1
Feedback pin [ILED*(RHC+RLC)]
5FB2
RTR bypass
6
FB2S
Feedback pin [ILED*RHC]
14
GND
Signal ground
13
CSEL
Current selection
7EN
Enable
16
FAULT
Diagnostic
9
PVBAT
Power supply voltage
10
VBAT
Supply voltage
11
VLX1A
Inductor VLX1 connection
12
VLX1B
Inductor VLX1 connection
15
PGND
Power ground
Exposed pad
PGND
To be connected to the PCB ground plane for optimal electrical and
thermal performance
