This is information on a product in full production.

March 2012

Doc ID 022794 Rev 1

1/28

28

VIPER06

Fixed-frequency VIPer™ plus family

Datasheet — production data

Features

■ 800 V avalanche rugged power section

■ PWM operation with frequency jittering for low

EMI

■ Operating frequency:

– 30 kHz for VIPER06Xx

– 60 kHz for VIPER06Lx

– 115 kHz for VIPER06Hx

■ No need for an auxiliary winding in low-power

applications

■ Standby power < 30 mW at 265 VAC

■ Limiting current with adjustable set point

■ On-board soft-start

■ Safe auto-restart after a fault condition

■ Hysteretic thermal shutdown

Applications

■ Replacement of capacitive power supplies

■ Home appliances

■ Power metering

■ LED drivers

Description

The VIPER06 is an offline converter with an 800 V

avalanche rugged power section, a PWM

controller, a user-defined overcurrent limit, open-

loop failure protection, hysteretic thermal

protection, soft startup and safe auto-restart after

any fault condition. The device is able to power

itself directly from the rectified mains, eliminating

the need for an auxiliary bias winding. Advanced

frequency jittering reduces EMI filter cost. Burst

mode operation and the device’s very low power

consumption both help to meet the standards set

by energy-saving regulations.

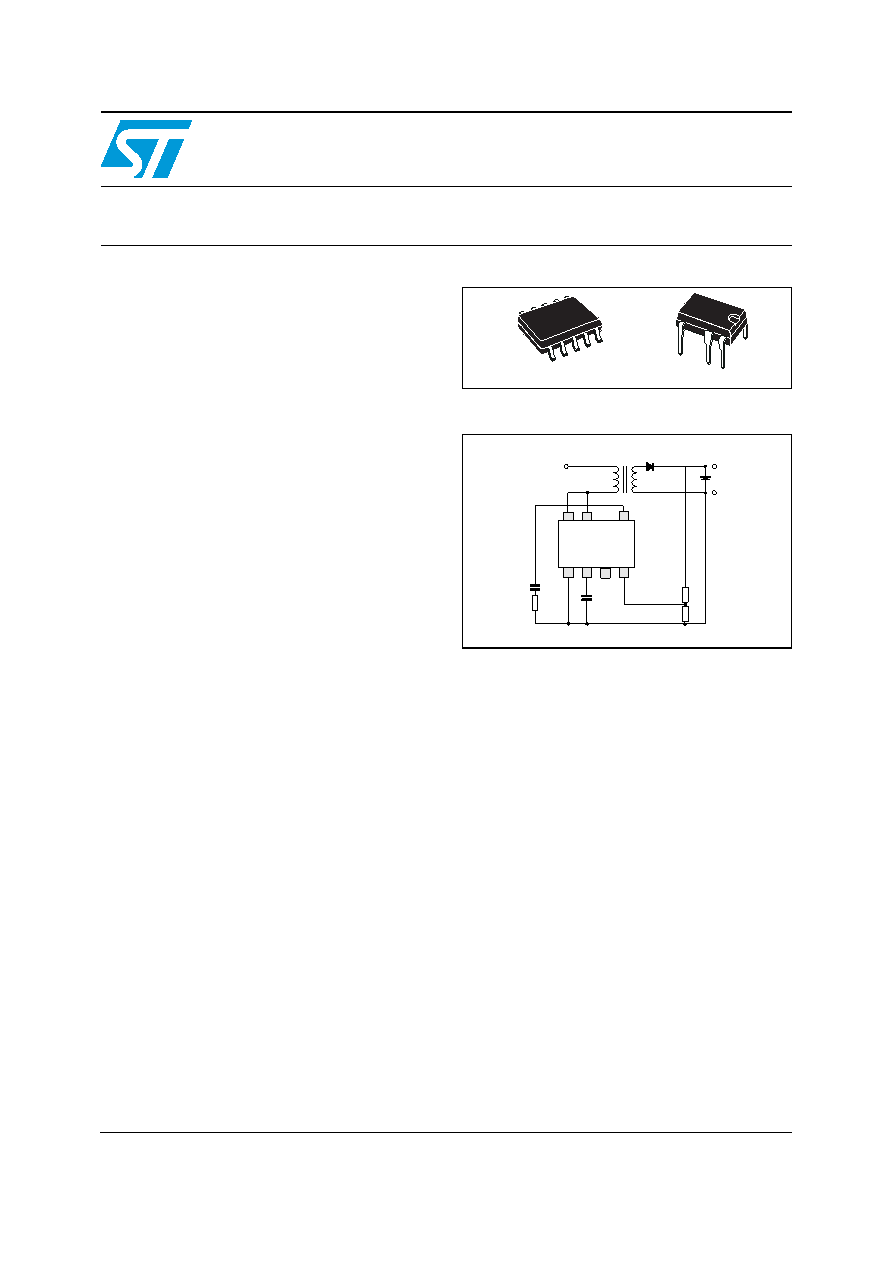

Figure 1.

Typical application

DIP-7

SSO10

www.st.com
