LP38853
www.ti.com
SNVS335E – DECEMBER 2006 – REVISED NOVEMBER 2015

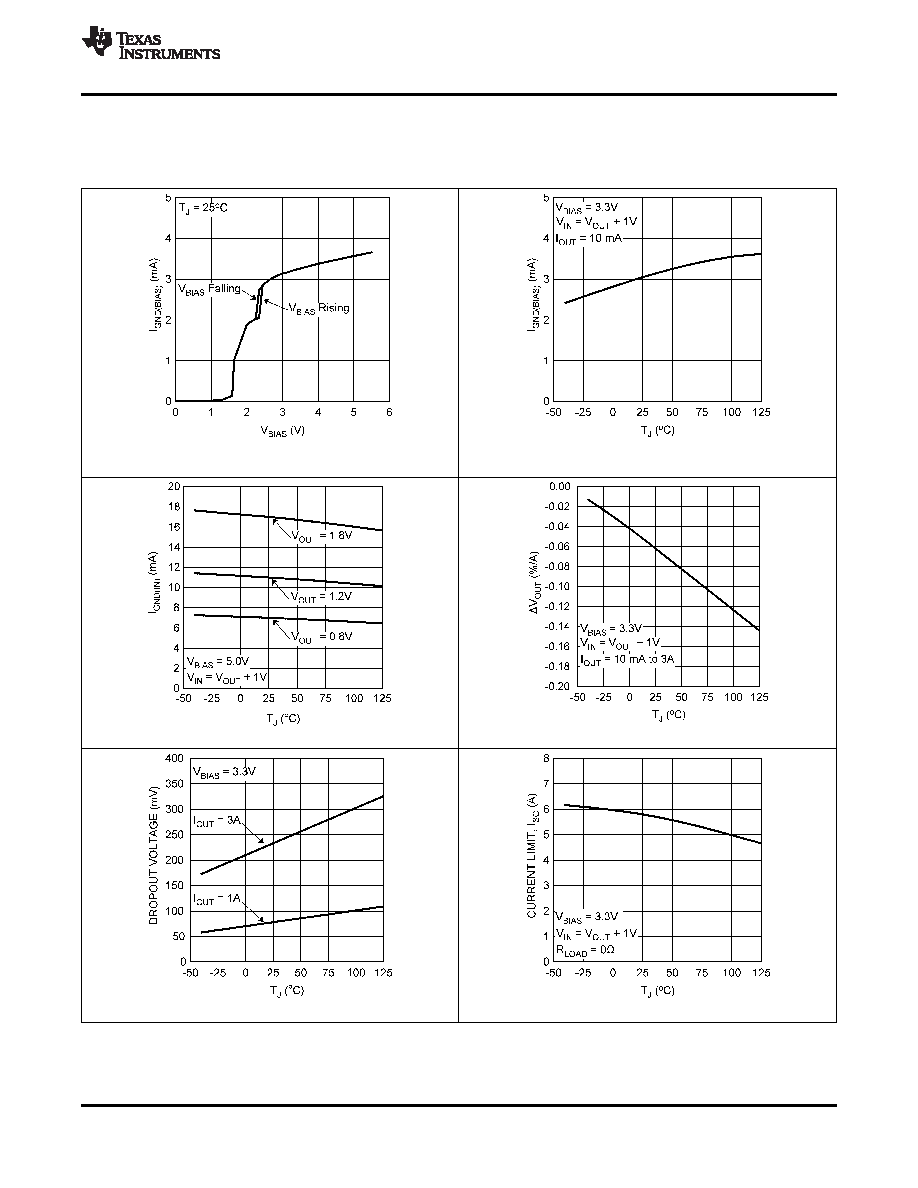

6.7 Typical Characteristics
Refer to the Simplified Schematic. Unless otherwise specified: TJ = 25°C, R1 = 1.4 kΩ, R2 = 1 kΩ, CFF= 0.01 µF, VIN =
VOUT(NOM) + 1 V, VBIAS = 3 V, IOUT = 10 mA, CIN = 10-µF ceramic, COUT = 10-µF ceramic, CBIAS = 1-µF ceramic, CSS = open.
Figure 1. BIAS Ground Pin Current (IGND(BIAS)) vs VBIAS
Figure 2. BIAS Ground Pin Current (IGND(BIAS)) vs
Temperature
Figure 4. Load Regulation vs Temperature
Figure 3. IN Ground Pin Current vs Temperature
Figure 5. Dropout Voltage (VDO) vs Temperature
Figure 6. Output Current Limit (ISC) vs Temperature
Copyright © 2006–2015, Texas Instruments Incorporated
Submit Documentation Feedback
7
Product Folder Links: LP38853
