LP38853
SNVS335E – DECEMBER 2006 – REVISED NOVEMBER 2015
www.ti.com

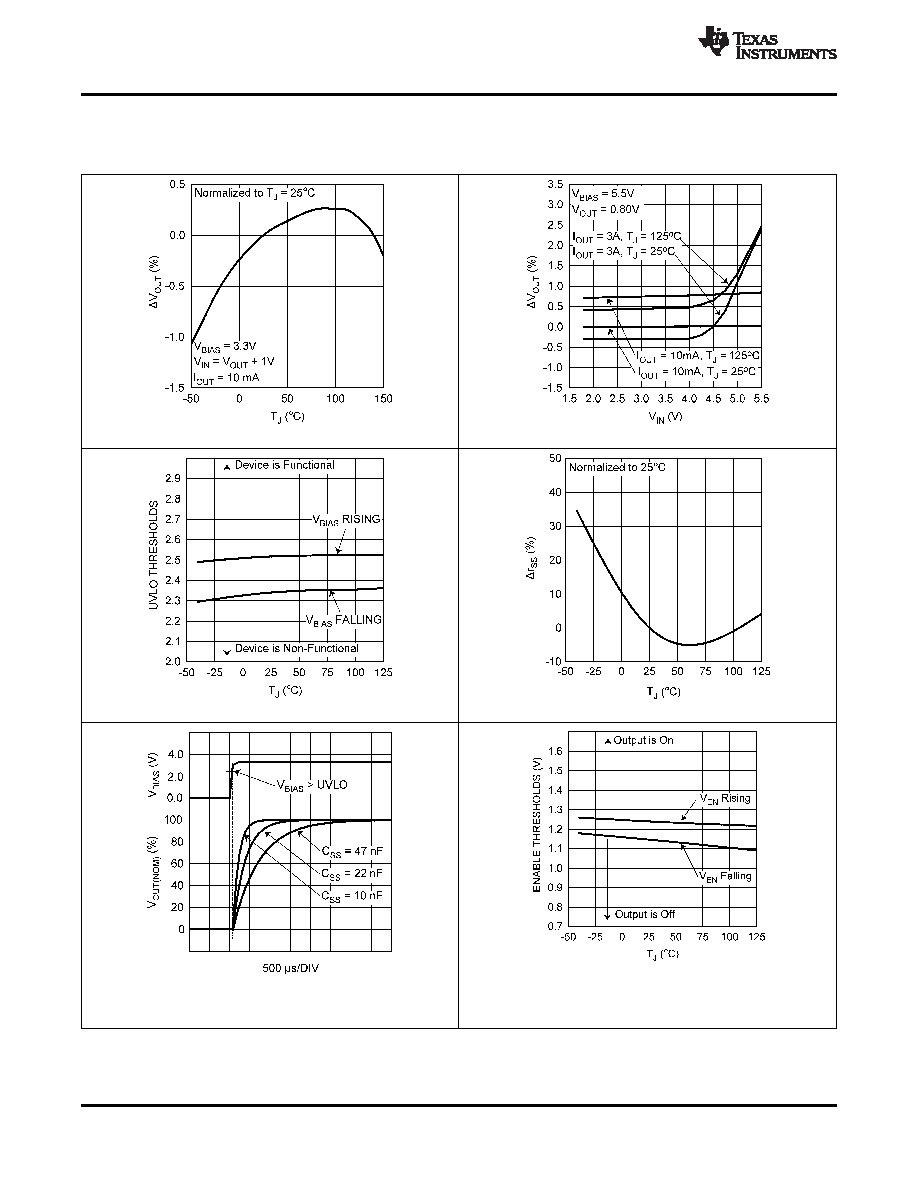

Typical Characteristics (continued)
Refer to the Simplified Schematic. Unless otherwise specified: TJ = 25°C, R1 = 1.4 kΩ, R2 = 1 kΩ, CFF= 0.01 µF, VIN =
VOUT(NOM) + 1 V, VBIAS = 3 V, IOUT = 10 mA, CIN = 10-µF ceramic, COUT = 10-µF ceramic, CBIAS = 1-µF ceramic, CSS = open.
Figure 7. VOUT vs Temperature
Figure 8. VOUT vs VIN
Figure 9. UVLO Thresholds vs Temperature
Figure 10. Soft-Start RSS Variation vs Temperature
10 nF to 47 nF
Figure 11. VOUT vs CSS
Figure 12. Enable Thresholds (VEN) vs Temperature
8
Submit Documentation Feedback
Copyright © 2006–2015, Texas Instruments Incorporated
Product Folder Links: LP38853
