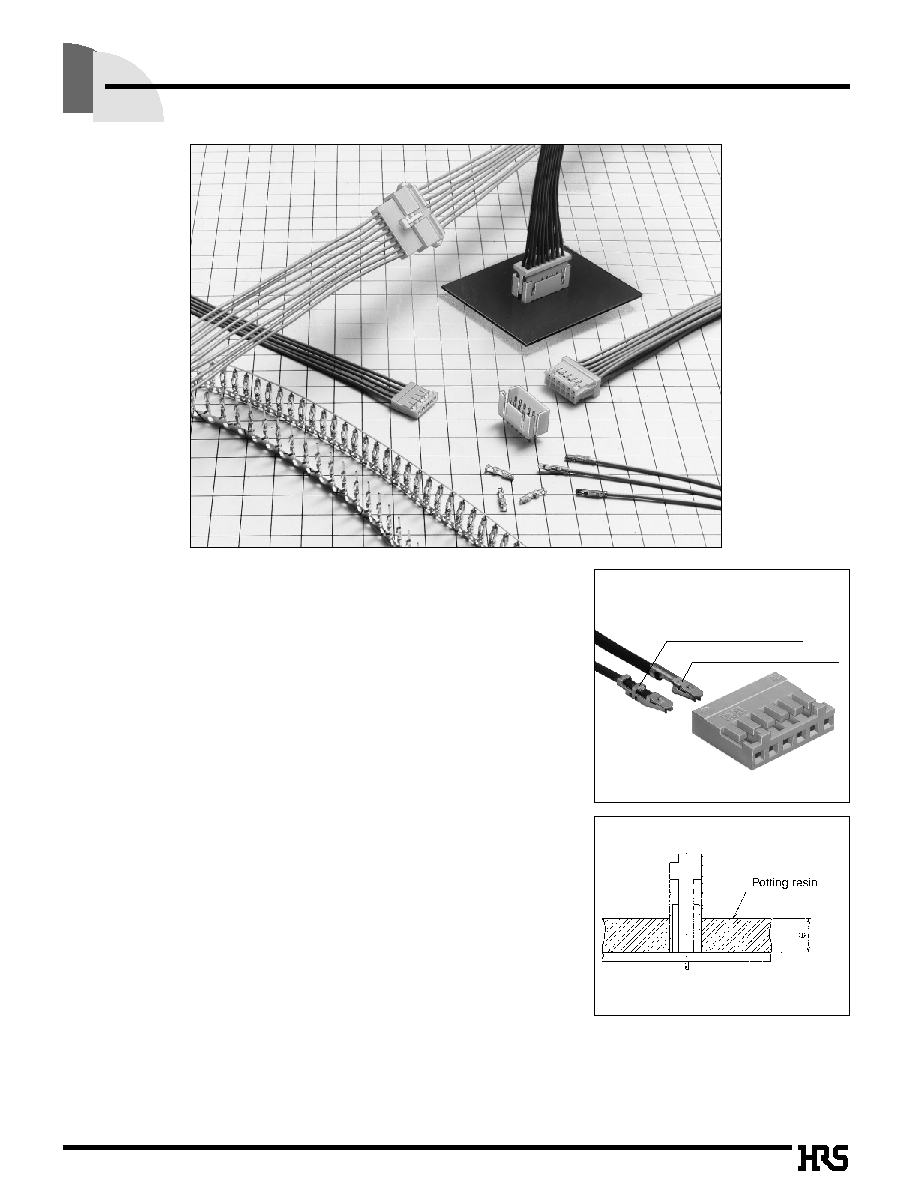

B153

2.5mm Pitch Connector for Discrete Wire Connection (Product Compliant with UL/CSA Standard)

DF1B Series

sFeatures

1. New Insulation Displacement and Crimping Ideas

This connector is a new type to insert the ID contacts in the case. Using this

method, the following merits can be gained.

1 By using the ID contact and crimping contact together, different current

capacity cables can be mixed in one case.

2 After connection, the contact can be replaced in excellent maintainability.

3 Because the insulation displacement area is protected by the case, high

reliability can be assured.

4 Since the insulation displacement process can be performed only by

replacing the applicator of the existing crimping machine, no expensive

machine for insulation displacement is required.

2. Potting Header Available

The high profile header is also available, corresponding to the board potting

process (sealed with resin) as waterproof measures.

3. Broad Variations

The single row and double row contacts are aligned for "Board to Cable" and

"In-line" series, respectively, while standard tin and gold plating products are

available.

(Refer to the applicable combination pattern on next page.)

sApplications

Business equipment, particularly including the copy machine and printer

Potting status

Figure 2

Cables with different current capacities

can be mixed in one case

Figure 1

ID terminal (AWG24, 26, 28)

Crimping contact (AWG20 to 30)
