GT14-2P/S-R 데이터시트(PDF) 2 Page - Hirose Electric

부품명 GT14-2P/S-R
상세설명  Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  HIROSE [Hirose Electric]
홈페이지  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

GT14-2P/S-R 데이터시트(HTML) 2 Page - Hirose Electric

  GT14-2P/S-R Datasheet HTML 1Page - Hirose Electric GT14-2P/S-R Datasheet HTML 2Page - Hirose Electric GT14-2P/S-R Datasheet HTML 3Page - Hirose Electric GT14-2P/S-R Datasheet HTML 4Page - Hirose Electric GT14-2P/S-R Datasheet HTML 5Page - Hirose Electric GT14-2P/S-R Datasheet HTML 6Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out

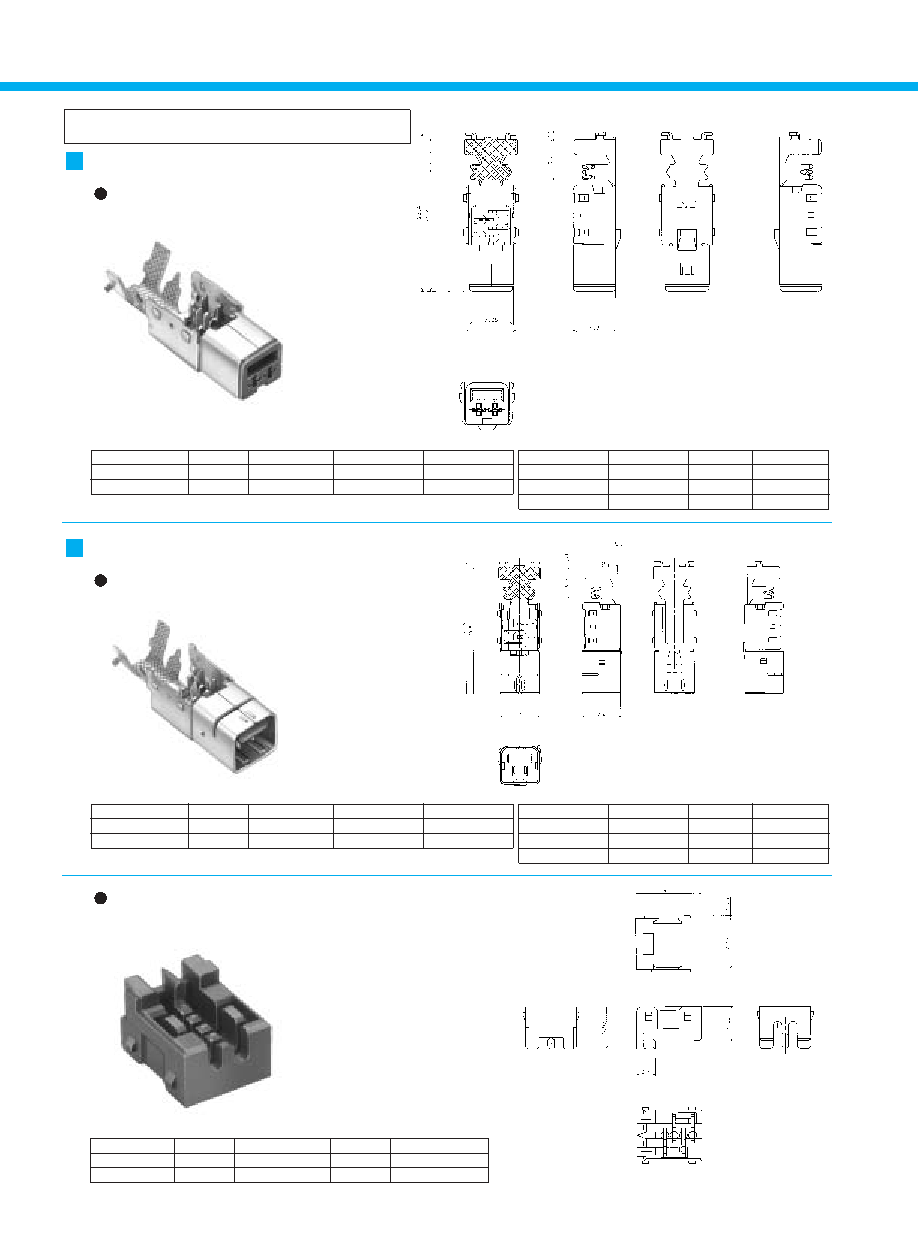

 2 / 6 page
background image
2
CL No.
764-0007-6
Material
PBT
PBT
Color
Dark gray
Dark gray
Outer Diameter
1.3 mm
1.1 mm
Part Number
GT14-1.3PT
GT14-1.1PT
Part Number
GT14-20/3.8-4.8SC
GT14-22/3.4-4.4SC
Terminals for 2-Conductor Shielded Cable
CL No.
764-0013-9
Wire Size
0.5 mm
2
0.3 mm
2
Inner Insulation Diameter
3.5 to 3.7 mm
3.1 to 3.3 mm
Outer Diameter
4.6 to 5.0
4.2 to 4.6
Item
Material
Finish
Color
Insulator
PBT
----
Dark gray
IDC Terminal
Beryllium Copper Tin plating
----
Outer Terminal
Brass
Tin plating
----
Part Number
GT14-20/3.8-4.8PC
GT14-22/3.4-4.4PC
CL No.
764-0012-6
Wire Size
0.5 mm
2
0.3 mm
2
Inner Insulation Diameter
3.5 to 3.7 mm
3.1 to 3.3 mm
Outer Diameter
4.6 to 5.0
4.2 to 4.6
Item
Material
Finish
Color
Insulator
PBT
----
Dark gray
IDC Terminal
Beryllium Copper Tin plating
----
Outer Terminal
Brass
Tin plating
----
F Connectors
F Terminals
M Terminals
M Terminals
Protector (Used with both male and female)
