TS431

Taiwan Semiconductor

Document Number: DS_P0000235

Version: H15

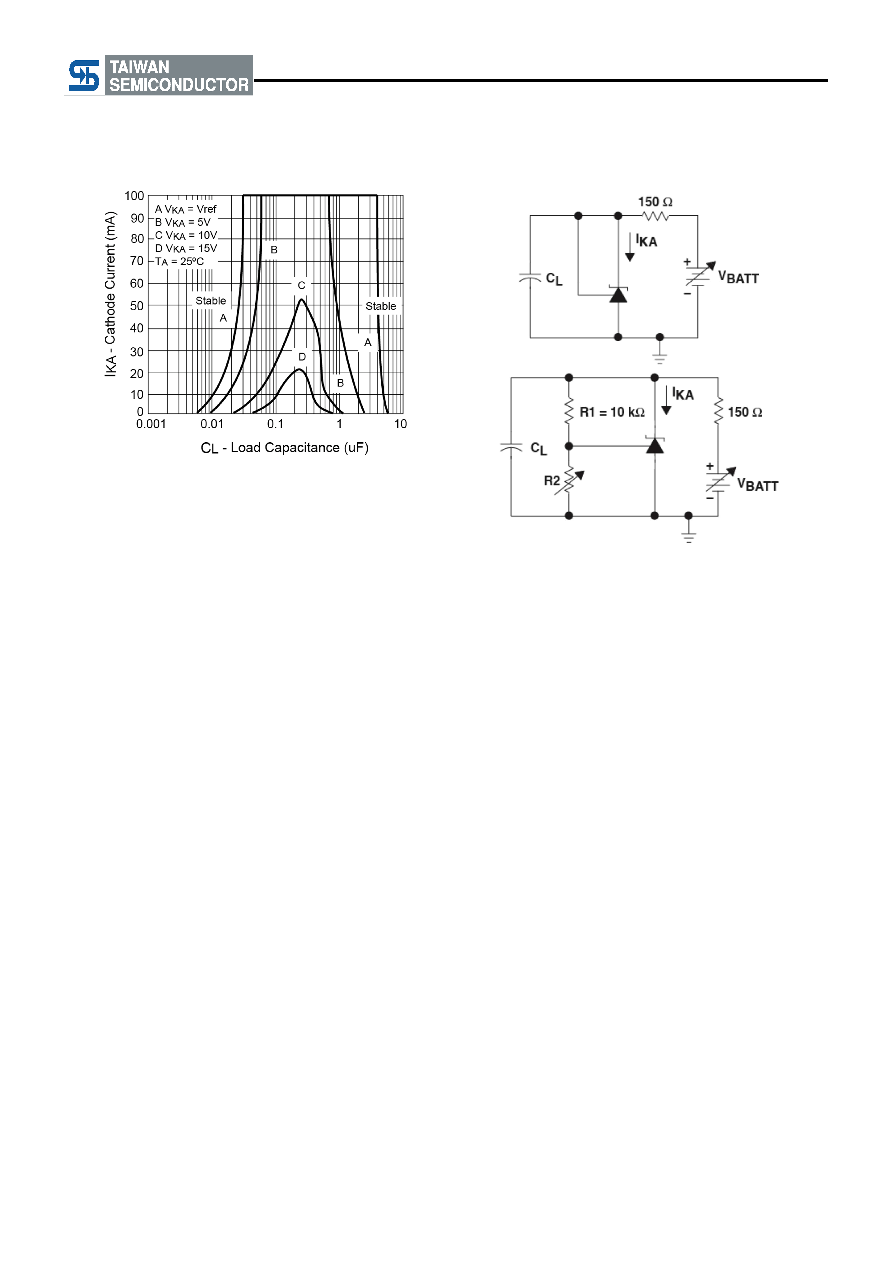

TYPICAL PERFORMANCE CHARACTERISTICS (CONTINUE)

The areas under the curves represent conditions that

may cause the device to oscillate. For curves B, C, and

D, R2 and V+ were adjusted to establish the initial VKA

and IKA conditions with CL=0. VBATT and CL then were

adjusted to determine the ranges of stability.

Test Circuit for Curve B, C and D

Figure 15. Reference Impedance vs. Frequency
