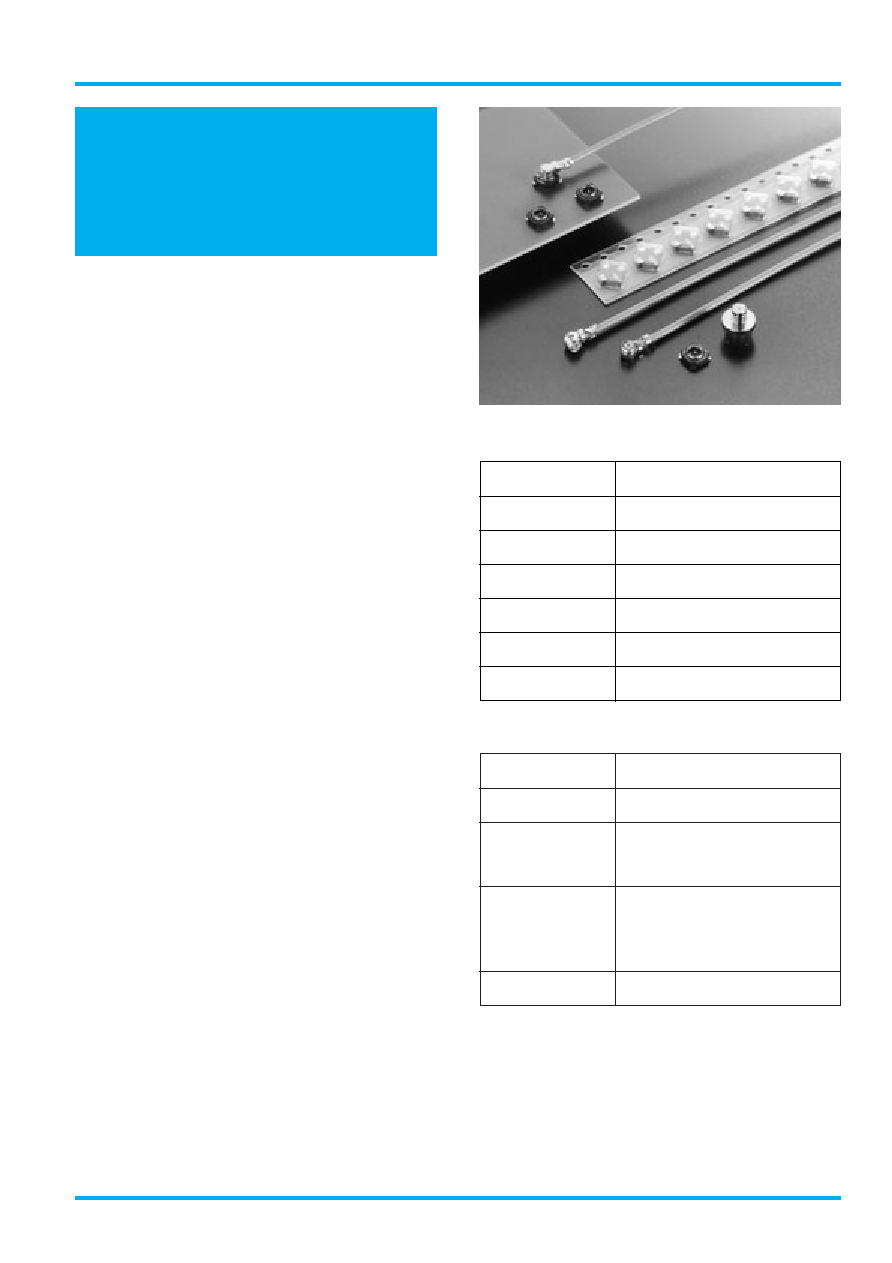

COAXIAL CONNECTORS

CV10 Series

■ FREQUENCY RANGE TO 3GHz

■ PUSH-ON COUPLING

CV10 Series

CV10 series small size coaxial connectors are ideal for high-density,

reduced size, high frequency devices.

Receptacle can be mounted in an area of 4

×4mm on board.

Low profile : 3mm high when mated with the cable plug.

Applicable frequencies : from DC up to 3GHz. High performance with

a VSWR

（voltage standing wave ratio）of 1.3 or less.

●Sure locking feeling on mating. Push-on coupling provides stable

retention.

●Two versions of board mount receptacle : SMT type enabling

automatic mount and through-hole type.

SMT connectors can be supplied in embossed taping.

●Extra-fine coaxial cable（1.3mm in outer diameter ）with double

thread outer conductor excellent in flexibility.

Provides a higher degree of freedom in wiring. Most suitable for

high density packaging.

●Applications : Cordless Phone, Mobile Phone, GPS,

Various Communications Equipment,

Radio Terminal for Personal Computer,

High Frequency Measuring Instruments

*GPS（GLOBAL POSITIONING SYSTEM/CAR NAVIGATION）

For the cable application type, harnessed connectors which satisfy

your specification are supplied.

We can also provide connectors and cables other than those listed in

this catalog. For details, please consult us.

■SPECIFICATIONS

Characteristic Impedance

50Ω

DC to 3GHz

AC500Vr.m.s.（1minute）

500 megohms min.（DC500V）

Center Contacts : 30 milliohms max.

Outer Contacts : 15 milliohms max.

1.3 max.（DC to 3GHz）

0.8D EQUIVALENT（SPECIAL）

Frequency Range

D. W. Voltage

Insulation Resistance

Contact Resistance

V. S. W. R.

Applicable Cables

■MATERIALS/FINISHES

Description

Materials/Finishes

Copper Alloy/Gold Plated over Nickel

Copper Alloy : Receptacle /Tin Plated

Copper Alloy : Plug/Nickel Plated

Center Contacts

Outer Contacts

Receptacle/Glass-filled PPS

Cable Plug/Glass-filled PBT

Through-hole Plug/PTFE

Insulator

Shell

Copper Alloy /Tin Plated
