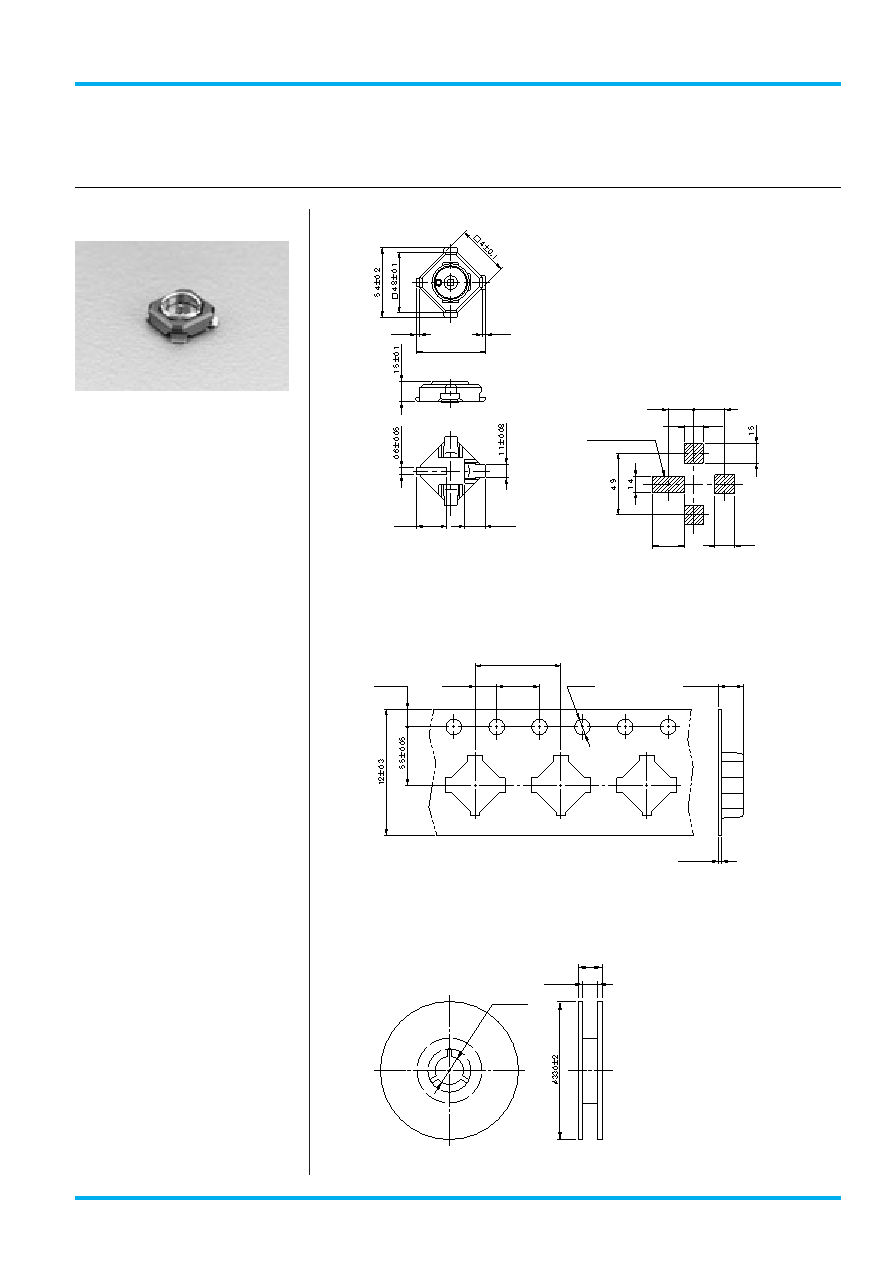

Dimensions in millimeters
73
COAXIAL CONNECTORS
CV10 Series
■RECEPTACLE
SMT Type
Intermatable with PLUG RECEPTACLE & PLUG
（74 Page）
■Straight
Part Number
：CV10-RP-M-0
PC BOARD LAYOUT
・MOUNTING SIDE（REF.）
（PC BOARD THICKNESS : 0.8mm ）
REEL CONFIGULATION（REF.）
5.4±0.2
（0.3）
（0.3）
（2.4）
（1.56）
FOR
SIGNAL CONTACT
2.45
1.95
1.4
1.5
2.5
2.3±0.15
0.3±0.05
φ1.5
4±0.1
8±0.1
2±0.05
1.75±0.1
＋0.1
 0
■ENBOSSED TAPE REELS
Part Number
：CV10-RP-M-0-E1000
φ13±0.2
14±0.15
20±0.2
（Note）1,000 connectors/1 reel
