Waterproof I/O Connector to Make Direct Connection with SFP

FO-BD2 Series

Receptacle

Waterproof Cap

for receptacle

Plug

<<Outline>>

The FO-BD2 Series connector is a waterproof I/O connector that can mate

directly with the on-board SFP transceiver and modular jack inside the devices.

The FO-BD2 Series connector has a superior environmental resistance

performance and is ideal for use in a wide range of outdoor applications such

as base stations of mobile phones and communication devices.

 Possible to connect directly to on-board SFP transceivers, modular jacks

and others.

 Highly flexible and compatible connections with various types of SFP

transceivers, modular jacks and others.

 Assembly of Plug Harnesses can be completed on site as plug can be built-

in to existing harnesses.

 Dual lock plug method prevents excessive load on the connections of the

inner connector during operation.

 Possible to replace connector as the panel attachment is compatible with

TE manufactured FullAXS.

 Environmental resistance performance ideal for outdoor applications.

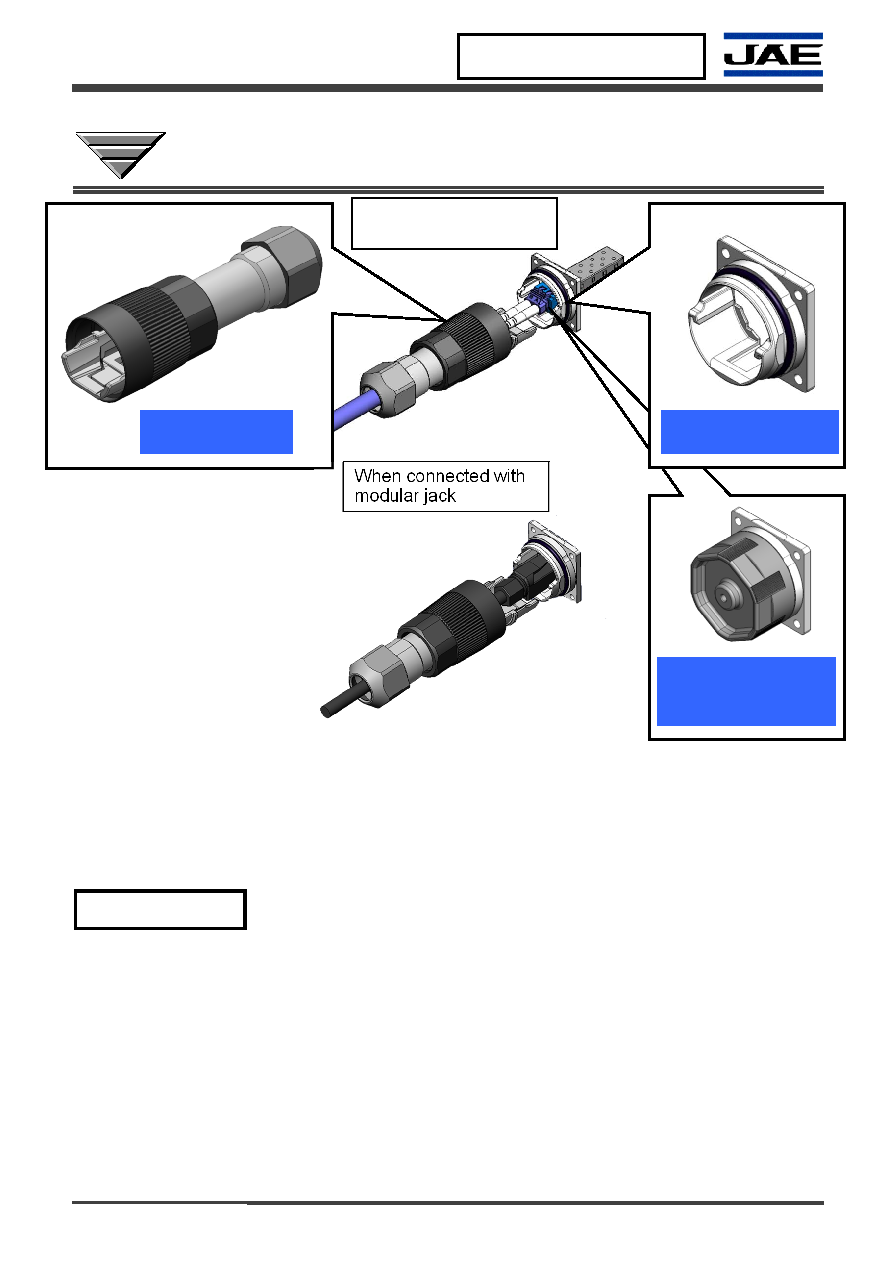

When connected with

modular jack

When connected with

SFP transceiver

Features

RoHS Compliant
