Data Sheet

AD8237

Rev. 0 | Page 15 of 28

G = 10

LOW BANDWIDTH MODE

1V/DIV

400µs/DIV

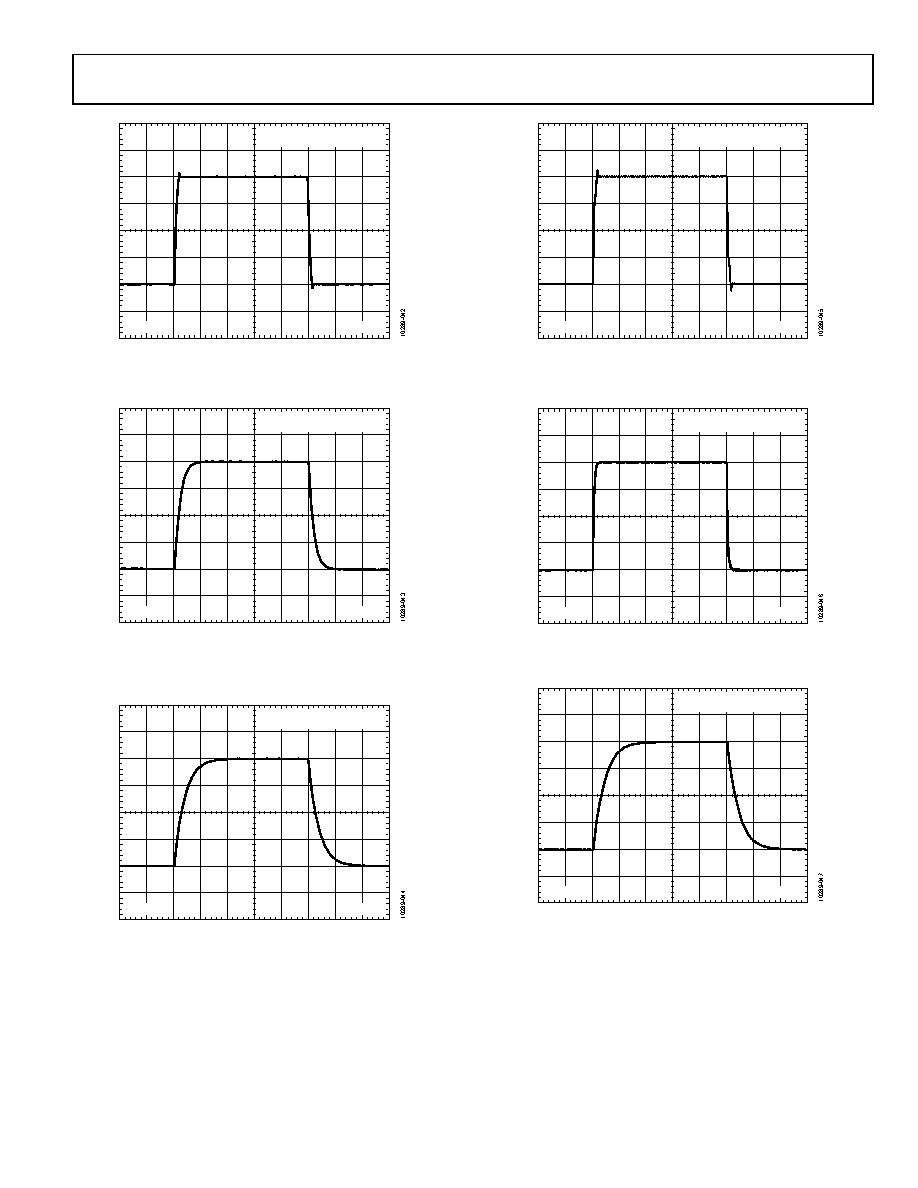

Figure 40. Large Signal Pulse Response, Low Bandwidth Mode,

G = 10, RL = 10 kΩ, CL = 10 pF

G = 100

LOW BANDWIDTH MODE

1V/DIV

400µs/DIV

Figure 41. Large Signal Pulse Response, Low Bandwidth Mode,

G = 100, RL = 10 kΩ, CL = 10 pF

G = 1000

LOW BANDWIDTH MODE

1V/DIV

2ms/DIV

Figure 42. Large Signal Pulse Response, Low Bandwidth Mode,

G = 1000, RL = 10 kΩ, CL = 10 pF

G = 10

HIGH BANDWIDTH MODE

1V/DIV

400µs/DIV

Figure 43. Large Signal Pulse Response, High Bandwidth Mode,

G = 10, RL = 10 kΩ, CL = 10 pF

G = 100

HIGH BANDWIDTH MODE

1V/DIV

400µs/DIV

Figure 44. Large Signal Pulse Response, High Bandwidth Mode,

G = 100, RL = 10 kΩ, CL = 10 pF

G = 1000

HIGH BANDWIDTH MODE

1V/DIV

400µs/DIV

Figure 45. Large Signal Pulse Response, High Bandwidth Mode,

G = 1000, RL = 10 kΩ, CL = 10 pF
