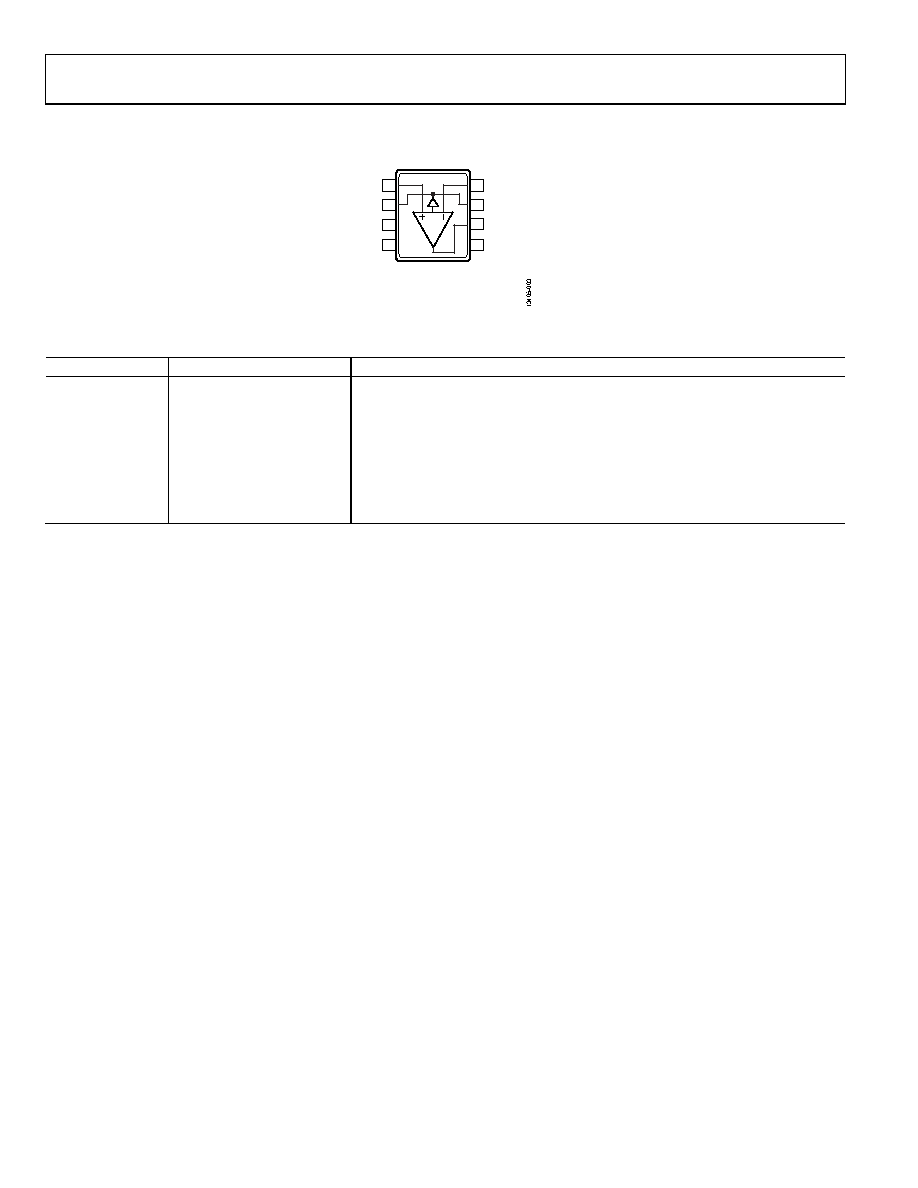

background image
ADA4530-1
Data Sheet
Rev. A | Page 10 of 50
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
+IN 1
GRD 2
IC 3
V– 4
–IN
8
GRD
7
OUT
6
V+
5
ADA4530-1
NOTES
1. IC = INTERNAL CONNECTION. THIS
PIN MUST BE CONNECTED TO V–
OR LEFT UNCONNECTED.
Figure 3. Pin Configuration
Table 6. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
+IN
Noninverting Input.
2
GRD
Guard.
3
IC
Internal Connection. This pin must be connected to V− or left unconnected.
4
V−
Negative Supply Voltage.
5
V+
Positive Supply Voltage.
6
OUT
Output.
7
GRD
Guard.
8
−IN
Inverting Input.
