Data Sheet
ADA4530-1
Rev. A | Page 11 of 50

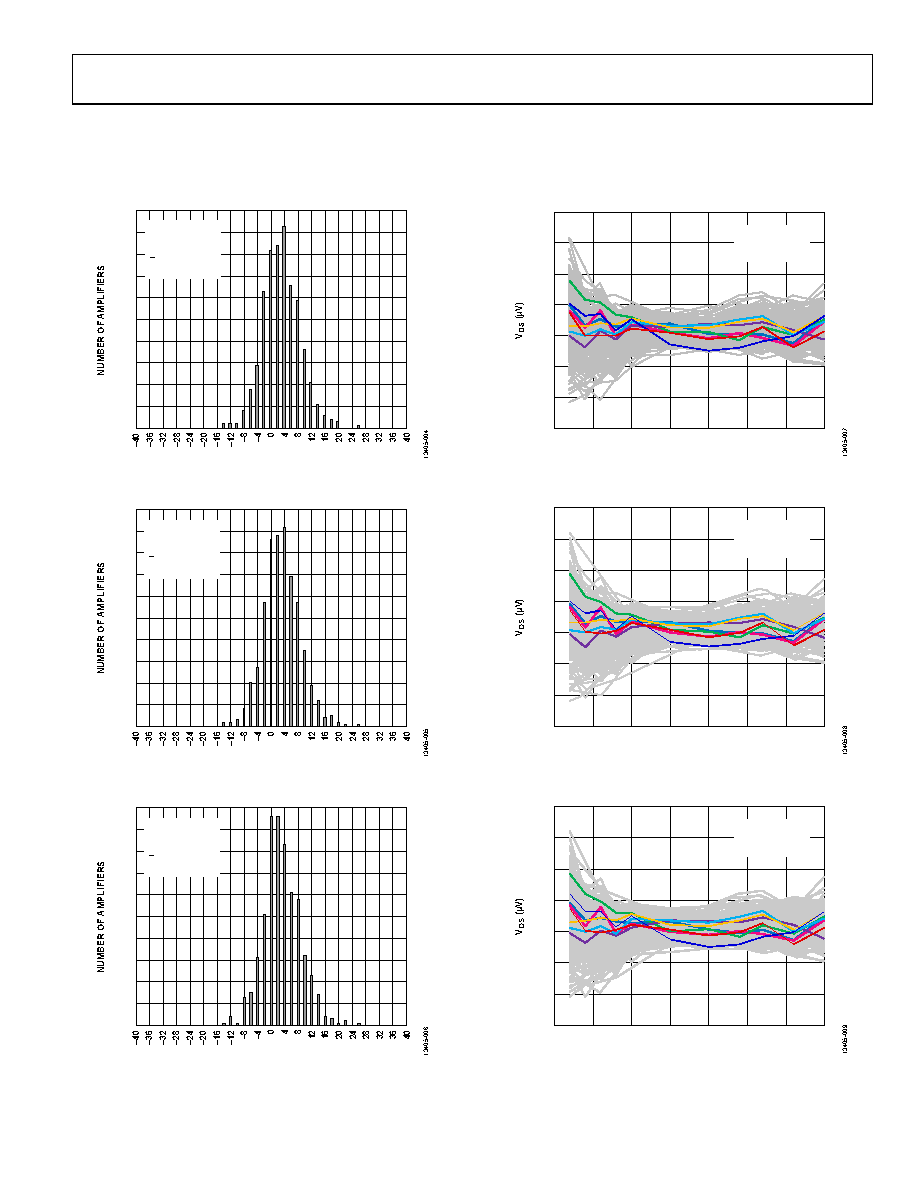

TYPICAL PERFORMANCE CHARACTERISTICS
MAIN AMPLIFIER, DC PERFORMANCE
TA = 25°C, unless otherwise noted.
100
90
80
70
60
50
40
30
20
10
0
VOS (µV)
VSY = 4.5V
VCM = VSY/2
590 CHANNELS
x = 2.31µV
σ = 5.48µV
Figure 4. Input Offset Voltage Distribution, VSY = 4.5 V
100
90
80
70
60
50
40
30
20
10
0
VOS (µV)
VSY = 10V
VCM = VSY/2
590 CHANNELS
x = 2.27µV
σ = 5.45µV
Figure 5. Input Offset Voltage Distribution, VSY = 10 V
100
90
80
70
60
50
40
30
20
10
0
VOS (µV)
VSY = 16V
VCM = VSY/2
590 CHANNELS
x = 2.15µV
σ = 5.47µV
Figure 6. Input Offset Voltage Distribution, VSY = 16 V
80
60
40
20
0
–20
–40
–60
–50
–25
0
25
50
75
100
125
TEMPERATURE (°C)
VSY = 4.5V
VCM = VSY/2
574 CHANNELS
Figure 7. Input Offset Voltage (VOS) vs. Temperature, VSY = 4.5 V
80
60
40
20
0
–20
–40
–60
–50
–25
0
25
50
75
100
125
TEMPERATURE (°C)
VSY = 10V
VCM = VSY/2
574 CHANNELS
Figure 8. Input Offset Voltage (VOS) vs. Temperature, VSY = 10 V
80
60
40
20
0
–20
–40
–60
–50
–25
0
25
50
75
100
125
TEMPERATURE (°C)
VSY = 16V
VCM = VSY/2
574 CHANNELS
Figure 9. Input Offset Voltage (VOS) vs. Temperature, VSY = 16 V
