STLC2500

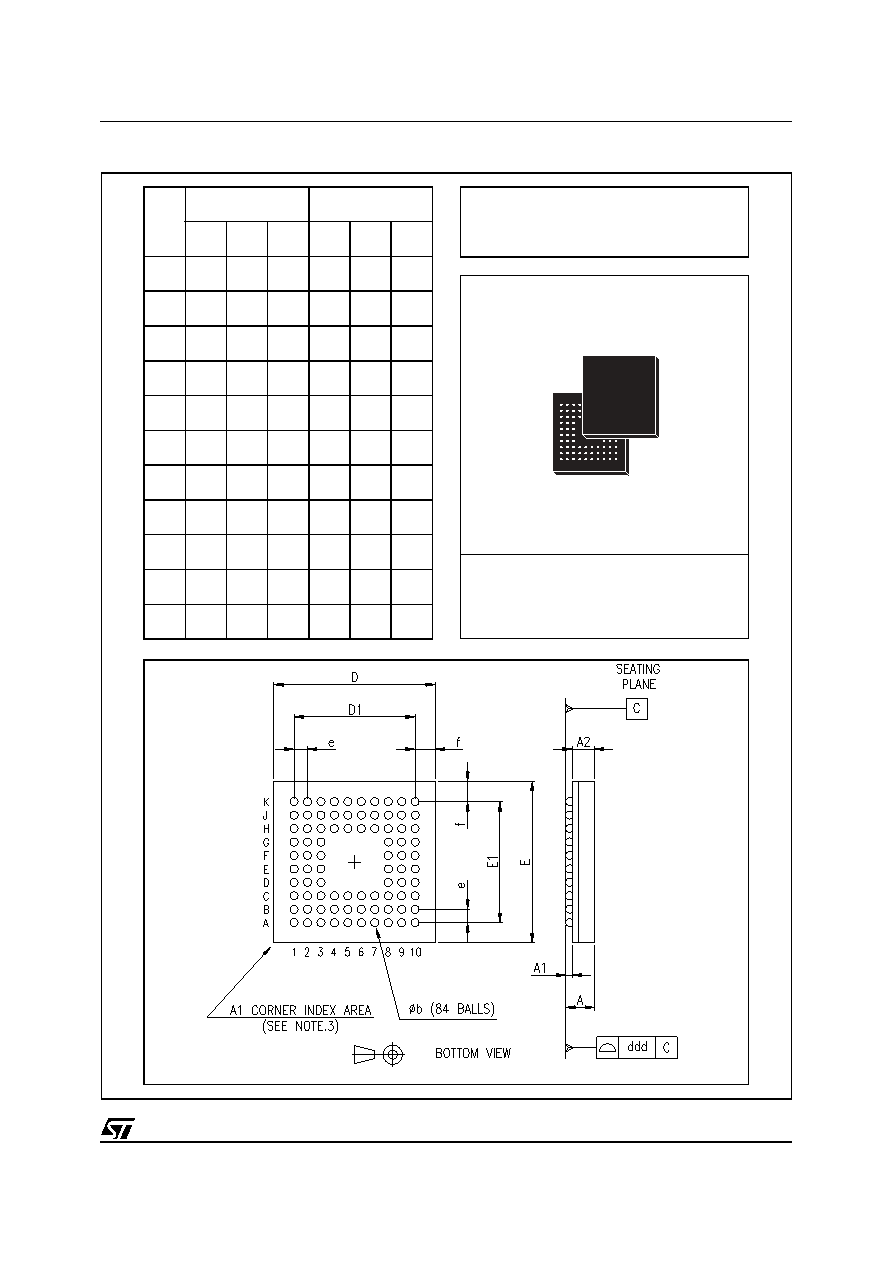

Figure 10. TFBGA84 Mechanical Data & Package Dimensions
OUTLINE AND
MECHANICAL DATA
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A
1.010
1.200
0.040
0.047
A1
0.150
0.006
A2
0.820
0.032
b
0.250
0.300
0.350
0.010
0.012
0.014
D
5.750
6.000
6.150
0.226
0.236
0.242
D1
4.500
0.177
E
5.750
6.000
6.150
0.226
0.236
0.242
E1
4.500
0.177
e
0.450
0.500
0.550
0.018
0.020
0.022
f
0.600
0.750
0.900
0.024
0.029
0.035
ddd
0.080
0.003
TFBGA84
Thin Profile Fine Pitch Ball
Grid Array
7104670 B
Body: 6 x 6 x 1.20mm
